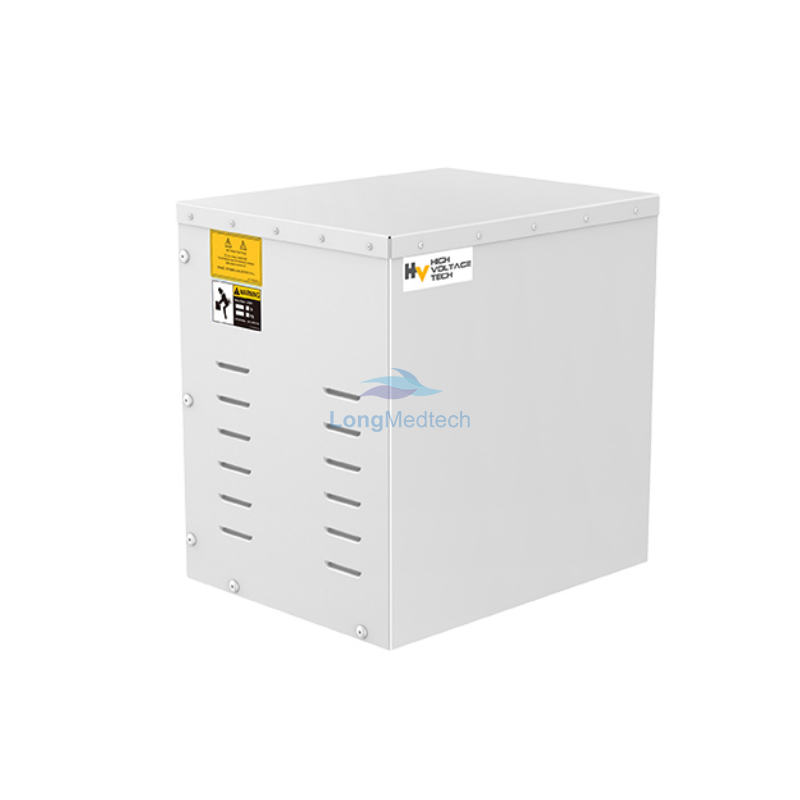

CETUS R02
CETUS R02 series is a stationary high voltage generator, designed for medical X-ray radiographic systems. The product mainly consists of control systems, inverter module and HT tank. Nominal power is up to 50kW.
Features
Unmatched size and high power density.
Short kV rising time.
Full voltage range cover mainly power supply worldwide
High voltage check mode available, easier for arcing positioning.
Regular tube calibration not required, generator automatically maintain output accuracy
Technical Parameters
| CETUS R02 | |||
| Switching Frequency | 70 - 250 kHz | ||
| Mains Power Requirement | 208 – 240 VAC，± 10%，3 Phase; 50 / 60 Hz; Momentary Power Consumption: Consumption: 55 kVA (32kW)/70 kVA (40kW)/85 kVA (50kW) | ||
| Aux. Power Requirement | 100 - 240 VAC，± 10%，1 Phase; 50 / 60 Hz; < 5 A | ||
| Radiographic Output Performance | Nom. Power: 32kW/40kW/50kW kV Range: 40 - 150 kV, variable in 1kV step mA Range: 10 –400 mA (32kW)/10 –500 mA (40kW)/10 –630 mA (50kW) ms Range: 1 - 10000ms mAs Range: 0.1 - 500 mAs/0.1 - 630 mAs | ||
| Serial Radiographic Output Performance (Optional) | kV Range: 40 - 150 kV, variable in 1kV step mA Range: 10 –400 mA (32kW)/10 –500 mA (40kW)/10 –630 mA (50kW) Pulse Per Second: 1 - 30 Pulse Width: 2 – 500 ms, not exceed 50% duty cycle, follow R’20 series Rotor Starter: Low Speed Starter | ||
| Dimension (W x D x H) | 454 mm x 359.5 mm x 461.5 mm | ||
| Net Weight | 40kg | ||
| Communication Interface | RS - 232； CAN (Optional) | ||
| Techniques | mA/ms；mAs；mAs/ms；AEC；AEC/mA；APR | ||
