Ergonomic Design

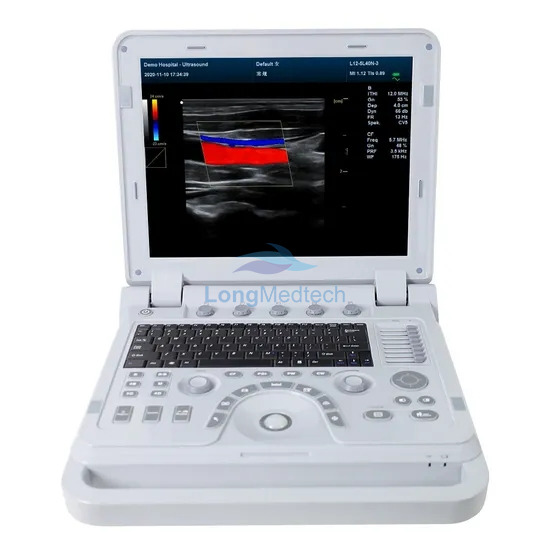

15 Inch TFT Display
Viewing Angle: 170°
Resolution: 1024X768 Pixels
7500mAh Lithium Battery
Continuous Working Time: 2 hours
Easy Operation
One Button Automatic Image Optimization
Trolley (Optional)
Echo
Advanced Technologies
Digital Beam Forming (DBF)
Real-time Dynamic Aperture (RDA)
Dynamic Receiving Focus (DRF)
Tissue Harmonic Imaging (THI)
PW Auto Trace
Trapezoid Imaging
Compound Imaging
B+CF/PDI/DPDI+PW
Full-Screen Display
Economic
The latest platform & more advanced chip-set give you better imaging quality at lower cost
Support PC printer with reduced paper cost 128G Memory Card
Eco-Friendly
Less Radiation
Lower Power Consumption
Longer Usage Life: TFT
Support Timing Lock
Distributors can set timing lock according to the
buyers’ payment schedule:
e.g. 3 Months/ 6 Months/9 Months

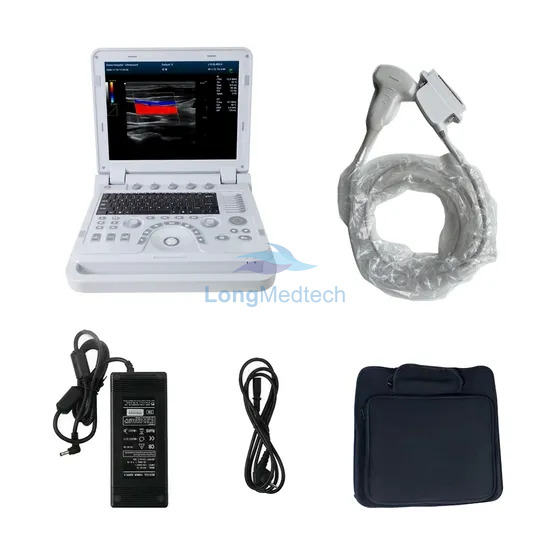

Accessories
One Linear Probe (7.5 MHz)
One Power Cord
One User Manual
One Adapter
Physical Characteristic
Dimension: 370mm (L) * 360mm (W) * 80mm (H)
Weight: 6.5kg
Applications
Abdomen, OB/GYN
Vascular, Small Organ
Imaging Technologies
SR, DBF, RDA,THI, DRF,, IMT, PW Auto Trace,B+CF/PDI/DPDI+PW
Display Mode
B, B/B, 4B, PDI, M,CF, PW
Gray Scale
256 Levels
Scanning Depth
250mm Max (Depend on the probe)
Archive Management
Patient Information Management,
Image/Video Record, Examination Report
S oftware Package
General, OB/GYN, URO,
Cardiac, Vascular, Small Organ
Zoom
4 Steps
Cine Loop
1086 Frames
Probe Frequency
2.0Mhz-12.0Mhz (Depend on the probe)
Option
Color M-mode, Anatomic M-mode,Wide Scene Imaging, Linear Array Deflection/Trapezoid Imaging,Trolley，
Standard Configuration
2 Probe Connection Ports, 2 USB, VGA Port,
Video Port, S-Video Port, LAN Port,
B+CF, TSI, THI, iTHI, HPRF, B+PW,
B+CF/PDI/DPDI+PW,
Space Compounding Imaging
Power Supply
AC 100-240V, 50-60Hz
