Features
The device which adopts linux embedded operating system, has well compatibility, transplantable character, and flexible expansibility.
It adopts advanced full digital beam-forming, real time dynamic aperture, real time dynamic receiving apodization, real time dynamic receive focusing, frame correlation, modern image processing technology etc., which improves image quality.

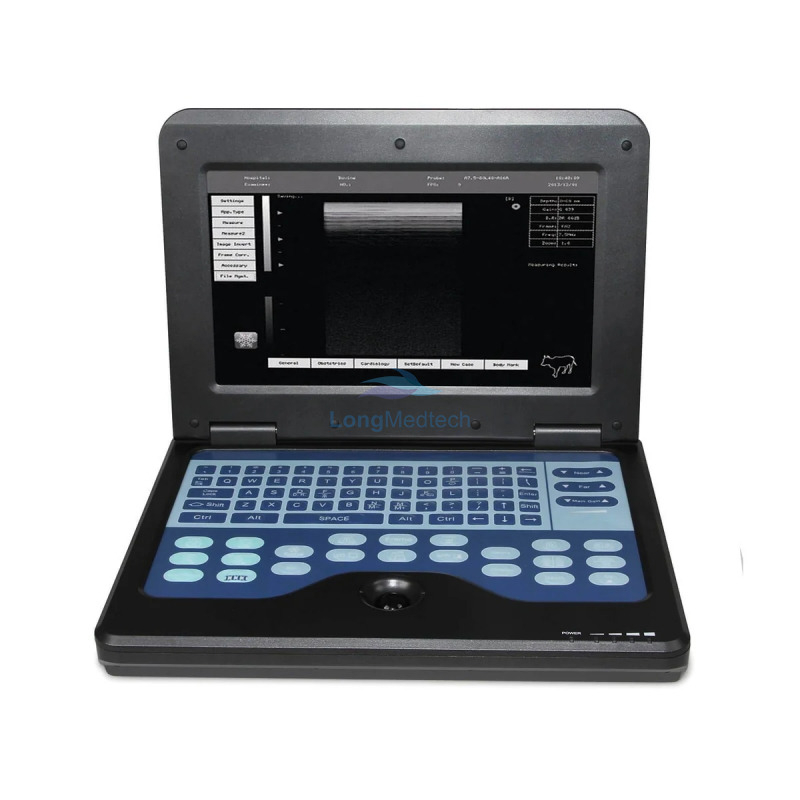

The system can be taken conveniently for notebook type, built-in battery, high integration of unit, small volume, light weight.
It adopts touch type folding keyboard, flexible and shortcut trackball operation, which greatly quicken the test speed.
Neat and convenient image managing function which can print and export report.
It includes rich measuring software packages:obstetrics, gynecology, cardiology, urology, small parts. Many probes can be chosen, and wide application can satisfy the clinic diagnostic need fully.
Near gain, far gain and total gain can be adjustable alone.
Possess external memory function.
Can be connected to the video printer, inkjet printer, laserjet printer.
Performance
Display modeB,2B,4B,B/M,MImage gray scale256Monitor10.1 inch TFT LCDDisplay resolution1024*600Lateral resolution2 mm (near field)
4 mm (far field)Axial resolution2 mm (near field) 2 mm (far field)Dead zone≤3 mmDisplay depth≤240 mmHorizontal geometric position precision≤5%Vertical l geometric position precision≤5%Zoom0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0Cine loop600 framesImage storage2048
framesBody mark43InterfaceUSB,Video,VGAMeasurementDistance, circumference, area, volume,angle, ratio, slope etc.
CommentDate, time, name, hospital,number, frame rate, depth, gain, dynamic range, frame correlation, frequency etc.Image processingControllable frame correlation, gamma correction, histogramImage conversionUp and down, left and right, black and white
Display mode:B,2B,4B,B/M,M
Image gray scale:256
Monitor:10.1 inch TFT LCD
Display resolution :1024*600
Lateral resolution:2 mm (near field) 4 mm (far field)
Axial resolution:2 mm (near field) 2 mm (far field)
Dead zone:≤3 mm
Display depth:≤240 mm
Horizontal geometric position precision:≤5%
Vertical l geometric position precision:≤5%
Zoom:0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0
Cine loop: 600 frames
Image storage: 2048 frames
Body mark: 43
Focus: The number and position can be adjustable.
Assistant tool: Puncture guide and histogram
Obstetrics, gynecology, cardiology, small parts, urology etc. can generate reports automatically.
Measurement: Distance, circumference, area, volume,angle, ratio, slope etc.
Support Chinese, English language interface display and input.
The management interface menu, Chinese and English operating systems, image processing default and a key function of optimization.
Measurement formula can be set up differently according to the different race.
Comment: Date, time, name, hospital,number, frame rate, depth, gain, dynamic range, frame correlation, frequency etc.
Image processing: Controllable frame correlation, gamma correction, histogram
Image conversion: Up and down, left and right, black and white
Tissue harmonic imaging
Screen comments function in both Chinese and English
Support USB storage
Update software though USB
Interface: USB,Video,VGA
