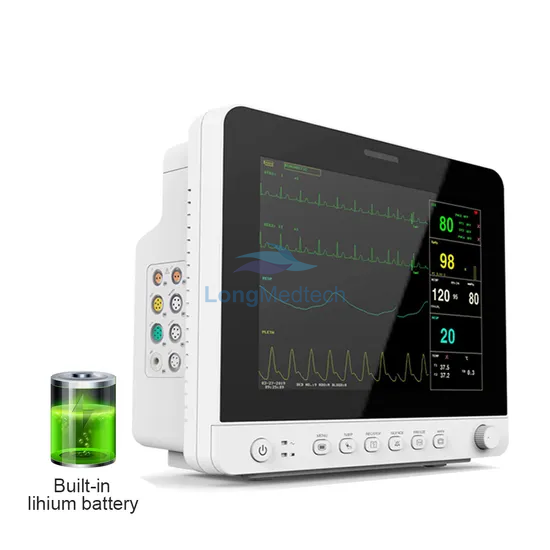

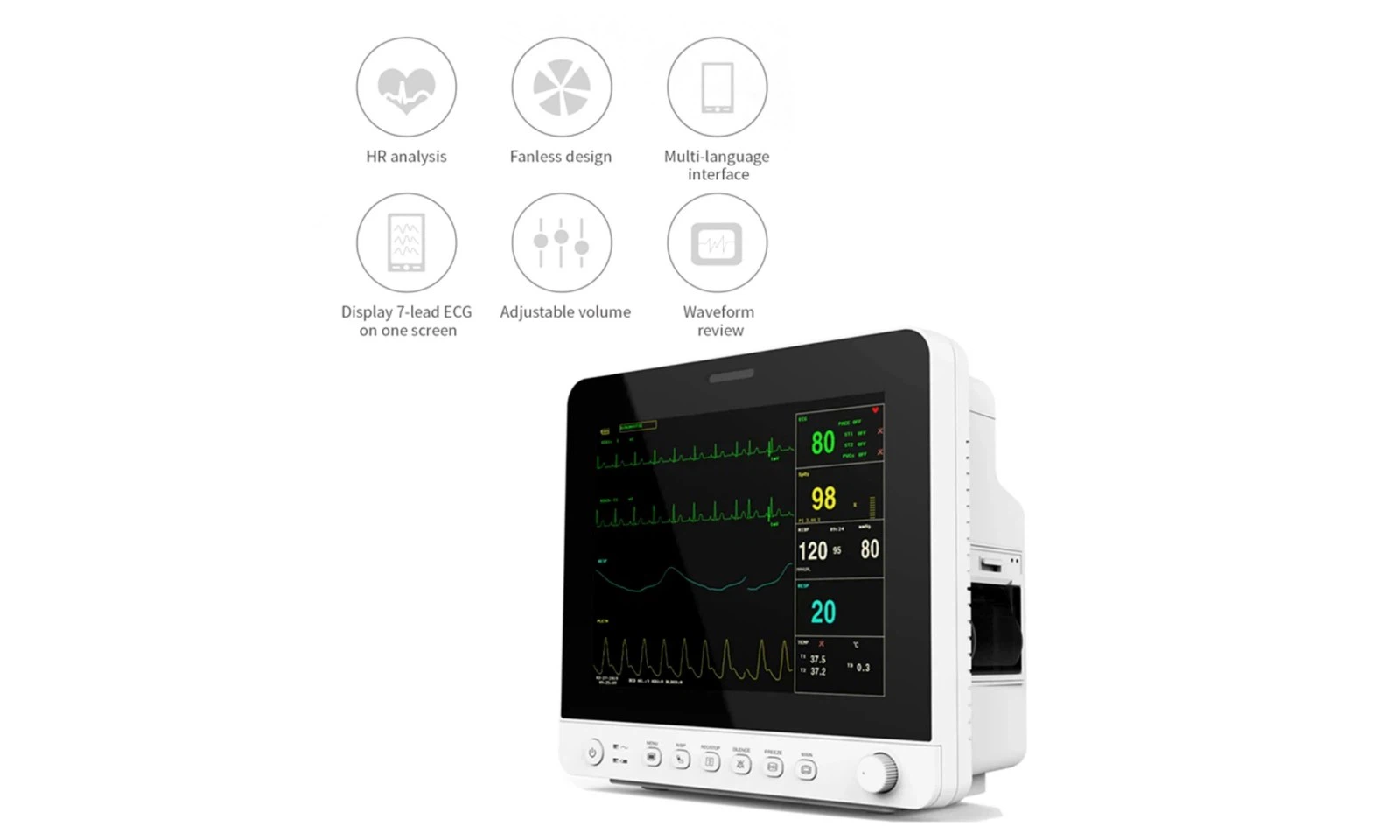

CMS8000-1
Multi-function and VGA interface reserved on the back, high waterproof level of IPX2
12.1-inch color TFT LCD display, simple and stylish appearance
Multilingual operation interface (Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish (Europe), Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech , Spanish (Mexico), Bulgarian, Ukrainian), for markets in different countries.
1) Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
2) All-round monitor for adult, pediatric and neonate.
3) With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
4) Finish all operations by keys and knobs.
5) Maximum 8-channel waveform synchronous display.
6) Display 7-lead ECG waveform on one screen, cascade ECG waveform display
7) Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
8) Heart rate variability (HRV) analysis function
9) NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
10) Review for 72 alarm events of all parameters and 60 arrhythmia alarm events.
11) Drug concentration calculation and titration table functions.
12) One-touch printing of trend graph
13) Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
14) AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
15) Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
16) Equipped with 12.1''HD LCD screen,the value is clearer,and the remote view is more convenient.
| Standard parameters | ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP |
| ◆ECG | Heart rate(HR) |
| ECG waveform | |
| Arrhythmia and ST-segment analysis | |
| ◆RESP | Respiration rate(RR) |
| Respiration waveform | |
| ◆SpO2 | Oxygen saturation(SpO2) |
| Plethysmogram(PLETH) waveform | |
| Pulse rate(PR) | |
| Bar graph | |
| ◆NIBP | Systolic pressure(SYS), Diastolic pressure(DIA) |
| Mean pressure(MEAN) | |
| ◆TEMP | T1, T2, TD |
| ◆IBP(optional) | CH1: SYS, DIA, MAP |
| CH2: SYS, DIA, MAP | |
| IBP waveform | |
| ◆CO2(optional) | EtCO2 |
| InsCO,：Inspired Minimum CO2 | |
| AwRR: Air Way Respiration | |
| It has abundant functions, such as audible and visual alarm,trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc. | |
Adult fingertip SpO2 probe (5-pin)
Adult NIBP cuff
NIBP extension tube
ECG lead cable
ECG electrode
Temperature probe
Power cord
User Manual
Dimension: 314 mm(L) × 145 mm(W) × 264 mm(H);
Weight: 3.9 Kg.
