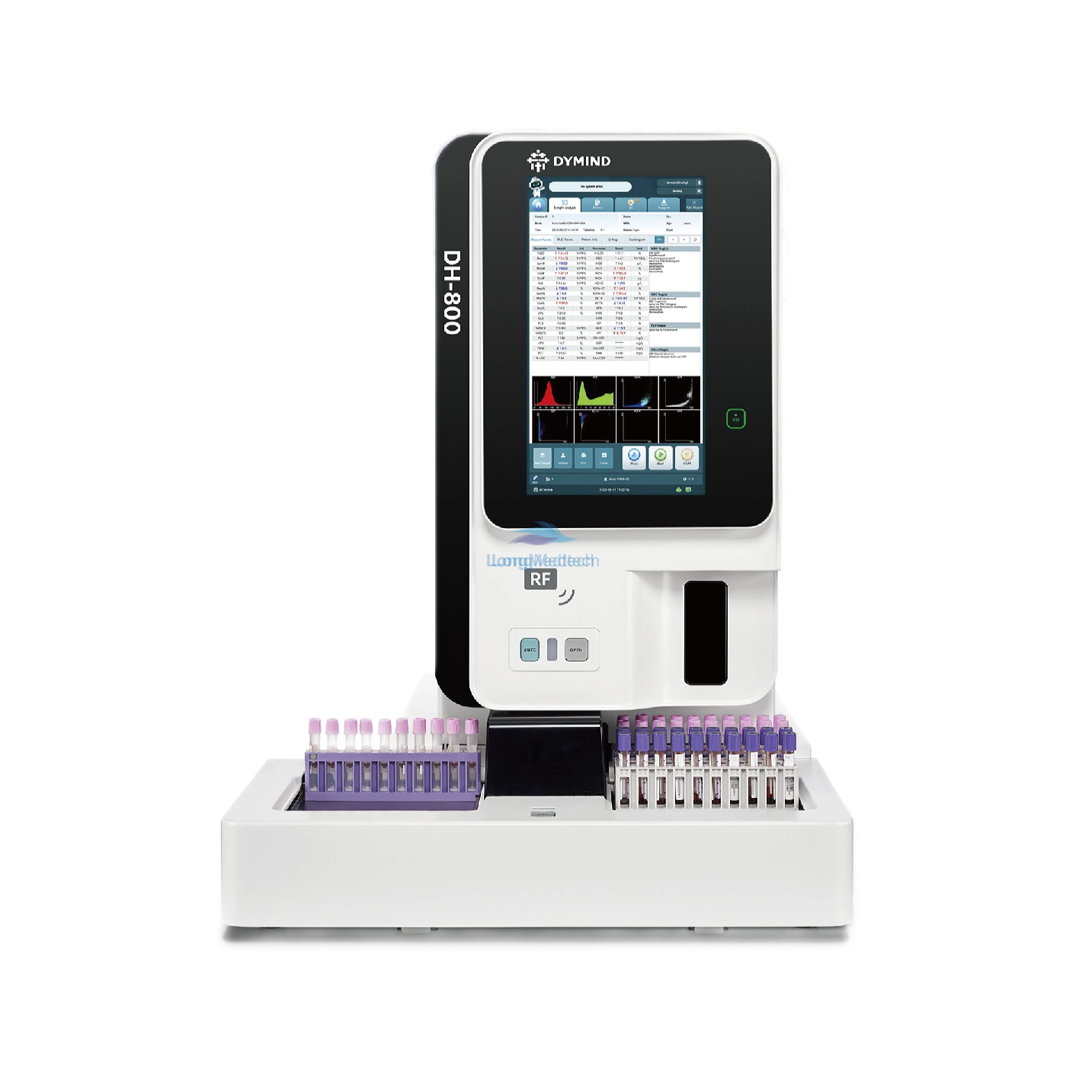

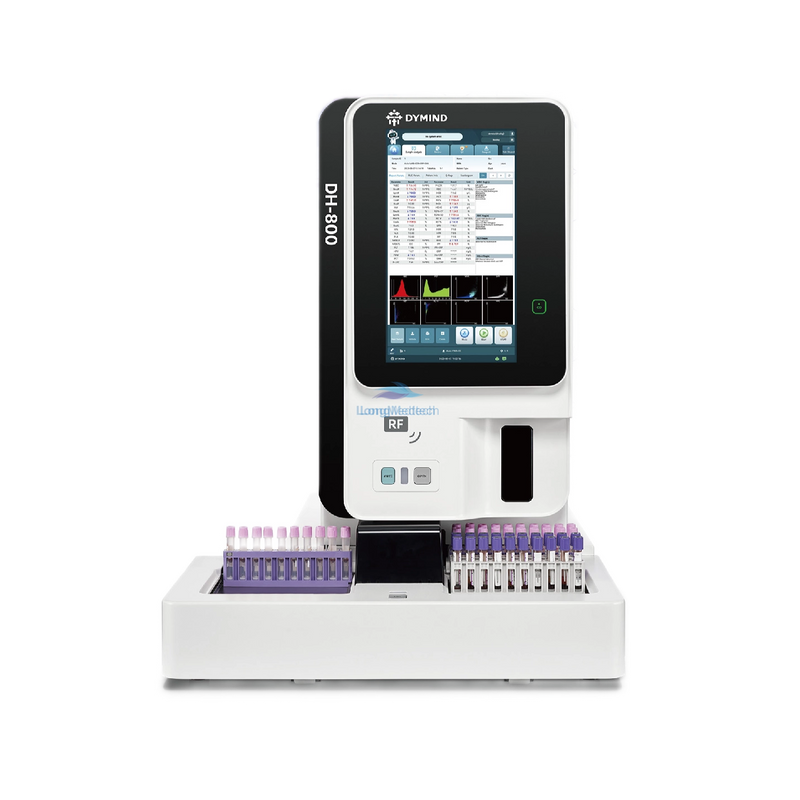

DH-800
Unparalleled operation experience
15.6 inch touch screen for the ultimate interactive experience
Q-button for swtiching common mode enhance operation efficiency.
Various and flexible sampling design
Global pioneer triune sampling design including autoloading and STAT(open and closed) meets various operation habits of end-users.
Loading for whole blood and capillary blood tubes simultaneously are available.
Comprehensive solution for auto-maintenance
Auto shut-down function with internal cleanser room
Fully-auto maintenance according to the real-time analyzer status.

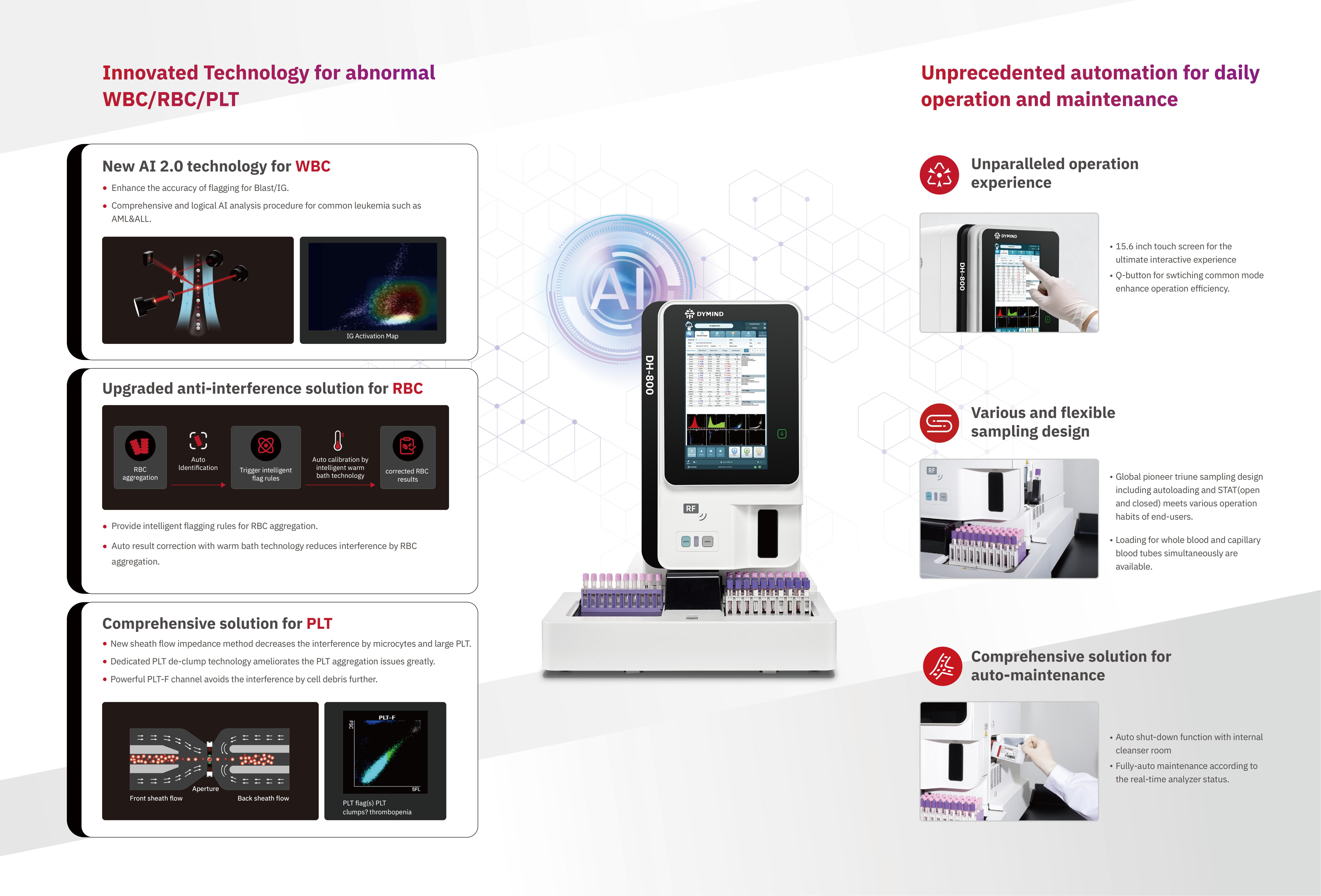

New AI 2.0 technology for WBC
Enhance the accuracy of flagging for Blast/IG.
Comprehensive and logical AI analysis procedure for common leukemia such as
AML&ALL.
Upgraded anti-interference solution for RBC
Provide intelligent flagging rules for RBC aggregation.
Auto result correction with warm bath technology reduces interference by RBC aggregation.
Comprehensive solution for PLT
New sheath flow impedance method decreases the interference by microcytes and large PLT.
Dedicated PLT de-clump technology ameliorates the PLT aggregation issues greatly.
Powerful PLT-F channel avoids the interference by cell debris further
Test Items
White Blood Cell | WBC | Red Blood Cell Specific Volume | HCT |
Neutrophil# | NEU# | Mean Cell Volume | MCV |
Lymphocyte# | LYM# | Mean Corpuscular Hemoglobin | MCH |
Monocyte# | MON# | Mean Corpuscular Hemoglobin Concentration | MCHC |
Eosinophil# | EOS# | Red Cell Volume Distribution Width-Coefficient of Variation | RDW-CV |
Basophil# | BAS# | Red Cell Volume Distribution Width-Standard Deviation | RDW-SD |
Neutrophil% | NEU% | Platelet | PLT |
Lymphocyte% | LYM% | Mean Platelet Volume | MPV |
Monocyte% | MON% | Platelet Distribution Width | PDW |
Eosinophil% | EOS% | Plateletcrit | PCT |
Basophil% | BAS% | Platelet-Large Cell Ratio | P-LCR |
Red Blood Cell | RBC | Platelet-Large Cell Count | P-LCC |
Hemoglobin(Concentration) | HGB | ||
Technical Specifications
Parameters | 5-part WBC Differential |
25 Reportable Parameters | |
2 Histograms | |
2 Scatter Grams | |
Abnormal Sample Alarm | |
Sample Mode | Whole Blood (Venous/Capillary),Pre-dilution |
QC Methods | L-J QC,X-B QC |
Power Supply | 100-240 V~ 50/60 Hz |
Weight | 21 kg |
Dimension | 328 mm x 471 mm x 446 mm (L x W x H) |
Data Storage | 10000 |
Screen Type | 10.4 inch Resistive Screen |
Operating Conditions | 18~30℃,≤80％ Relative Humidity,75 kPa~106 kPa |
