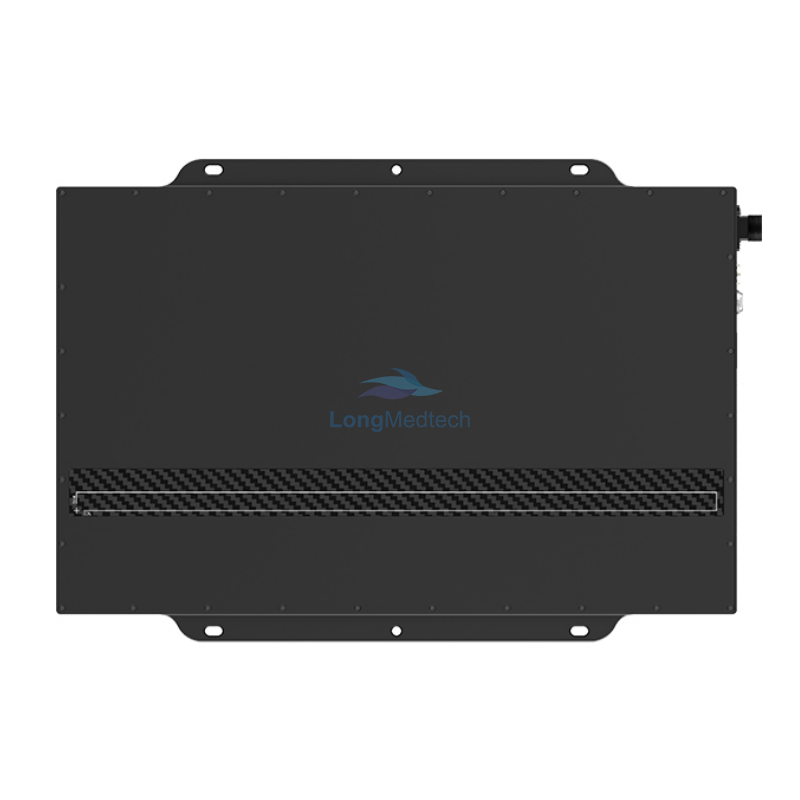

DTDI128S1
The DTID128S1 high-speed TDI scanning camera system adopts a CMOS image sensor with APS pixel structure, with a scanning frame rate of up to 33KHZ. It has 128 levels of mono energy (DTDI128S) and dual energy (DTDI128D) high-speed scanning, and the product pixel sizes include 0.1mm, 0.2mm, and 0.4mm, which can meet the requirements of online detection systems for high-speed, high sensitivity, low noise, and high resolution. In addition, the detector also supports bidirectional scanning, and the direction can be set. The system is suitable for high-speed online detection of foreign objects in food , fish bone detection, nut mold detection, and other applications.
Features
Compact structure, waterproof shell, IP65 waterproof rating
X-ray source energy range: 20kVp - 160kVp
Multiple effective detection length combinations
Mono and dual energy structures
128 level TDI, high signal-to-noise ratio
High-speed, high-resolution, high-sensitivity
Pixel sizes are 0.1mm, 0.2mm, and 0.4mm
Radiation resistant design up to 100000 Gy (@ 80kV) (radiation absorbed dose)
Low power consumption, passive cooling
Support for multi board connection and bidirectional scanning function
Technical Parameters
| Product | DTDI128S* | ||
| Model | DTDI128S1 | DTDI128S2 | |
| Detector technology | CMOS | ||
| scintillator | CSI | ||
| Pixel pitch | 0.1mm | 0.2mm | |
| TDI level | 40~160kV | ||
| DTDI line scan frequency | 128 | ||
| Maximum detection speed | 33KHZ | ||
| Energy Range | 20~160kV | ||
| AD conversion | 16 | ||
| radiative lifetime | 100000Gy@80kV，10000Gy@160kV（Max 50% signal drop） | ||
| signal transmission | 10G Ethernet&1 Giga | ||
| Effective detection width | 115.2*X，Multiple specifications available | ||
