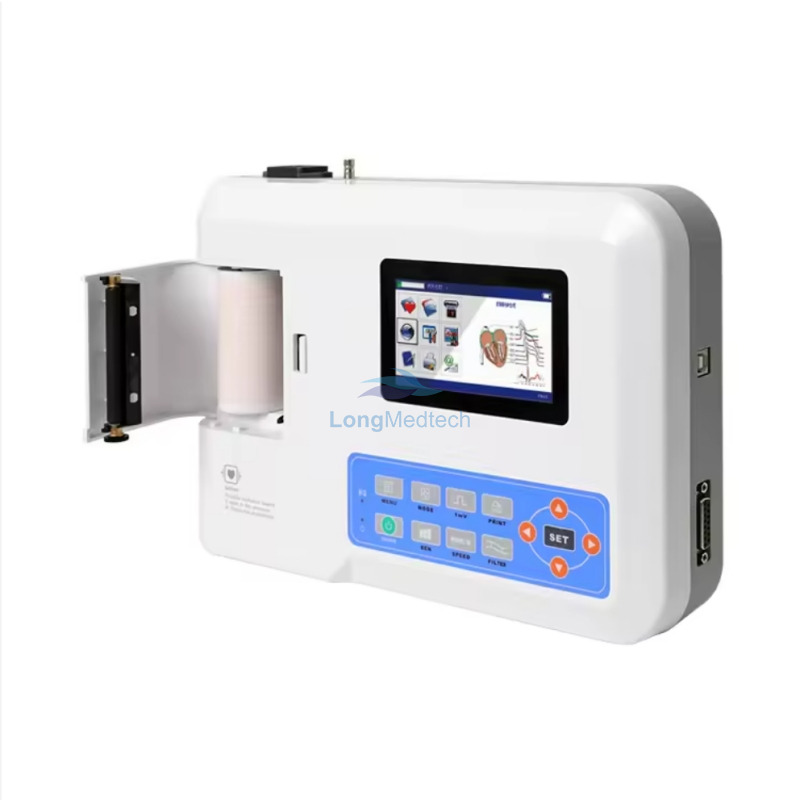

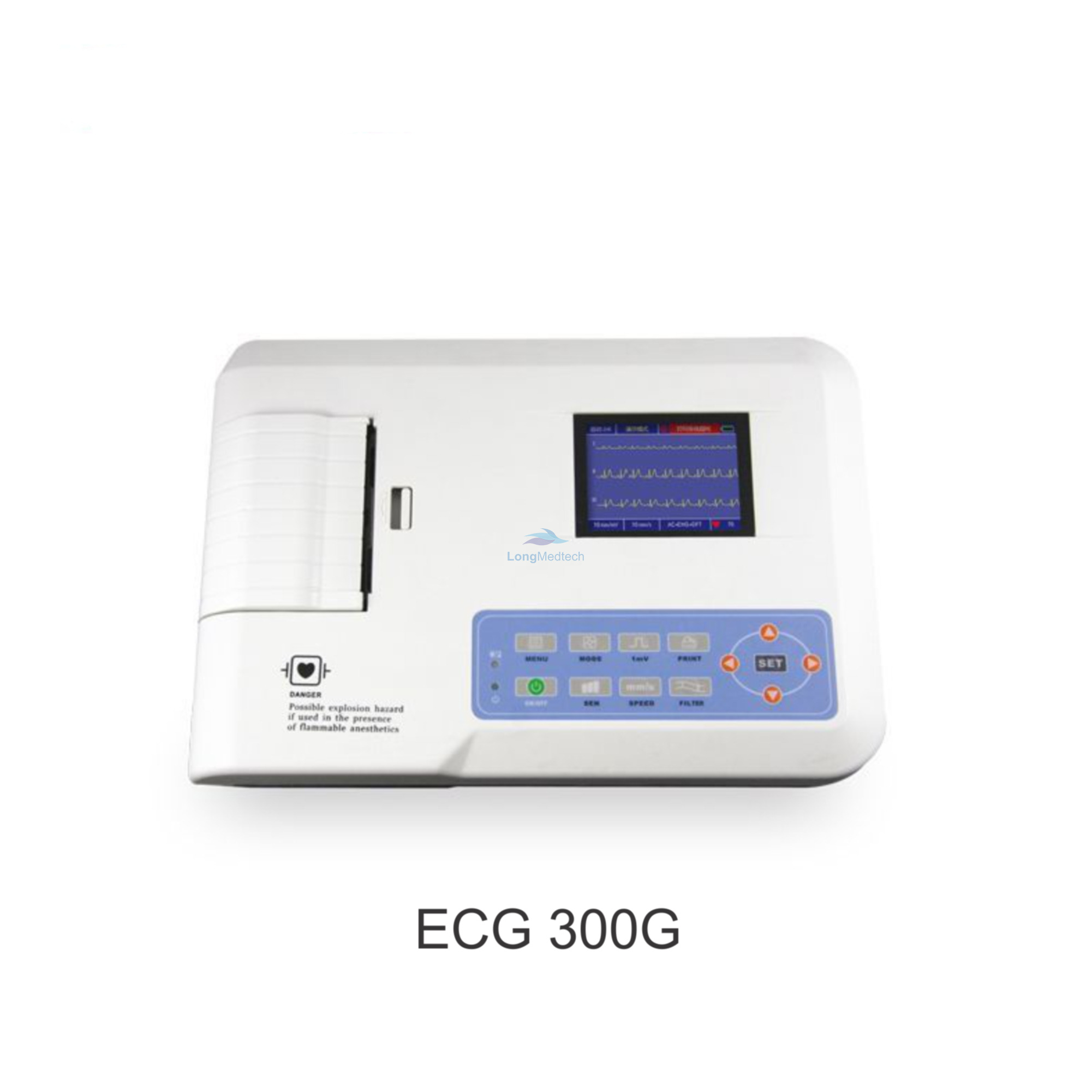

ECG300G 3 Channel Echocardiogram

Features:

• Accurate and clear ECG waveform

• Working state display

• Economical to save recording paper

• Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.

• Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.

• Multiple printing modes and formats, including manual, auto 4×3, auto 3×4+1, auto 3×4, auto 2×6+1, auto 2×6, auto 3-2+1, auto 3-2, auto 1×12+1, auto 1×12, rhythm 4, rhythm 3 and rhythm 2, etc. Waveform length printed can be adjusted, and with time print function, which meets different requirements.

• With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor' s burden.

• Built-in memory stores up to 1000 cases, convenient for case review and statistic.

• Multi-language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakstan, Russian, Ukrainian, Serbian and Slovenian) interface and report.

Specifications:

• Safety :Type Class I, Type CF applied part, which has defibrillation-proof

• Applied part

• Lead Standard 12 leads

• Input way: Floating and defibrilation protection

• Patient leak current <10µ A

• Sampling rate 1000Hz

• A/D conversion 12bit

• Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)

• CMRR >60dB, >100dB( Add filter)

• Enduring polarization voltage ± 300mV

• Noise level ≤ 15µ Vp-p

• EMG interference filter 25/35Hz (-3dB)

• AC filter 50/60Hz (≥ 20dB)

• Recording way Thermal printing system(32spots/mm)

• Recording paper 80mm(W)× 20m(L)

• Sensitivity 5mm/mV 10mm/mV 20mm/mV 40mm/mV Auto

• Auto-record: 25mm/s, 50mm/s

• Rhythm record: 25mm/s, 50mm/s

• Manual-record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s

CONTENT OF BOX

• Lead Cable

• Limb Electrodes

• Set Of Chest Electrodes

• Thermal Recording Paper

• Power Cord

• Earth Wire

• User Manual
