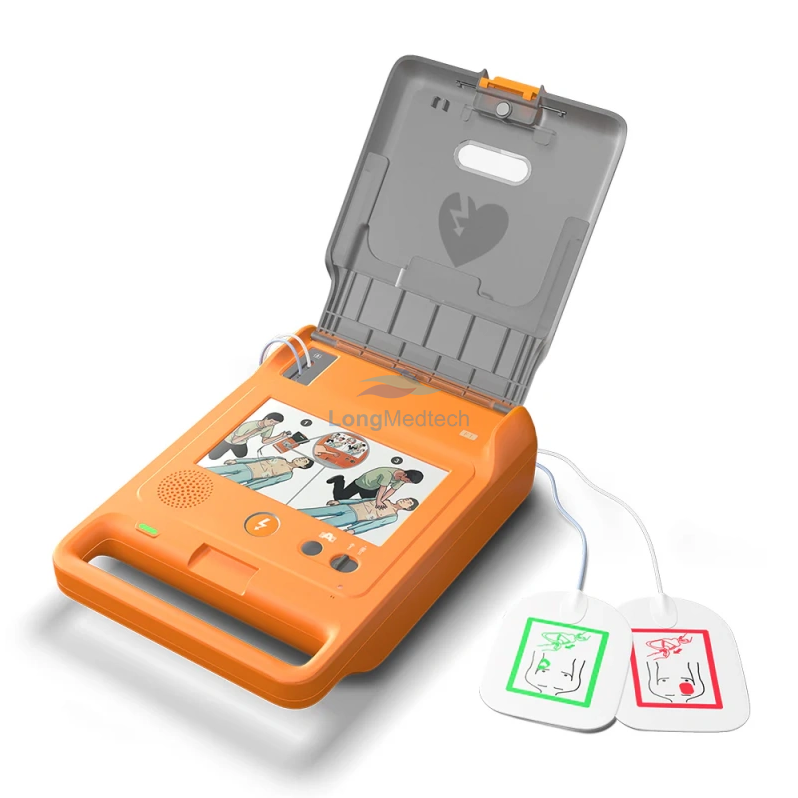

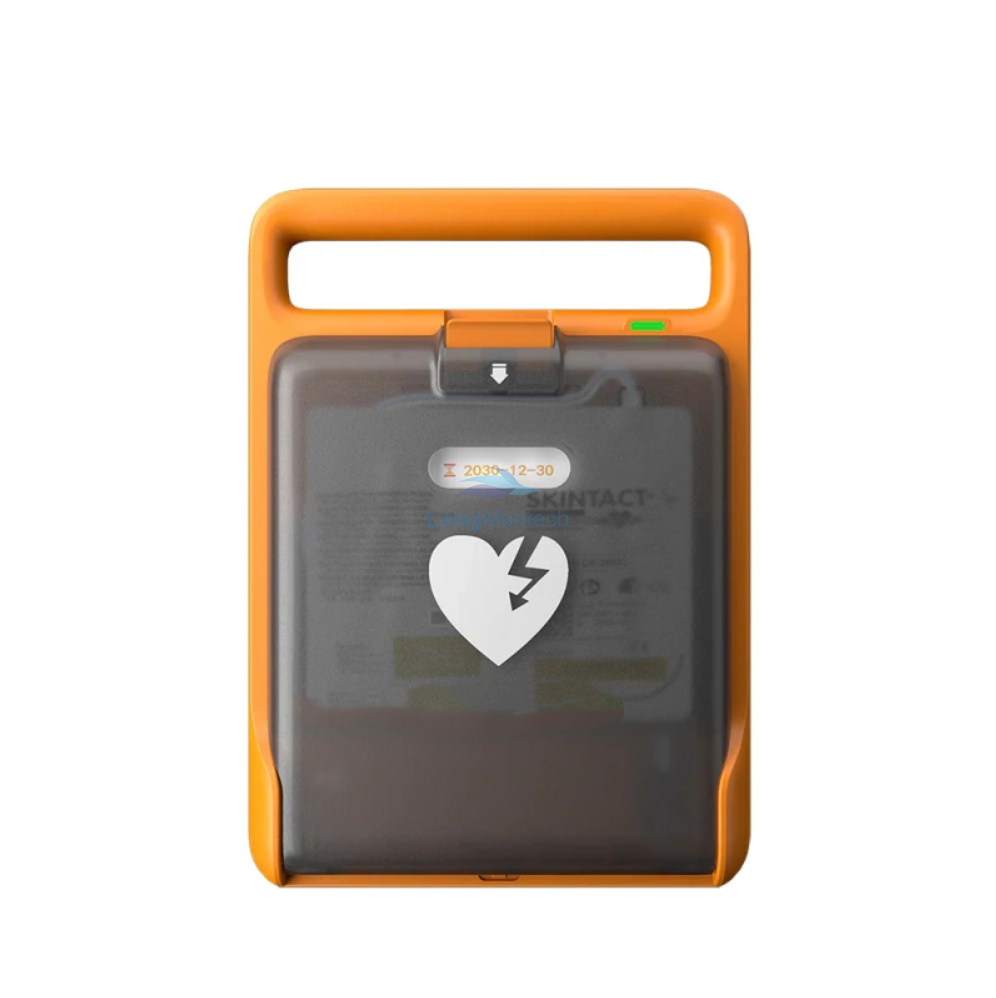

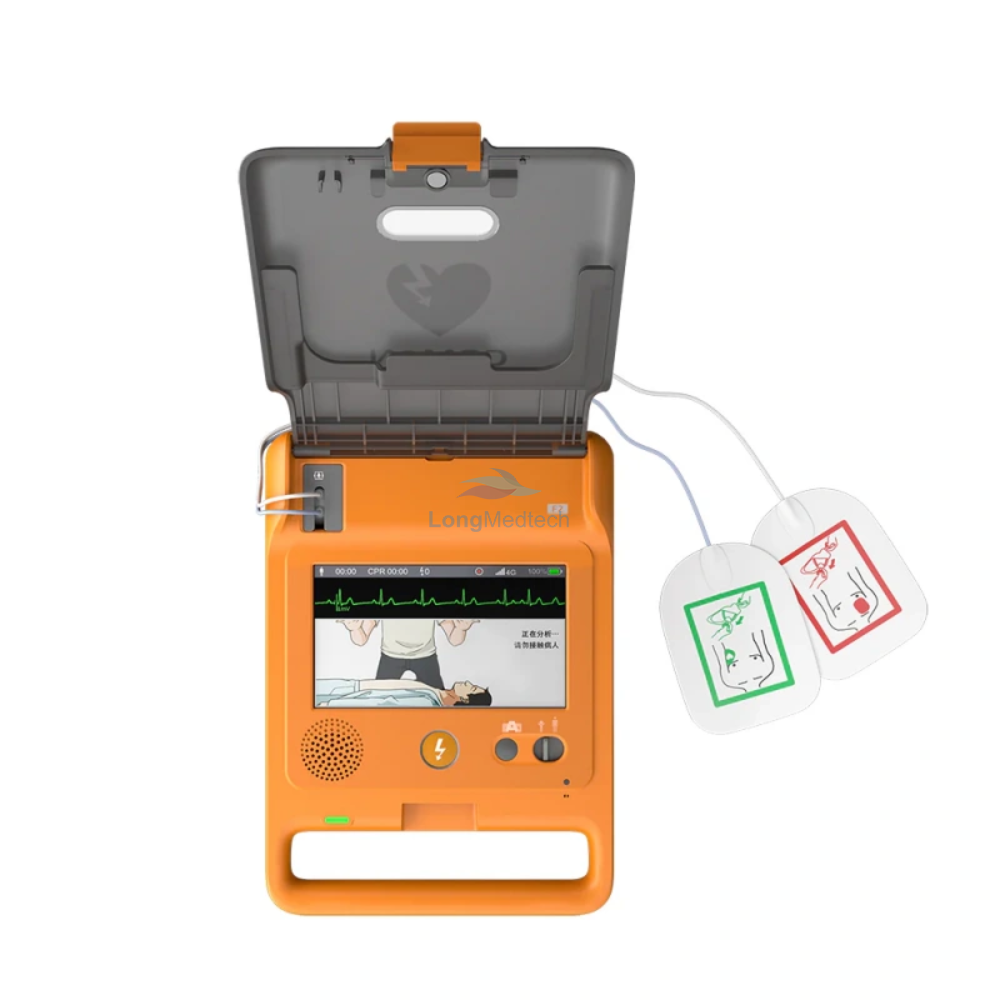

F2 Cardiac Automated External Defibrillator (AED)

Features:

Biphasic energy output

Energy selection range (Adults: 100 J, 150 J, 170 J, 200 J, 300 J, 360 J;Children: 10 J, 15 J, 20 J, 30 J, 50 J, 70 J, 100 J)

Battery Type:4200 mAh non-rechargeable battery,optional 5600 mAh non-rechargeable battery

ECG Analysis System

2.0 ± 0.2kg Weight (including battery)


Optional 4G or Wifi module

One-button switch multi-languages(English or custom 3 languages)

Optional:7 inches TFT display screen

Shock button,Optional:Fully Automatic

CPR assistive tools(CPR with voice guidance)

Vivid operation guide(Voice guidance throughout the rescue process)

Pre-connected electrodes(Suitable for adults and children with clear instruction)

One-button switch patient type(Defibrillation energy, compression frequency are set up automatically)

How to use?

Open the lid and power on
(When the lid is opened, the AED is automatically power on, and the voice guidance is activated,which immediately guides you on how to operate the AED)

Attach electrodes
(Attaching the electrode pads on required position following the diagram on it, then the AED will start the heart rhythm analysis immediately)

Press the "shock" button
(If the AED voice prompts to press the electric shock button, please press the button,and the AED will immediately proceed the shock)

Interactive Rescue Guidance

Advanced cardiopulmonary resuscitation (CPR) assistive functions enableCPR beats and voice guidance in real-time,instruct the user on theessentials of chest compression, and improve the rescue efficiency andsuccess rate.
