Product Category

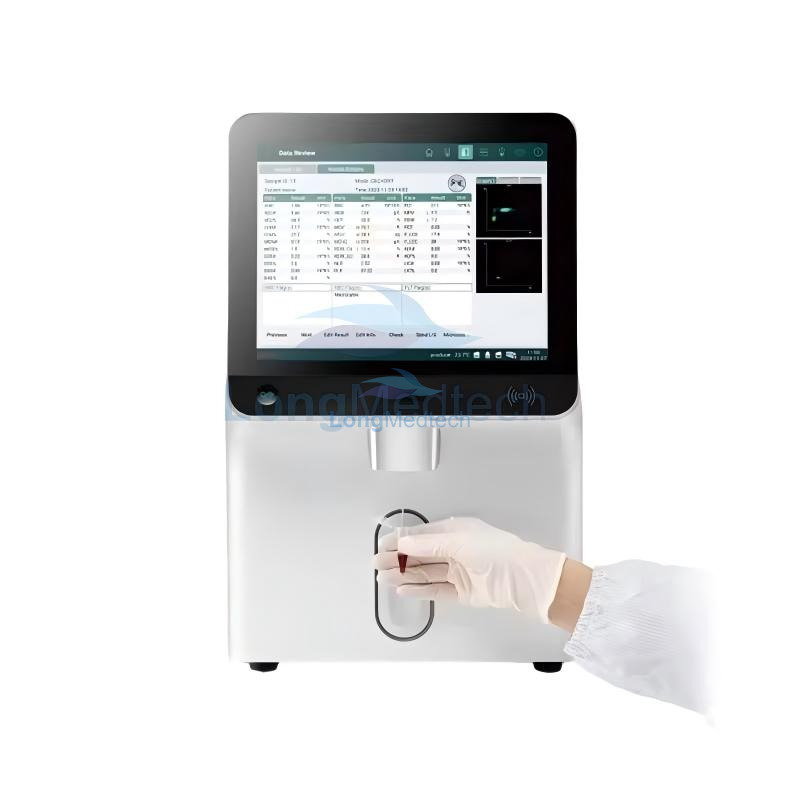

H60-Vet 5-Part Veterinary Hematology Analyzer

Assist Animal Healthcare in EDAN Way

Product Description

Technical Parameters

INSTRUMENT PARAMETERS OF H60 VET
Principles	Semiconductor laser flflow cytometry analysis for WBC, DIFF and BASO counting
	Electrical impedance method for RBC, PLT counting
	Cyanide-free reagent for HGB with colorimetric method
Parameters	25 reportable parameters: WBC, RBC, HGB, HCT, MCV, RDW-CV, RDW-SD, MCH, MCHC,PLT, MPV, PCT, PDW, PLCR, PLCC, LYM%, LYM#, MON%, MON#, NEU%, NEU#, EOS%, EOS#, BAS%, BAS#.
	6 RUO parameters: ALY#, ALY%, LIC#, LIC%, NLR, PLR.
	2 histograms: RBC, PLT
	2 scattergrams: WBC DIFF, BASO
Throughput	60T/H
Carryover	WBC, RBC, HGB≤ 0.5%; PLT≤ 1.0%
Sample volume	Whole blood mode: 16 μL
Sample volume	Pre-diluted mode: 20 μL
Data Storage Capacity	100, 000 results including results and histograms 60 QC fifiles (100 data per fifile)
Interface	5 USB ports (for external printer, software upgrade, barcode scanner, keyboard, mouse), 1 LAN port, support bi-directional LIS
Operating Environment	Temperature: 15°C-32°C; Humidity: 20% RH-85% RH; Air pressure: 70 kPa-106 kPa
Dimensions	501320502.5 mm (LWH)
Weight	29.3 kg

Parameters

1、25 reportable parameters: WBC, RBC, HGB, HCT. MCV. RDW-CV. RDW-SD, MCH, MCHC.PLT. MPV. PCT. PDW.

PLCR, PLCC, LYM%, LYM#, MON%, MON#, NEU%, NEU#, EOS%, EOS#, BAS%, BAS#.

2、3 histograms:WBC, RBC, PLT4 2D scattergrams: 3*DIFF,1*BASO

3、6 RUO parameters: ALY#, ALY%, LIC#, LIC%, NLR, PLR.

Principles：

Tri-angle laser semiconductor laser, flow cytometry for WBC, DIFF, and BASO counting

Electrical impedance method for RBC, PLT counting

Cyanide-free reagent for HGB with colorimetric method

Test Items

White Blood Cell	WBC	Red Blood Cell Specific Volume	HCT
Neutrophil#	NEU#	Mean Cell Volume	MCV
Lymphocyte#	LYM#	Mean Corpuscular Hemoglobin	MCH
Monocyte#	MON#	Mean Corpuscular Hemoglobin Concentration	MCHC
Eosinophil#	EOS#	Red Cell Volume Distribution Width-Coefficient of Variation	RDW-CV
Basophil#	BAS#	Red Cell Volume Distribution Width-Standard Deviation	RDW-SD
Neutrophil%	NEU%	Platelet	PLT
Lymphocyte%	LYM%	Mean Platelet Volume	MPV
Monocyte%	MON%	Platelet Distribution Width	PDW
Eosinophil%	EOS%	Plateletcrit	PCT
Basophil%	BAS%	Platelet-Large Cell Ratio	P-LCR
Red Blood Cell	RBC	Platelet-Large Cell Count	P-LCC
Hemoglobin(Concentration)	HGB

Technical Specifications

Parameters	5-part WBC Differential
	25 Reportable Parameters
	2 Histograms
	2 Scatter Grams
	Abnormal Sample Alarm
Sample Mode	Whole Blood (Venous/Capillary),Pre-dilution
QC Methods	L-J QC,X-B QC
Power Supply	100-240 V~ 50/60 Hz
Weight	21 kg
Dimension	328 mm x 471 mm x 446 mm (L x W x H)
Data Storage	10000
Screen Type	10.4 inch Resistive Screen
Operating Conditions	18~30℃,≤80％ Relative Humidity,75 kPa~106 kPa
