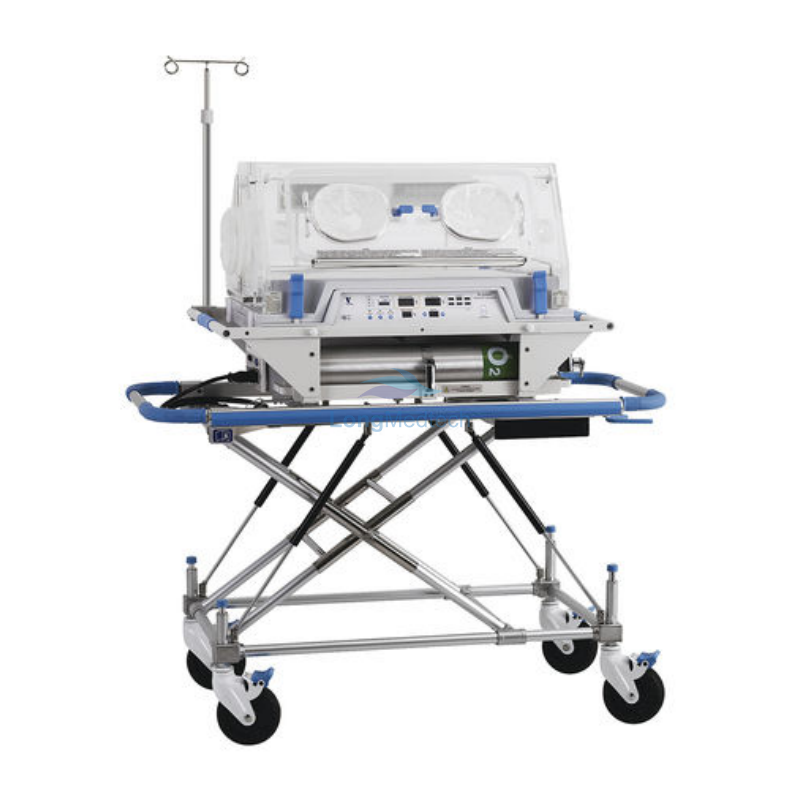

LBW-3000 Transport Incubator

Brief Introduction

• Two temperature control modes: Air mode and Baby modecontrolled by micro-computer;

• Use AC Power and DC Power alternatively, DC 12V or DC24V Power on the ambulance;

• Set temperature, Air temperature, Baby temperature andInternal battery capacity can be displayed separately;

• Multiple failure alarm indications;

• ">37°C" temperature set function as optional configuration;

• Double wall acrylic glass hood with side door so that thebassinet can be pulled out from it;

• Passive humidification;

• The height of whole unit can be adjusted;

• Oxygen supply system;

• Observation lamp.

Standard Configuration

Main body (Including the Hood, Controller, Bassinet, Internalbattery, and Observation Lamp), Oxygen cylinders, Oxygensupply system, Skin temperature sensor, I.V. Pole, Mattress,Adjustable stand).

Optional Configuration

"> 37°C" override temperature mode,Disposable skin temperature sensor,Ambulance trolley.

Environmental temperature

Operating range: 10°C~30°C (Set temperature should be3°C higher than the environment temperature)

Ambient air velocity: >0.3 m/s, <1.0m/s

Specification

AC power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz,

                                             400VADC Power requirement: DC12V/10A or DC24V/6A

Control Mode: Air mode and Baby mode controlled by micro-computer

Air temperature control range: 25°C-37°C(Override mode 37°C-38°C)

Baby temperature control range: 34°C-37°C(Override mode 37-37.5°C)

Skin temperature sensor accuracy: +0.2°C

The temperature fluctuation range between incubator temperature and average incubator temperature (under stable temper-ature condition): ≤1.0°C

Temperature uniformity: ≤1.5°C(mattress is on the horizontal position)

Noise inside hood: ≤52 dB(A)Failure alarm: over-temperature alarm, temperature deviationalarm, sensor alarm, motor fan failed alarm, power failurealarm and so on.

Battery continuous working time: 90min (Set temperature is 36°C-Ambient temperature is 15°C)

Product Packaging

Package: Main body and Cabinet are packed into two cartons

Dimension (Main body): 1090mm x 655mm x 760mm

                        (Cabinet): 1380mm x 610mm x 400mm

Gross Weight (Main body): 80Kg

                            (Cabinet): 53Kg
