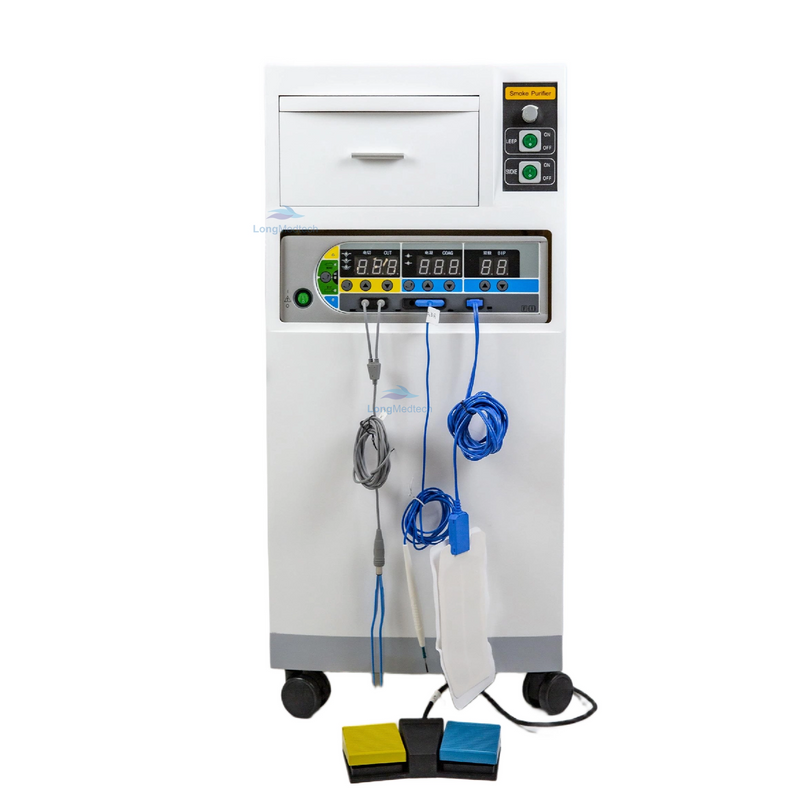

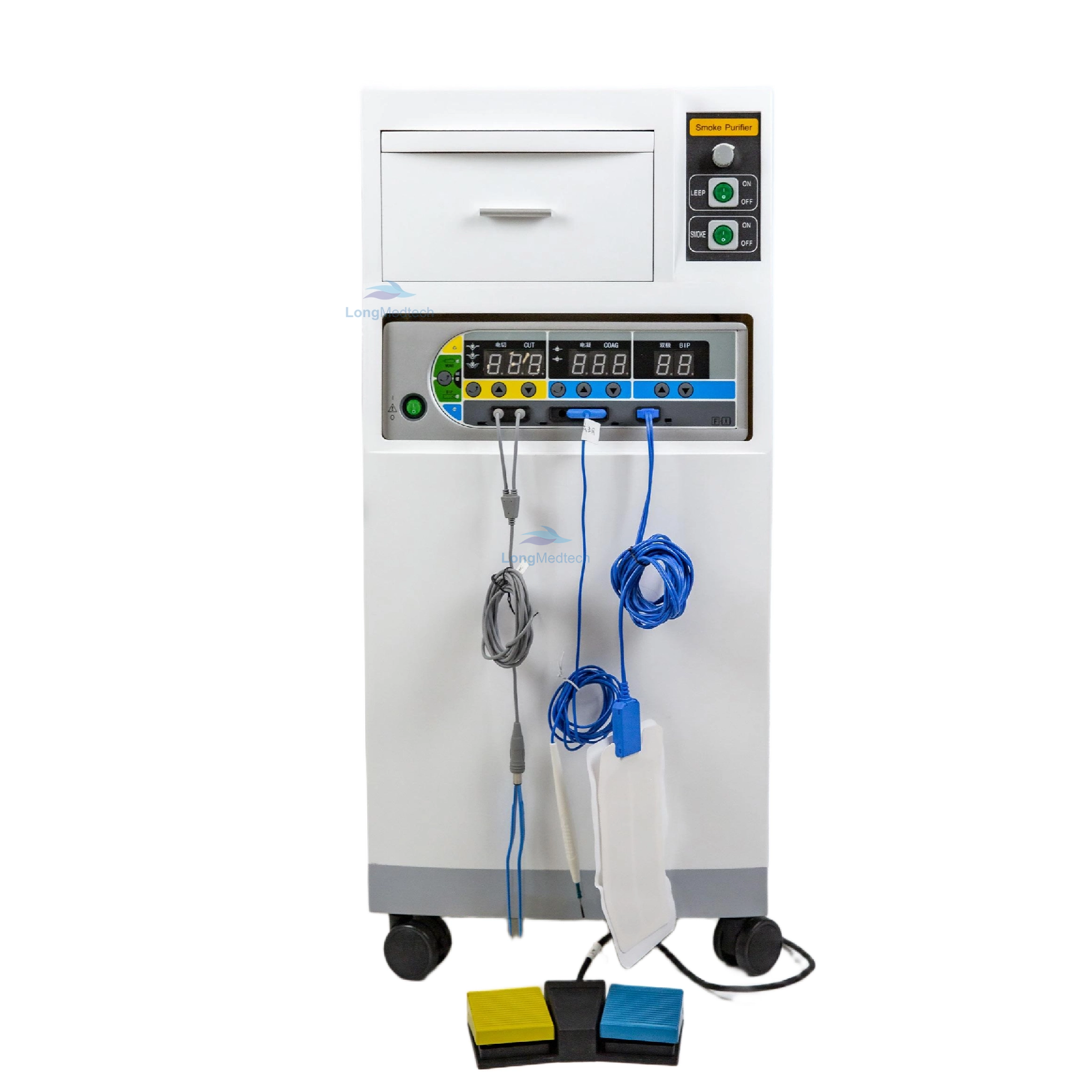

LFG-108（300W） High-frequency Electrosurgical Unit

PRODUCT FEATURES

 Maximum Output Power: 300W

Six Output Modes: Pure Cut, Blend Cut 1, Blend Cut 2, Coagulation 1, Coagulation 2, Bipolar Coagulation

Cutting Modes: Pure Cut: 100% cutting. Blend Cut 1:70% cutting. 30% coagulation Blend Cut 2 50% cuting. 50% coagulation

Pure Cut: with a maximum output power of 30oW, enabling easy surgery on any tissue or structure

Blend Cut: available in any tissue, offering enhanced coagulation during cutting

Coagulation1:Suitable for general open surgery. providing precise surface coagulationand deep tissue coagulation with excellent hemostasis

Coagulation 2: Ideal for general open surgery, offering precise surface coagulation

Bipolar Coagulation: The output power gradually decreases as the tissue reaches coagulation, ensuring effective hemostasis via buttons and feature a waterproof panel design

Panel Operation Fuly microcomputer controlled with LED digital display.

The functions/power settings are switched/adjusted

Automatic Adjustment: The unit automatically fine -tunes the power within a specific range to ensure consistent cutting

pertormance

Automatic Recognition: Automatically recognizes single and dual-circuit neutral electrodes If the contact area of the dual- circuit electrode is below 60%, the unit will automatically stop output and trigger an audible and visual alarm until the contact area is restored to normal, effectively preventing patient burns

TECHNICAL SPECIFICATIONS

Operating Power Supply: 220V+ 22V,50Hz+ 1Hz

Rated Power Consumption: s1400VA

Operating Frequency:Monopolar: 475KHz+ 2% Bipolar: 1MHz +2%

Safety Standards: Class I, BF typeMaximum Output Power: 300W

Operating Modes: Pure Cut, Blend Cut 1, Blend Cut 2, Blend Cut 3，Coagulation 1, Coagulation 2, Bipolar Coagulation
