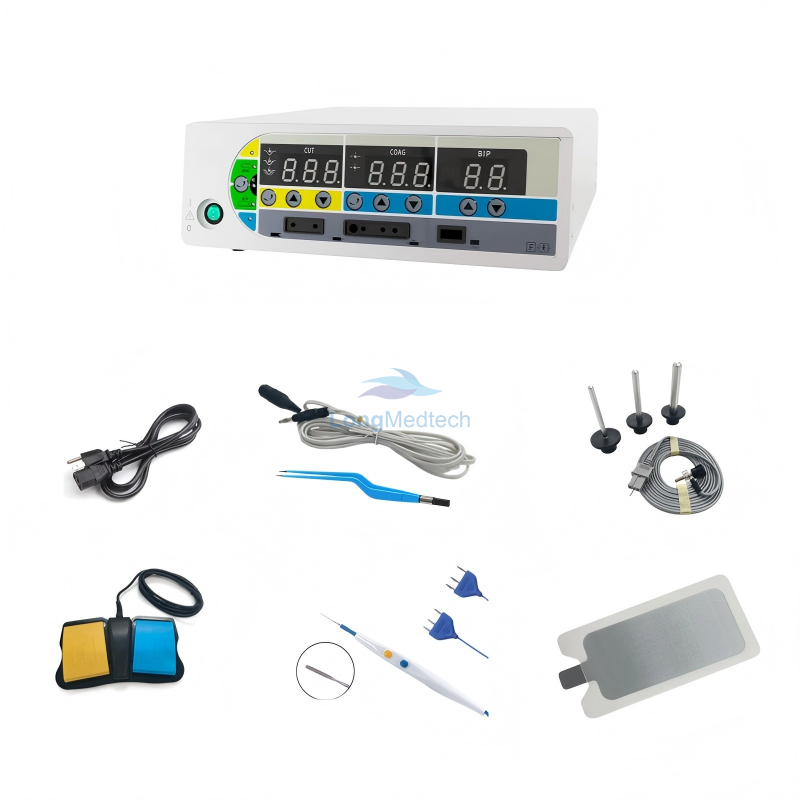

LFG-109 High-frequency Electrosurgical Unit

HIGH FREQUENCY ELECTROSURGICAL UNIT

Product Features:

Max output power:300w

Six output modes:Pure Cut. Blend Cut 1 Blend Cut 2 Coagulation 1, Coagulation 2 Bipolar Coagulation

Unique surgical current design with pulse cutting, Blend cutting, soft coagulation, forced coagulation and other surgical modes

The output power is stepwise adjustable, with a minimum adjustable range of + 1W

Adopting power automatically fine -tuned technology, the alternation of cutting and coagulation are controlled auto-matically by the microprocessor, the power automatically fine -tuned within a certain range,under the condition ofiquid vaporized tissue, the impedance continuously increases without power attenuation, ensuring good control of

cutting accuracy and balancing various surgeries

Automatic feedback technology: various electrodes provide feedback to microcomputer processors based on changes

in tissue impedance, then automatically cutting off output to avoid tissue adhesion and perforation

Power-off memory function enable directly access to the previous surgical mode and effect

With Patient Return Electrode Monitoring System(REM), it can effectively monitoring the quality of the negative plateadhesion and improving surgical safety

With function of single-zone double-zone negative plate automatic recognition, when negative plate adhesive area is

less than 60%, it also with the automatic audible and visual alarm

With Power On Self Test function and fault code setting, more easier to understand the cause of the malfunction and

promptly troubleshoot it

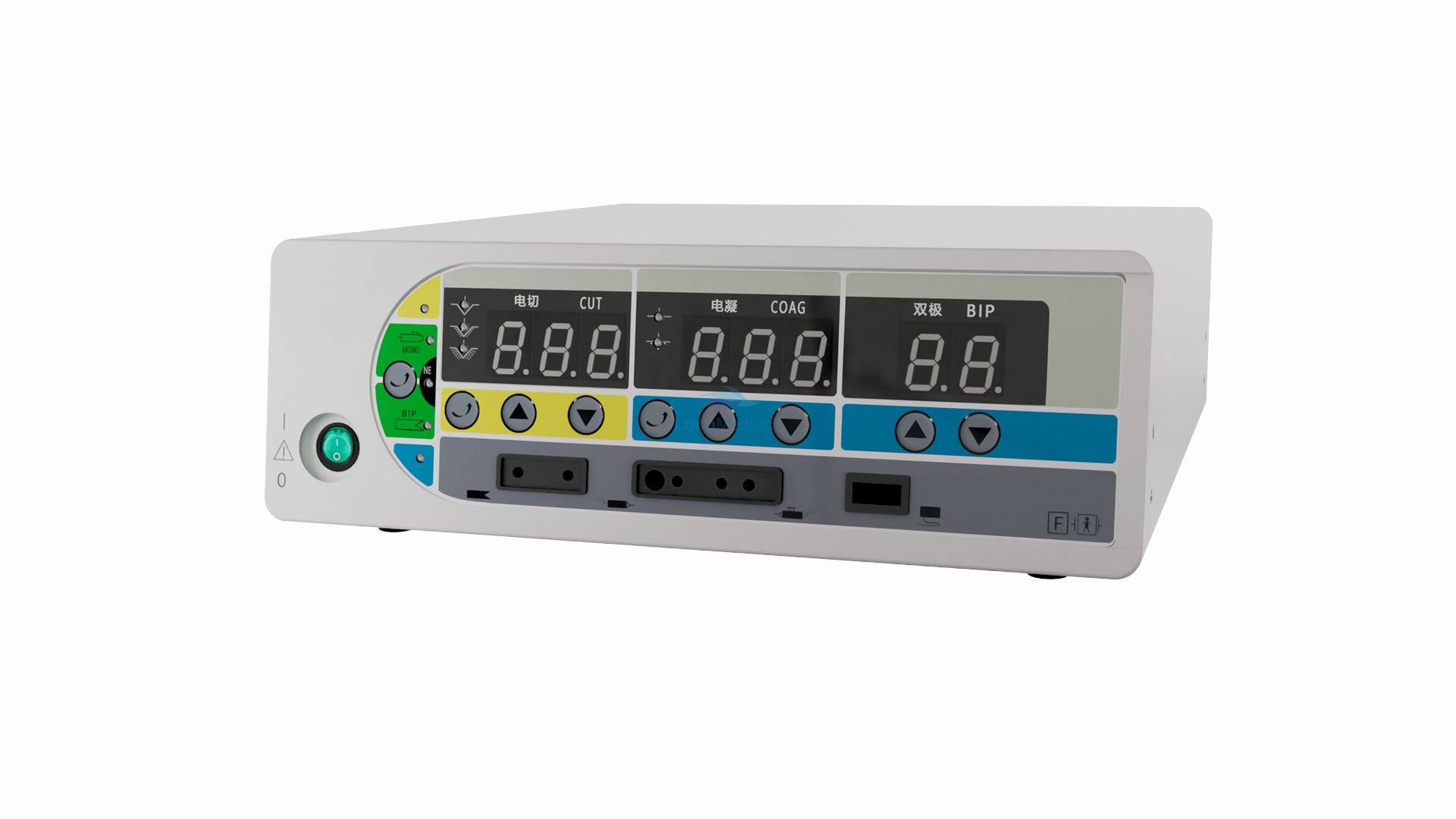

Panel Operation:All controlled automatically by microcomputers, (LED)digital display in three zones, button func-

tion/power, switching/setting, with waterproof panel design
