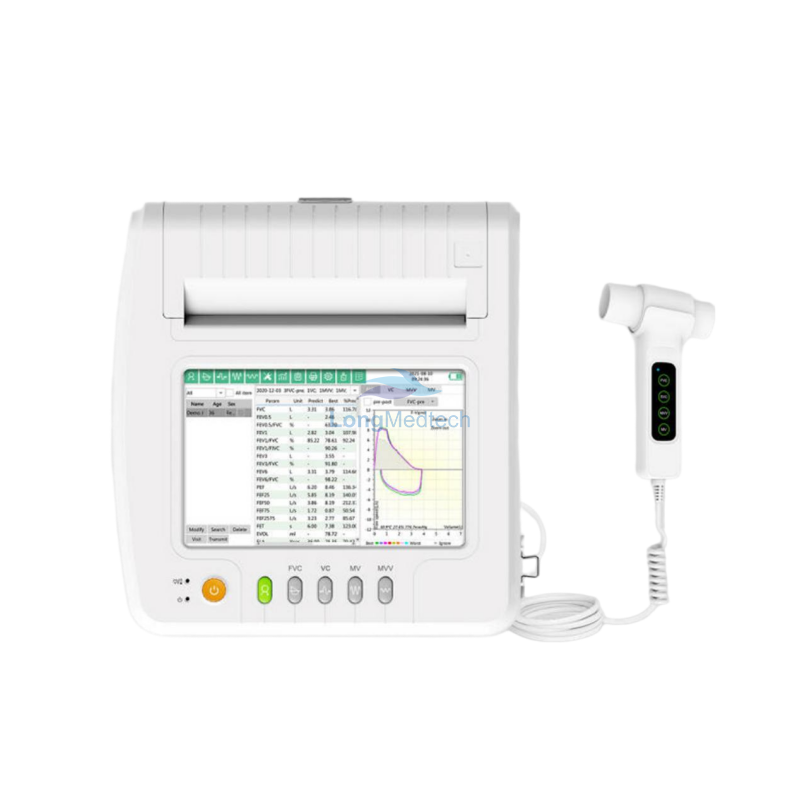

LKT-100B Spirometer

The Spirometer is a portable device for testing pulmonary functon, it adopts differential pressure acquisition principle to measure oversed in many scenarios, such as hospital, clinic, family, MW and provoca 100 parameters related to FVC, VC, MVV and MV functions.

It can be ution test before / after medication, etc. which can provide the test results of pulmonary function for the users and the basis for the medicalstaff to make diagnosis.

Function

• Differential pressure detection technology, with a professional lungfunction software, which can measure over 100 parameters related to FVC, VC, MW and MV functions.

• Measure inspiratory and expiratory parameters, real-time curve display.

• BTPS correction function, measure temperature, humidity and baro metric pressure automatically.

• Quality control function, automatic QC rating.

• Calibration control function: volume calibration, three flows verification.

• Display the optimal value from many measurements.

• The tester condition can be reflected by the ratio of the measured valueand the predicted value.

• Flow volume and volume-time curve.

• Data memory, delete and information review functions.

• Trend chart display.

• Prompt functions for over-limit of volume and flow.

• Rechargeable lithium battery, with charging prompt.

• Battery powerindication.

• Built-in multiple predicted values.

• Support bronchial dilation/provocation test.

• Pulmonary function assessment.

• Follow-up questionnaires function.

• Patient information can be entered, managed and queried.

• The test report can be printed and output by the built-in 210mm thermalprinter.

• The external printer can be connected to print and output the test report.

• 10.1" capacitive touch screen.

• Wi-Fi function.

• Built-in ID card reader (optional).

Performance

Display mode: 10.1" color LCD

Display resolution: 1280 *800

Volume range: 0L~10 L (BTPS)

Volume accuracy: + 3 % or + 0.05 L (whichever is greater)Flow range: 0 L/s~ 16 L/s (BTPS)

Flow accuracy: + 5% or + 0.17 L/s (whichever is greater)Power consumption: P ≤ 150 V.A

Power supply: DC 14.8 Vrechargeable lithium battery or AC220V 50Hz- Safety class: class I or internally powered equipment, type BF ap-plied part

Accessories

A pulmonary function probe

AUser Manual

100 mouthpieces (round: 50, flat: 50)

Acord set

Arecordingpaper

An earth line

Anose clip (optional)

Physical characteristic

Dimension: 340 mm (L) X 320 mm (W) X 86 mm (H)

Weight: about 4000g
