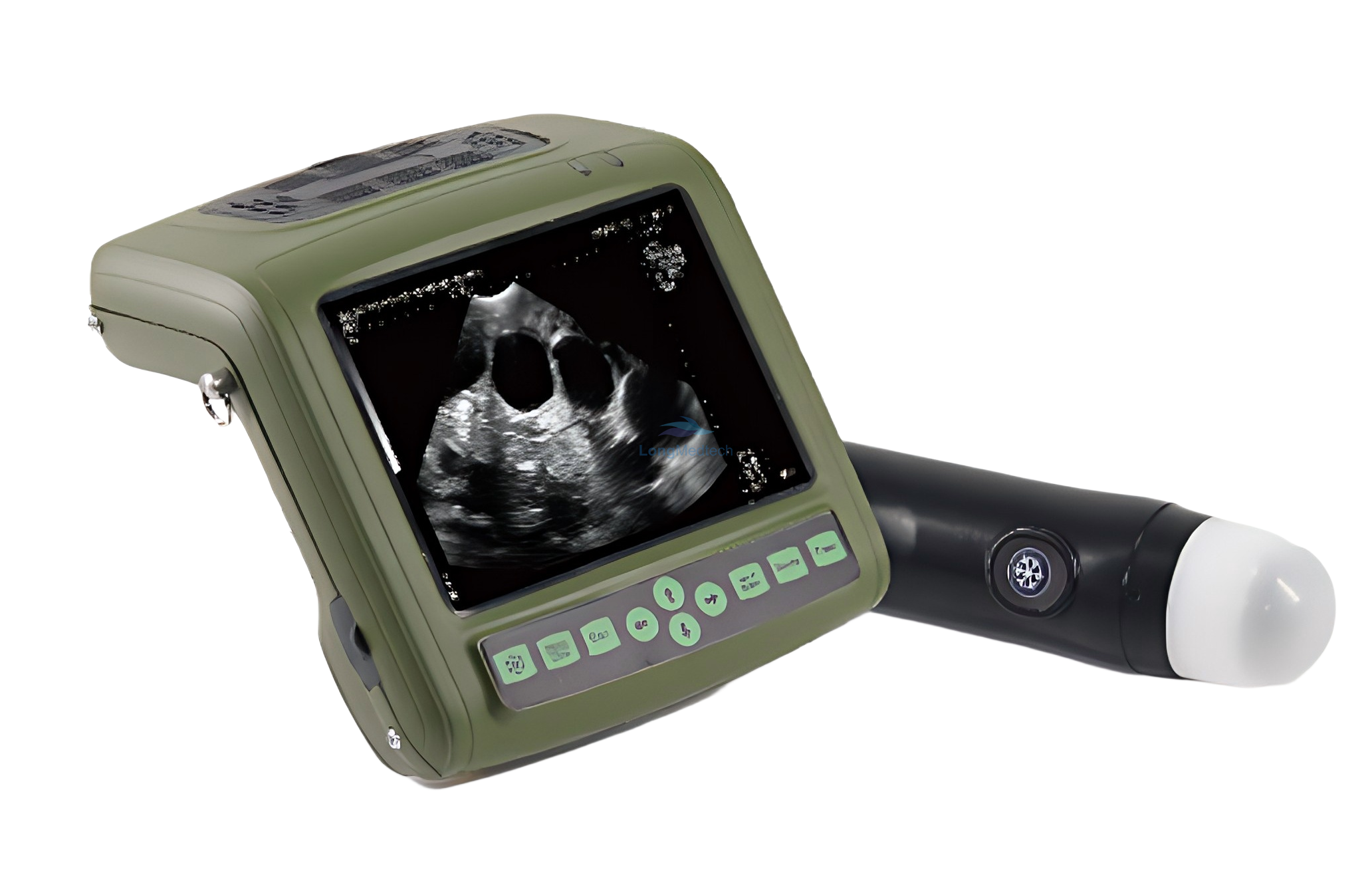

LKX11P
Character
Patented wrist design and intemal battery of LKX11P makesthe diagnosis more convenient;
Only 1.1Kg, easy to operateand carry.
5.7 inch high resolution color TFT LCD monitor forming a clearimage under the sunshine for special treatment.
Obstetric measurement functions: gestational weeks andexpected delivery of sows, cattle, dogs, horses, cats, goats,camels, sheep.
Scanning mode: B, 2B, 4B, B/M, M.Interface pseudo dolor display (8 kinds).
Image storage: 256 frames permanent storage, without loss ofimage when powered off.
Display back-fat ruler for easy visual inspection of back-fatthickness.
Measurement data can be exported EXCEL table.
Convenientfor users to manage pregnancy test records
High-speed USB socket support large-capacity flash disk andmouse.
Dual-mode TV output: PAL/NTSC, connecting to thermalprinter and ultrasonic working station.
High-capacity lithium Battery(2400mAh), more than 200 minutes work.
Application and Benefit
Diagnose fetal status
Determine whether the fetus is stillborn or mummyby measuring heart rate;
Check the uterine function
Diagnose reproductive disorders such as uterinepyometra and uterine effusion;
Pregnancy test
Accurately determine pregnancy early after mating;
Economic benefits
Using B ultrasound for early pregnancy testing canavoid feed waste caused by nonpregnant. If roughcalculation, for every 100 sow herds, the first year oftesting can directly save feed costs of 700 $ - 850 $for the farm.
