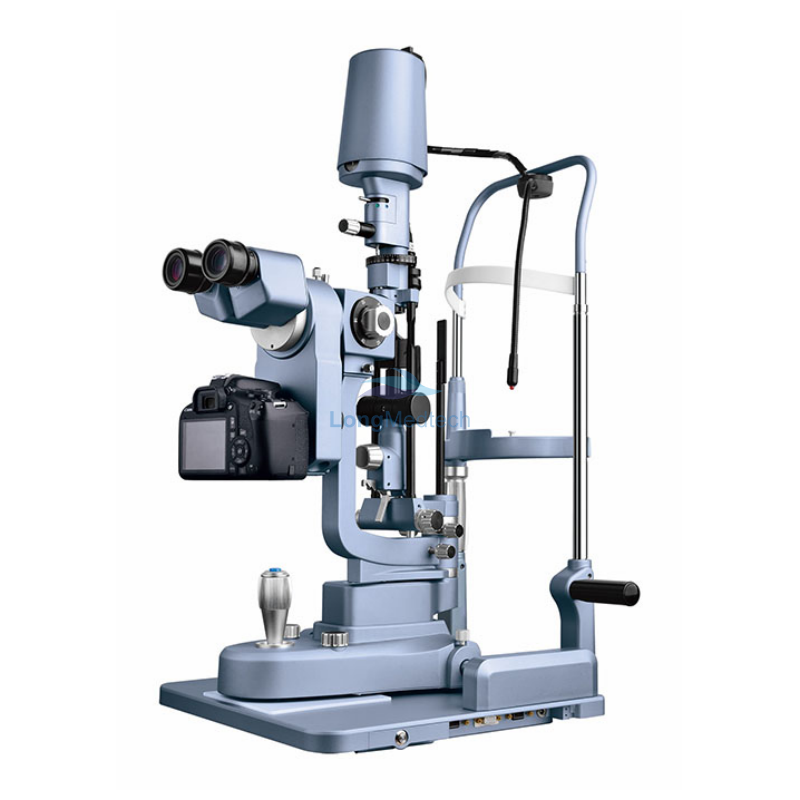

LLX25
CE
Confuguration :
1. Digital 24 Megapixels DSLR camera (Cannon 1500D)
2. Automatic exposure
3. Automatic optimization
4. Automatic eye position recognition
5. Illumination background light
6. 1080p dynamic video
Technical Parameters
·High-performance Optical microscope
Providing all the basic functions of Slit Lamp, it is equipped with the Excellent optical performance, making it possible to observe all structures of the in fine detail.
·Led Light Source
LED illumination provides bright and sharp illumination. Comfort to the patient during the examination due to the lack of heat.
·Built-in Yellow Filter
Built-in yellow filter combined with cobalt-blue filter increases the contrast of sodium Fluorescein Staining image. Easy to operate, up the yellow filter knob.
·Metal Furnish Appearance
Magnification Select Dial, Chin-rest Elevation Adjustment Knob, Joystick are made by metal material, enhance the metallic finish.
·Easy Installation
Integrated Metal plate design – Abandoned traditional power box, Applied Adaptor for power, Make it easy to install with Combined table and Moveable.
| Specifications: | |
| Microscope | |
| Microscope Type | Galilean Stereoscope microscope |
| Magnification selection | 5 Steps by drum rotation |
| Eyepieces | 12.5x |
| Magnification Ratio(Field of View) | 6x(33mm), 10(22.5mm), 16(14mm), 25x(8.8mm), 40x(5.5mm) |
| PD adjustment | 50mm ~ 82mm |
| Diopter adjustment | +7D ~ -7D |
| Base | |
| Left and right move | 110mm |
| Forward and back move | 90mm |
| Up and down move | 30mm |
| Chin rest | |
| Up and down move | 80mm |
| Fixation Lamp | Red LED |
| Property of illumination | |
| Slit width | 0 ~ 14mm continuous (at 14mm，slit becomes circle) |
| Slit height | 1 ~ 14mm continuous |
| Slit angle | 0~ 180° adjustable |
| Slit inclination | 0°,5°,10°, 15°,20° |
| Light spot diameter | Ф14mm, Ф10mm, Ф5mm, Ф3mm, Ф2mm, Ф1mm , Ф0.2mm and 1 ~ 14mm continuous |
| Filter | Heat absorption ,Grey, Red-free ,Cobalt Blue, Built-in Yellow |
| Illumination Bulb | LED |
| Power | |
| Input voltage | 110V/220V AC |
| Frequency | 50/60HZ |
| Input Power | DC7.5V 6A |
| Weight and size | |
| G.W | 25kg |
| N.W | 20kg |
| Dimension | 700mm(L)× 540mm(W)× 550mm(H) |
