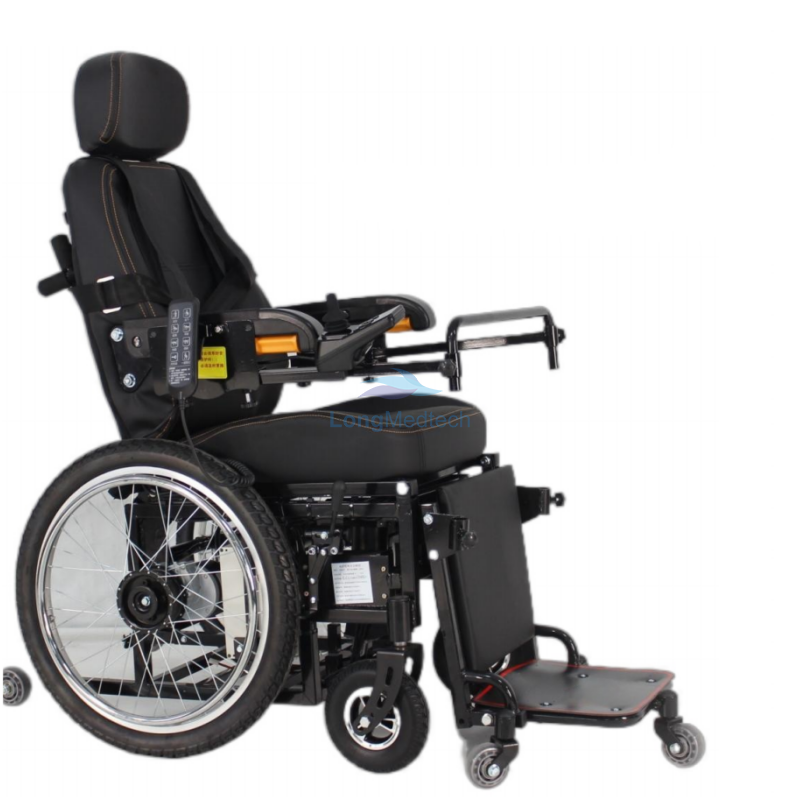

LMEW-1321 Electric Standing Wheelchair

Advantage:

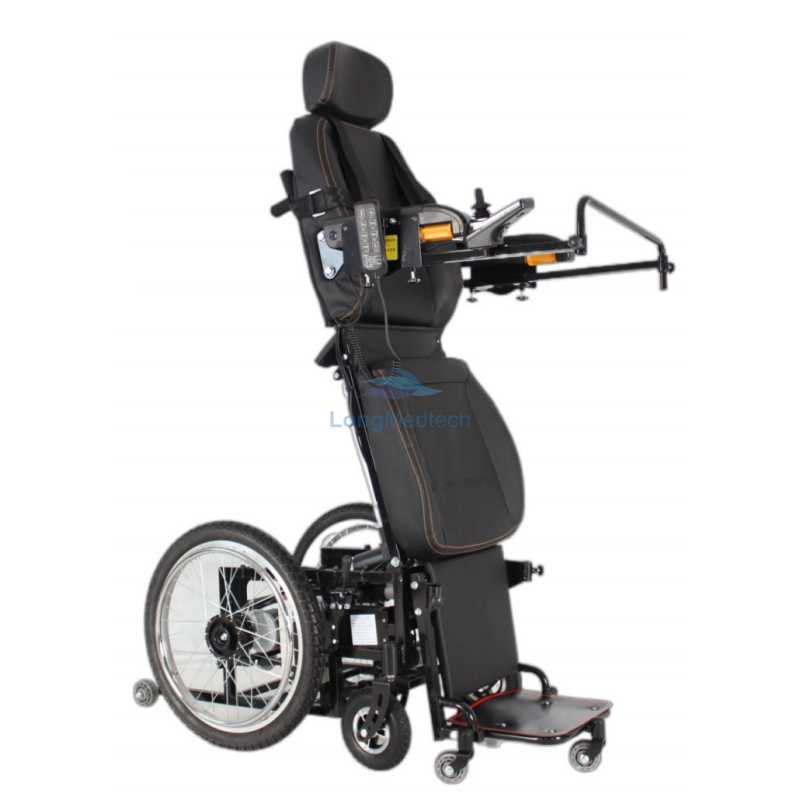

1. Fullback H2 and Fullback H3 are electric standing wheelchairswith the same function and different wheel specifications. It has thefunctions of electric standing, lying flat, leg lifting, standing and walking,which can effectively relieve bedsores and muscle atrophy caused bysitting for a long time and relieve stress.




2. Thickened soft seat, comfortable ride experience.




3. The defender H2 large wheel model is equipped with a hand wheel ring,which is flexible and convenient for manual control.

Parameter:

Product size (length * width * height) : 125*65*130cm

Package size (L *W*H):132*70*68cm

Weight: [Guard H2 naked car 63kg with standard battery 75kg Guard H3naked car 66.5kg with standard battery 90.5kg]

Battery specifications: 24V20AH lead-acid battery is standard for fullbackH2, 24V40AH lead-acid battery is standard for fullback H3 (higherspecification battery is optional)

Motor specifications: Guard H2 adopts two 24V250W, guard H3 adopts two24V350W

Control mode: One-hand 360° universal rocker controller

Brake mode: electromagnetic brakeMaximum speed: 5-8 km/h

Range: 10-35km depending on the battery capacity

Front wheel size: 8 inches

Rear wheel size: 22 inches for the back H2 and 16 inches for the back H3

Other size parameters (unit cm) :

Seat cushion [Width: 50l depth: 46l ground height: 57]

Seat back [Width: 47| Height: 52]

Seat headrest [Width: 28| Height: 20]

Seat armrest [inner width: 47 outer width: 59]
