Product classification: Tri-group blood analyzer
Product features
| Quantity: | |
|---|---|

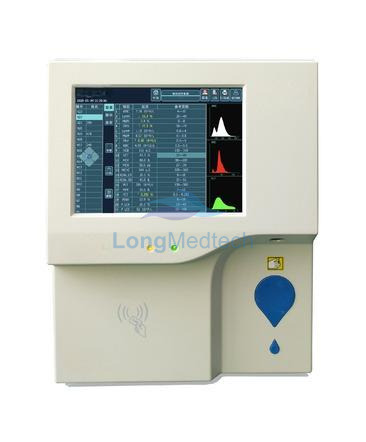

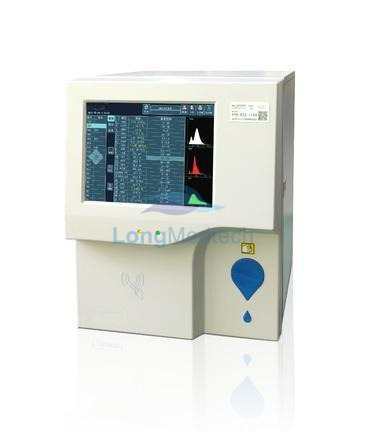

LMHA-360
Product details
Rich product capabilities
1. Fully automatic three-classification, 21 detection parameters + 3 histograms
2. Venous blood, peripheral blood, pre-dilution
3. The solid-state hard disk automatically saves, including sample test results, graphics, sample information, and sample abnormality prompts
Pleasant experience
1. Multi-user rights management
2. Standard thermal printer, support various external printers
3. A variety of print formats are optional, and customized print templates are supported
4, a variety of reference value ranges, support user-defined
5. Rich quality control calibration functions
6. Chinese prompt sample abnormal information
7. It can be turned on for 24 hours, and the sleep time can be customized
Convenient human-computer interaction

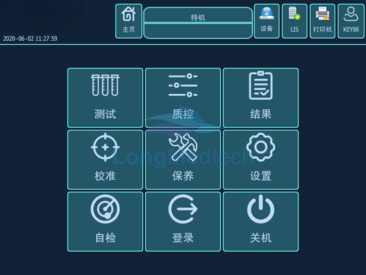

1. Color touch screen, graphic display
2. Chinese operation, support multiple languages
3. Keyboard and mouse input, support barcode scanning (optional)
4. One-key maintenance to eliminate faults
Intelligent reagent management function
1. Original supporting reagents and maintenance reagents
2. Reagent information and residual graphic display
3. Supporting consumables: high, medium and low quality control blood, concentrated cleaning solution
Powerful data management system
1. Support wireless connection: WiFi, Bluetooth and other wireless data transmission, such as: wireless printing, LIS connection, laboratory LAN

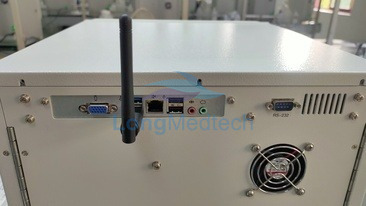

2. Rich interfaces: USB, LAN, RS232, HDMI
3. Two-way LIS communication, HL7 and other transmission formats
4. Support remote diagnosis, data import and export, offline reading
Test Items
White Blood Cell | WBC | Red Blood Cell Specific Volume | HCT |
Neutrophil# | NEU# | Mean Cell Volume | MCV |
Lymphocyte# | LYM# | Mean Corpuscular Hemoglobin | MCH |
Monocyte# | MON# | Mean Corpuscular Hemoglobin Concentration | MCHC |
Eosinophil# | EOS# | Red Cell Volume Distribution Width-Coefficient of Variation | RDW-CV |
Basophil# | BAS# | Red Cell Volume Distribution Width-Standard Deviation | RDW-SD |
Neutrophil% | NEU% | Platelet | PLT |
Lymphocyte% | LYM% | Mean Platelet Volume | MPV |
Monocyte% | MON% | Platelet Distribution Width | PDW |
Eosinophil% | EOS% | Plateletcrit | PCT |
Basophil% | BAS% | Platelet-Large Cell Ratio | P-LCR |
Red Blood Cell | RBC | Platelet-Large Cell Count | P-LCC |
Hemoglobin(Concentration) | HGB | ||
Technical Specifications
Parameters | 5-part WBC Differential |
25 Reportable Parameters | |
2 Histograms | |
2 Scatter Grams | |
Abnormal Sample Alarm | |
Sample Mode | Whole Blood (Venous/Capillary),Pre-dilution |
QC Methods | L-J QC,X-B QC |
Power Supply | 100-240 V~ 50/60 Hz |
Weight | 21 kg |
Dimension | 328 mm x 471 mm x 446 mm (L x W x H) |
Data Storage | 10000 |
Screen Type | 10.4 inch Resistive Screen |
Operating Conditions | 18~30℃,≤80％ Relative Humidity,75 kPa~106 kPa |
