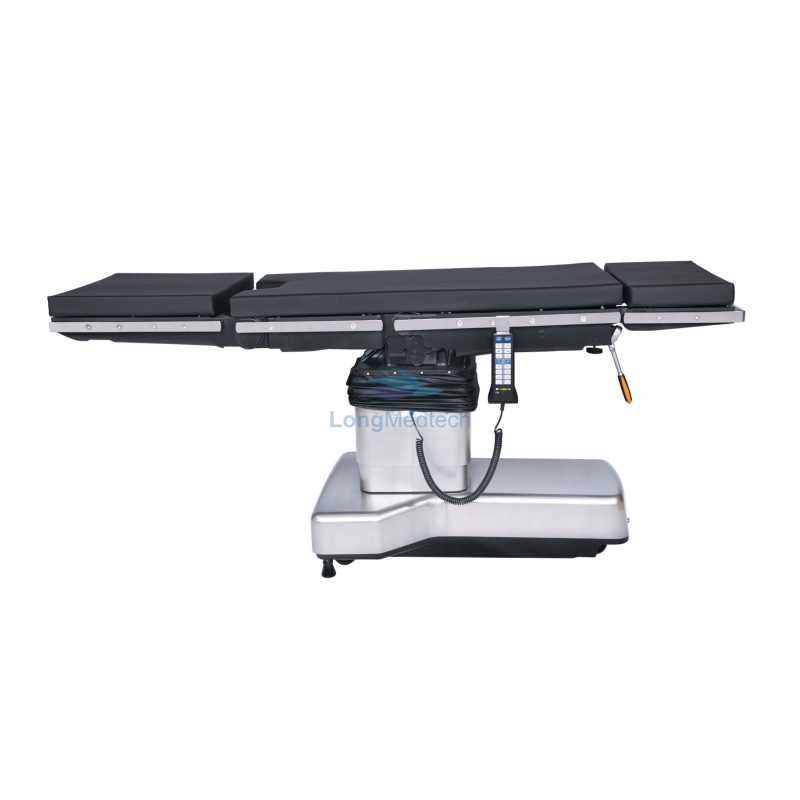

LOL320
FEATURES
The complete hydraulic system adopts the German HOERBIGER brand.
The head board can be inserted into the leg board, which can meet the needs of whole body barrier-free C-arm inspection and filming.
The mattress is made of imported artificial leather wrapped with high-density memory foam and formed at one time without any gaps.
There are two control modes: handheld remote controller and panel controller, with self-locking function.
With one key to form "ʌ" shape and "V" shape, it is convenient for operation.
AC and DC dual purpose, CPU control, with one-key reset function.
The table support frame is made of aluminum alloy die-casting, which will never rust.
The side rails and accessories of the table are made of high-quality 304 stainless steel,the base and the column cover are made of stainless steel for one-time molding.
Built-in casters, combined with electric brakes, which can shift the operating table.
TECHNICAL SPECIFICATION
Length:2000±100mm
Width:500±20mm
Height Adjustment:(720-1020)±20mm
(Maximum and minimum height of the platform)
Back board fold upward:≥58°
Backboard fold downward:≥16°
Forward:≥26°
Backward:≥17°
Leftward and Rightward:≥18°
Head board fold upward:≥90°
Head board fold downward:≥90°
Leg board fold upward:≥79°
Leg board fold downward:≥90°
Waist board lifting:≥100mm
Main Voltage:AC 220±10% 50Hz
Input power:500VA
