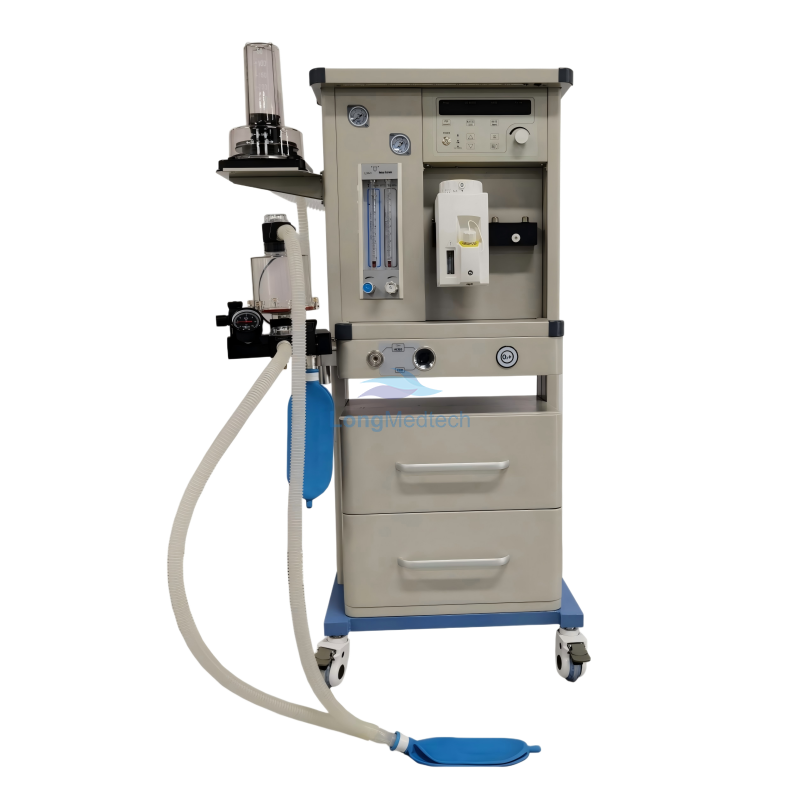

LSDF-100 Anesthesia Machine

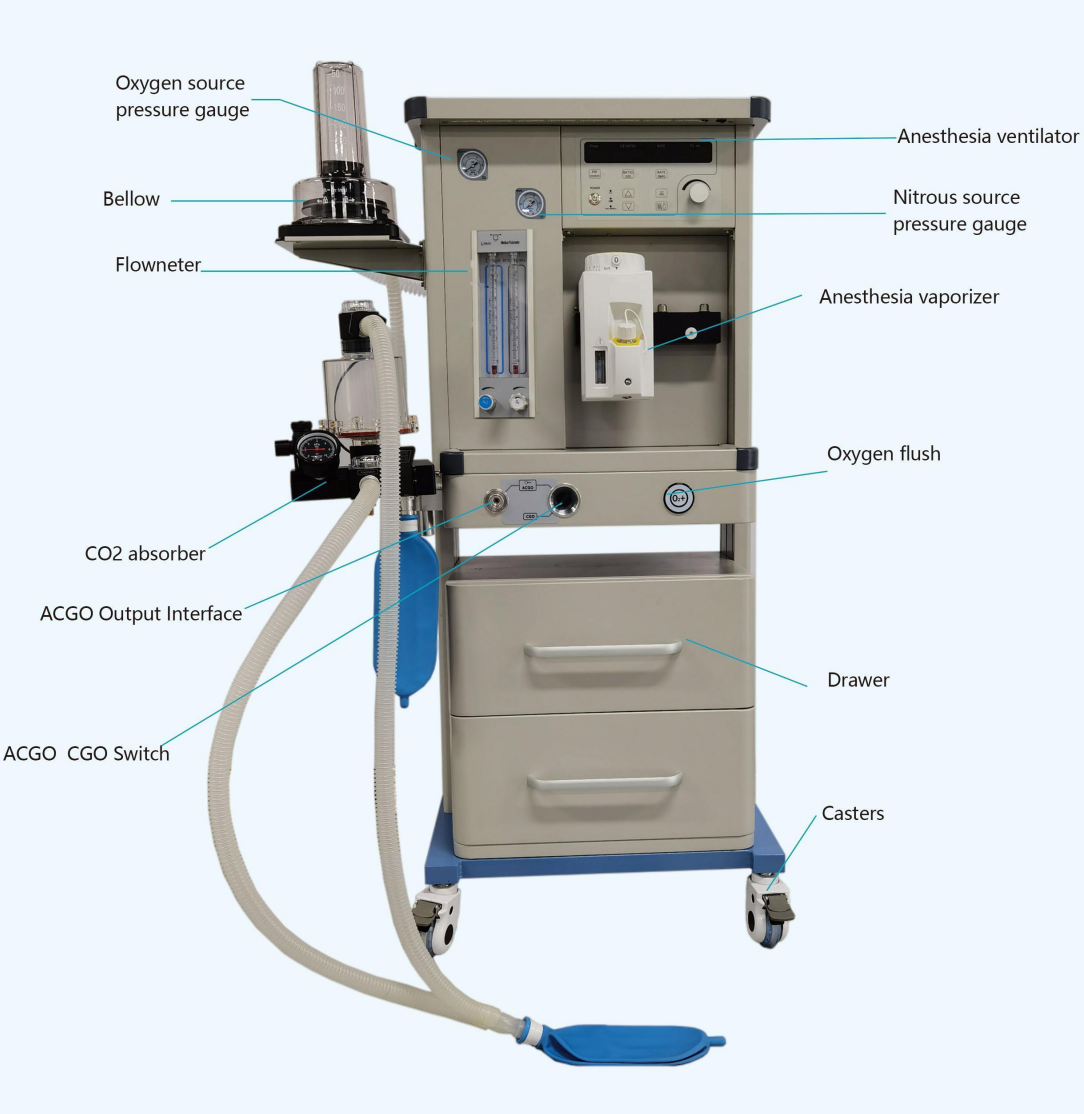

Feature

• With smart Electro-pneumatic ventilator

• ACGO output interface with swich in front of machine

• Suitable for a range of anesthesia at adult&pediatric

• Integrated absorber design with good cable management solution,convenient to discharge and install timely

• High precious anesthesia vaporizer with temperature,flow and pressure compensation

• Top-light system design provide more good vision

• Built-in backup battery provide the emergency power supply to the unit

• Space saving compact design

• Alloy frame, humanized handle, easily and conveniently move the machine to any place.

• Adopting stainless pressure gauge, both gas supply and working pressure could be monitored.

• The pressure range is 0-1 MPa, reading scale is 0.05

• With special protection device for Power Socket and Standby Power Socket, so as to avoid any accidents

• Audible O2.failure warning device

• Four Anti-static castors(2 with brakes)

• 2 large drawers with big storage space (spport three drawer optional)

• O2$N2O yoke sytem optional as required.

Technical Specification

Working Mode:Closed,Semi-closed, semi-open system, Open

Technical Specification

Ventilation mode:PPV,Manuel

Driven mode:Pneumatically driven manual controlled

Parameters Setting

Application:Adult and pediatric

Bellow:Adult& pediatric bellow

Display:LED digital display

Monitoring:Tidal volume,breathing rate,l:E ratio,Peak airway pressure,

TV:50~1600mlBreathing rate:4~60bpm

l:E ratio: adjustable1:1~1:4adjustable

Upper airway pressure:2~6kpa

Lower airway pressure:0.6~2kpa

Battery low alarm Battery no power indicator Alarm Silence

Manuel/Auto Switch

Anesthesia gas source switch:start or stop the gas source controlPressure Gas Gauge:four press gauge;one is oxygen source pressure

one is oxygen working

one is N2O ource pressure

one is N2O working

Alarm parameter:Upper tidal volume alarm,low oxygen alarm,Apnea,Power failureHigh precious anesthesia vaporizer, the agent output is continuous and stable, and precise, the agent type: IsofluraneEnflurane,halothane,sevoflurane.Oxygen flush:25L/min~75L/minAirway pressure:O2: 0.25Mpa~0.65Mpa

N2O: 0.25Mpa~0.65Mpa

Power: 220V+10%,50HZ+1 % or 110V+10%,60HZ+1%

Flowmeter:

O2&N20 flowmeter

Two tube:02:0~10L/min,N20:0~10L/min

with hypoxic guard system

Make sure the oxygen concentration not lower than 25%O2& Air Flowmeter OptioanlO2&N2O& Air Flowmetr Optional

CO2 absorber:

Integrated and sterilized at 134°C high temperature and high pressure--Visiable inspiration valve and expiration valveSafety valve pressure limit:6Kpa

Quick change soda lime system

Good air tightness,high reliability and minor respiratory impedanceManual/ventilation switch

Vaporizer: Dvapo200plus, Selectatec bar mounting type
