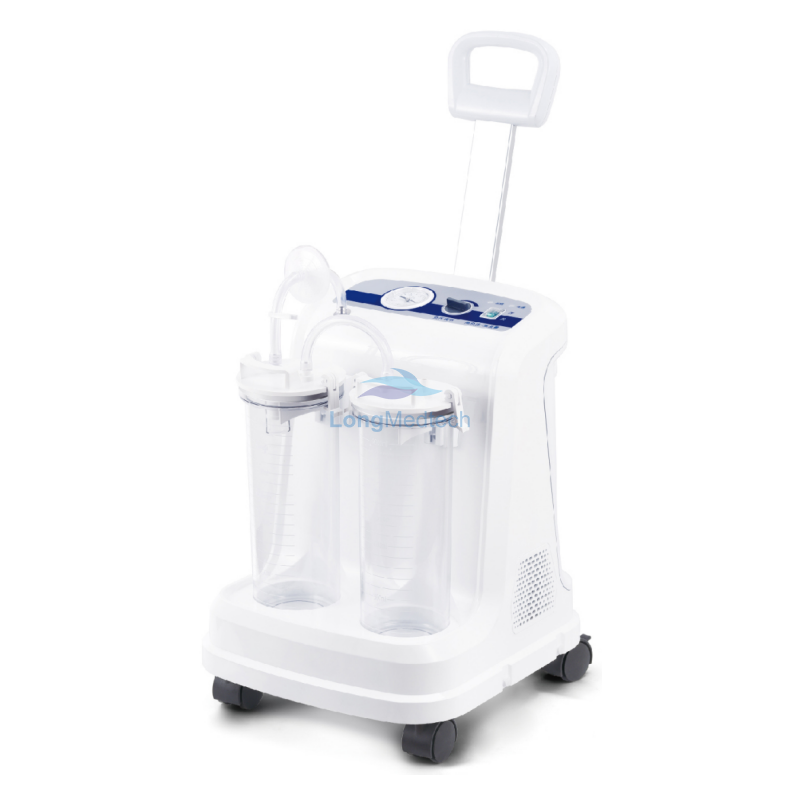

LSF-10 Electric Suction Apparatus

Product overview

• An oil-less vacuum pump, double piston cylinder with a high flow,high vacuum, needs maintenance free.

• Move smoothly and freely with a swing-type pull handle.

• Large-bore and large capacity bottles with stopper having sealingring, easy to clean and to open or close.

• A hydrophobic Filter provides an effective barrier against contamination.

• The over flow protection device is intended to prevent liquid or solidparticles from entering the intermediate tubing and pump.

• The level of vacuum required in clinic can be controlled by adjustingthe vacuum regulator, and a synchronized indication on the vacuum meter.

• A brand new plastic shell, stability and durability, low noise, safe andreliable to operate.

• The foot switch adopts a pneumatic control structure, ensuring safeand reliable operation.

Specification parameter

• Max vacuum:>0.09MPa (680mmHg)

• Vacuum range:0.02MPa(150mmHg)~Max Vacuum

• Flow rate:>32 L/min

• Noise: ≤ 65 dB(A)

• Bottle capacity: 2000 mLx2 (PC)

• Power supply: ~220V 50Hz

• Power input: 180 VA

• Dimension: 370mmx440mmx510mm

• Package Dimension: 465 mmx535 mmx575mm

• G.W./N.W.:15kg/12.5kg
