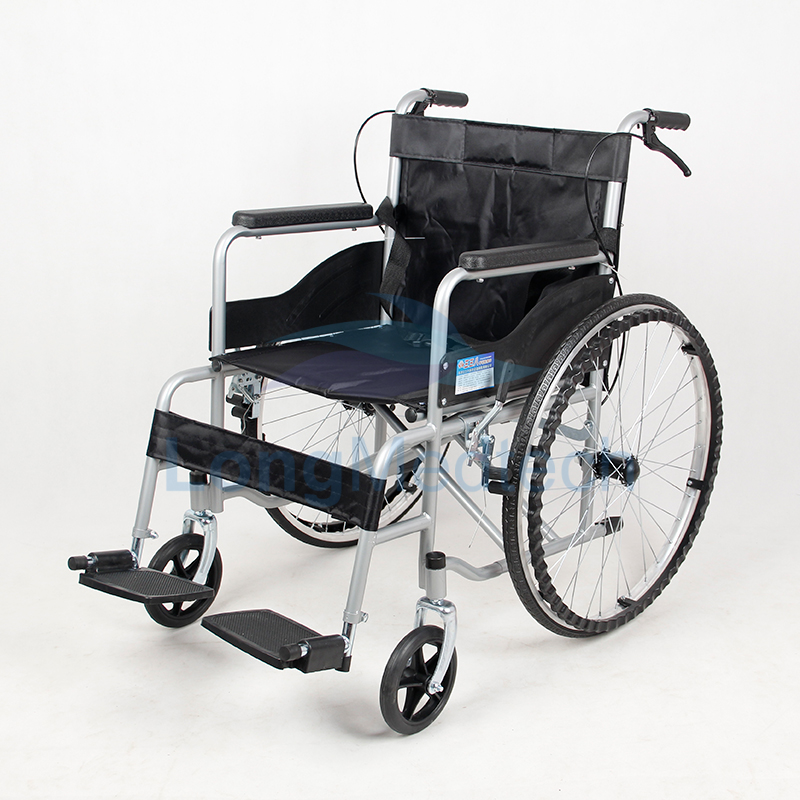

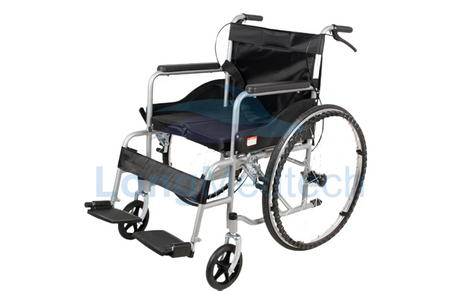

LTB-121 Wheelchair

1. Frame: Constructed from welded Ø22mm x 1.0mm high-quality steel pipes. Features fixed armrests and footrests, secure locking mechanisms, and an electrostatically sprayed finish.

2. Front Wheel: 7-inch solid front wheel with an integrated stamped metal crank arm for high strength and resistance to deformation.

3. Rear Wheel: 24-inch solid tire with an aluminum alloy profile and 36 spokes. Features a high-strength double-wave handwheel rim with a non-slip design.

4. Brake: A steel toggle brake mechanism lowers below the seat surface when engaged, making it easier for riders to get on and off. The rear handlebar features a hand-operated brake with a brake function.

5. Seat Cushion: 600D Oxford cloth cushion for breathable comfort, with secure, neat seams. Armrest: High-quality ABS armrest pads.

6. Guard: PP plastic guard.

7. Footrest: High-strength plastic footrest with adjustable height.

8. Seatbelt: Thickened snap-fastener seatbelt.

9. Equipped with a leg guard to prevent the calf from sliding backward, providing added safety.

10. Specifications: Folded width 27cm, seat depth 42cm, seat width 45cm, seat height from the ground 45cm; Wheelchair dimensions (cm): 103*68*88.

11. Load capacity: 100KG.
