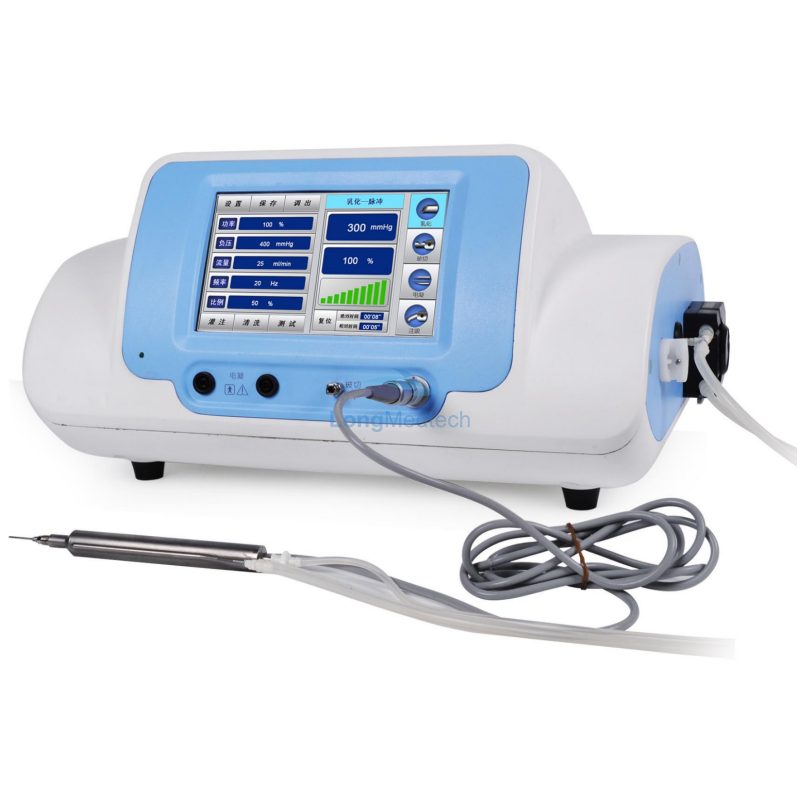

LTG-200 Phaco Emulsifier

Smaller & Easier & More Powerful

• All parts of the system are fully controlled and monitored by Microprocessor Technology

• Smoothly and efficiently controlling the emulsifier process with digital frequency tracing technology of handpiece

• Easy operation and user-friendly interface with large touch screen TFT and functional menu

• Up to 10 sets of parameters preset meets different requirements and simplifies the surgery operation

• Auto test checks tubing and handpiece problems (e.g.: block or leakage)

• The peristaltic pump gives complete control of aspiration flow rate as well as freedom from anterior

• chamber shallowing. This way can give stronger sution when working in I/A

• Built-in vitrectomy and cautery.

• Intelligent voice reminder

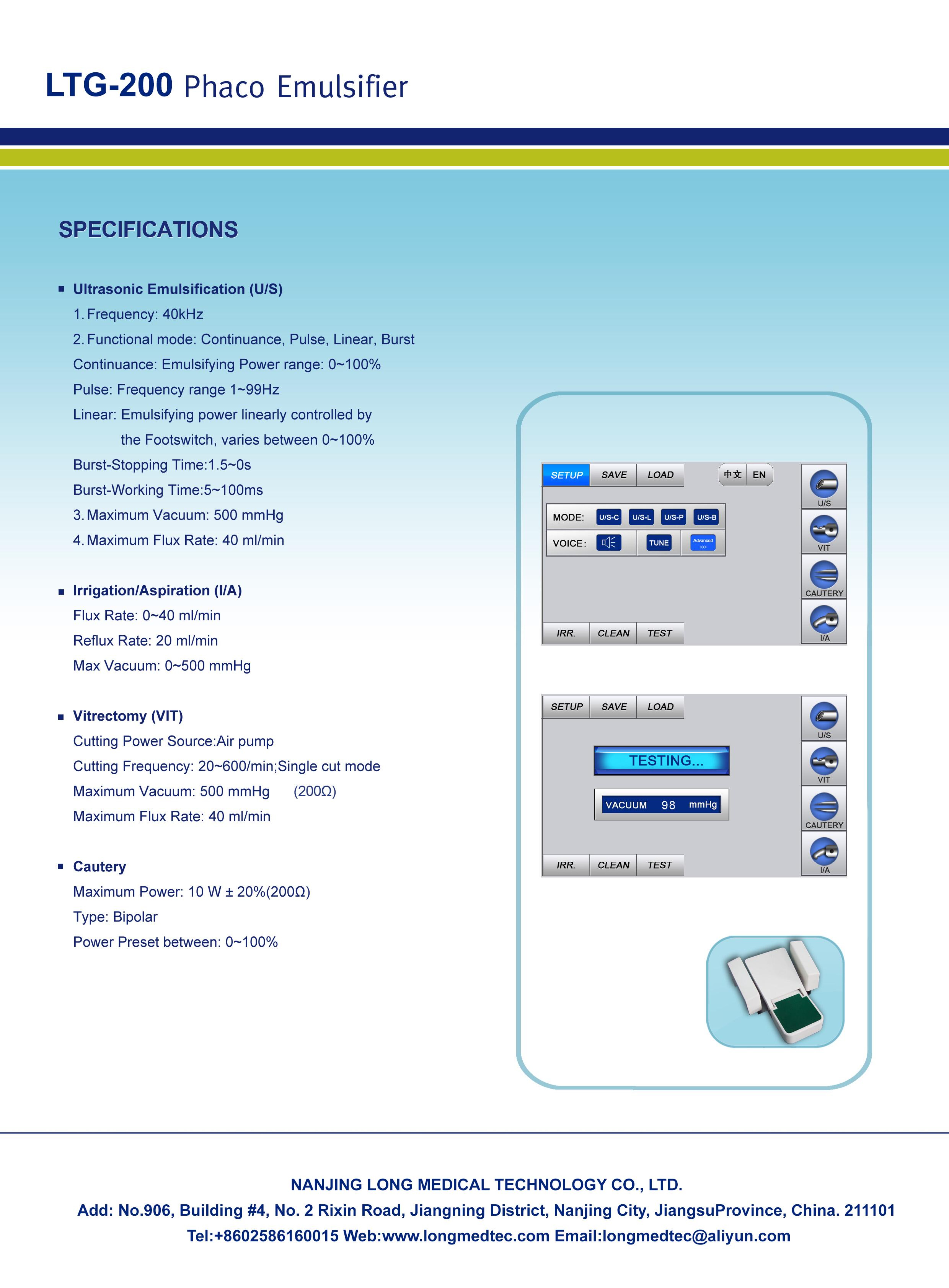

SPECIFICATIONS

Ultrasonic Emulsification (U/S)

1. Frequency: 40kHz

2. Functional mode: Continuance, Pulse, Linear, Burst

   Continuance: Emulsifying Power range: 0~100%

   Pulse: Frequency range 1~99Hz

   Linear: Emulsifying power linearly controlled by the Footswitch, varies between 0~100%

   Burst-Stopping Time:1.5~0s

   Burst-Working Time:5~100ms

    3. Maximum Vacuum: 500 mmHg

    4. Maximum Flux Rate: 40 ml/min

Irrigation/Aspiration (I/A)

        Flux Rate: 0~40 ml/min

        Reflux Rate: 20 ml/min

        Max Vacuum: 0~500 mmHg

        Vitrectomy (VIT)

        Cutting Power Source: Air pump

        Cutting Frequency: 20~600/min;

        Single cut mode

        Maximum Vacuum: 500 mmHg (200Ω)

        Maximum Flux Rate: 40 ml/min

        Cautery

        Maximum Power: 10 W ± 20% (2002)

        Type: Bipolar Power Preset between: 0~100%
