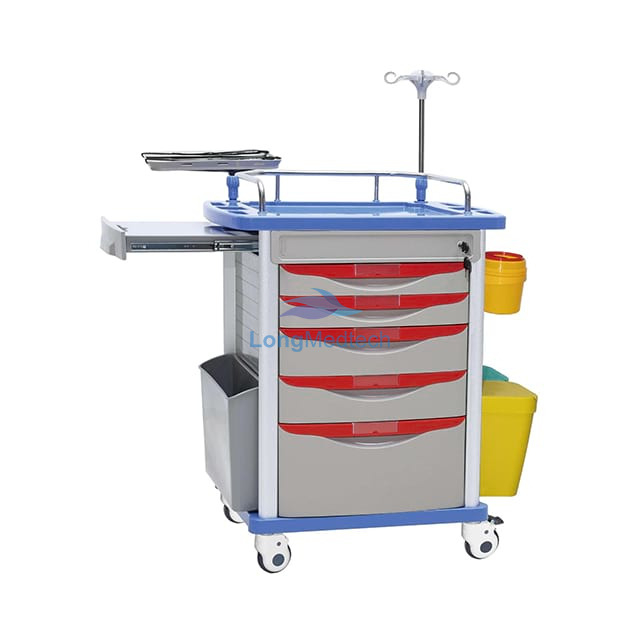

LXW-661 Ambulance

1. The product is mainly composed of aluminum,steel,and ABS engineering plastics structure;aluminum alloy triangular columns and four columns bear the weight.

2. Upper body: The table is formed by large-scale ABS injection molding,with handrails on both sides of the table,and the concave design can prevent items from sliding.The table is equipped with stainless steel guardrails;the guardrail height is 95mm,the size of the table is 530*480mm,and the table is equipped with transparent soft glass.

3. Left side of the vehicle: embedded multi-purpose platform (the platform can be interchanged with the right infusion stand),embedded retractable hanging plate design auxiliary workbench,detachable large storage box.

4. Right side of the vehicle: retractable infusion stand made of ABS engineering plastic material,can load 2-5KG,four revolving hooks (the infusion stand can be interchanged with the left platform),rotating 3-liter round sharps box,flip-top color separation trash can 175*175*280MM,two-color for garbage classification (yellow medical waste is harmful garbage,green domestic garbage is infectious garbage)

5. Behind the vehicle: CPR board (defibrillator board),hidden retractable oxygen cylinder bracket does not take up space,movable power plug board is convenient for changing power supplies in different countries.

6. Front of the vehicle: central lock is rotatable,equipped with five layers of large and small drawers,three-fold silent rails,the first and second layers of small drawers are 80mm,the inner space is:508*358*68mm,two middle drawers are 120mm,the inner space is:508*358*110mm,one deep drawer is 240mm,the inner space is:508*358*220mm,3*3 dividers in the drawer,which can be freely divided,the drawer handle is dovetail type,and the anti-theft sealing slot identification plate size is:115*29mm.

7. Bottom of the vehicle: four 4-inch luxury universal plug-in silent wheels,two of which have brake function.

Packing data: 870*575*935mm/46.5kg.
