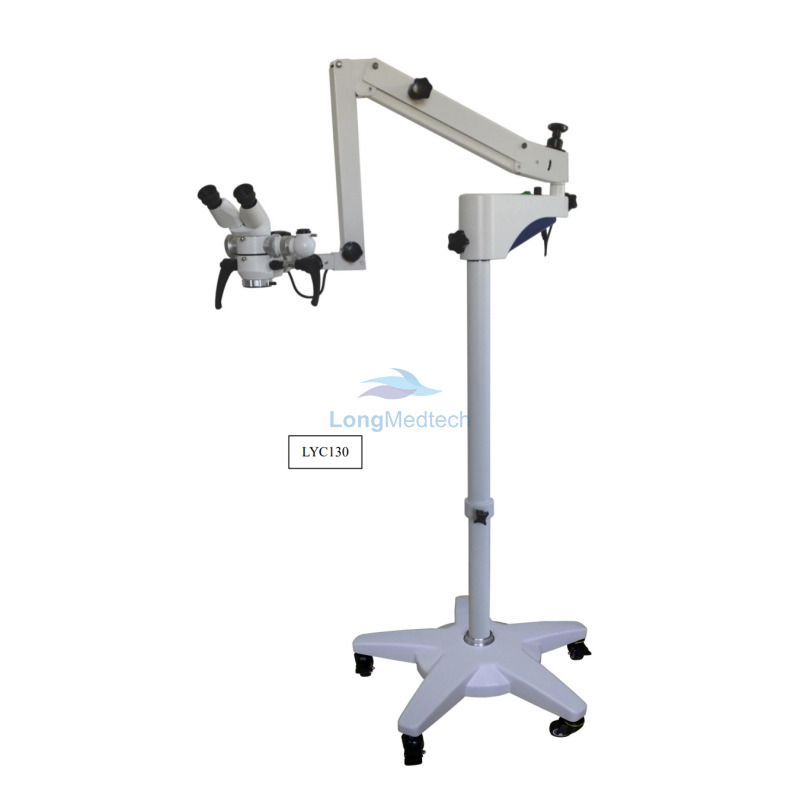

LYC120 LYC130 Operation Microscope

Operation Microscope Model L Y C 1 2 0 or LYC130 ( hereafter referred to as simplyinstrument) is a medical optical instrument with multiple function and application. The optical system of the instrument equipped with magnification change systemwhich offers 3-step magnification change. Fine focusing can be done by objectivefine adjusting lever. Two objectives are available for different working distance andmagnification. The illumination system of the instrument adopts coaxialillumination with 10W LED light source. The optical system of the instrument isfitted with a beamsplitter, which makes video camera adapter and demonstratorattachable. The demonstrator is optional.

The instrument is suitable for various diagnosis, examination and generalmicroscope operation. Photos or moving photos can be taken during operation afterconnecting CCD camera or digital CCD camera with instrument. Due to its flexibleand stable structure and easy operation, the instrument can be widely used inear-nose-throat, ophthalmology, gynecology and dentistry departments.

Quantity:
Availability:





Inquire Add to Basket

Model:
LYC120 LYC130

Ophthalmic Microscope Surgical Microscope Red Reflex Enhancer Slit illumination

Product Description

The environment for use

a) Transport and Storing

Ambient Temperature Range: -40℃-55℃
Relative Humidity Range: 10%-80%
Barometric Pressure Range: 500 hPa-1060 hPa

b) Operation

Ambient Temperature Range: 5℃-40℃
Relative Humidity Range: 30%-80%
Barometric Pressure Range: 700 hPa-1060 hPa

1. Precautions

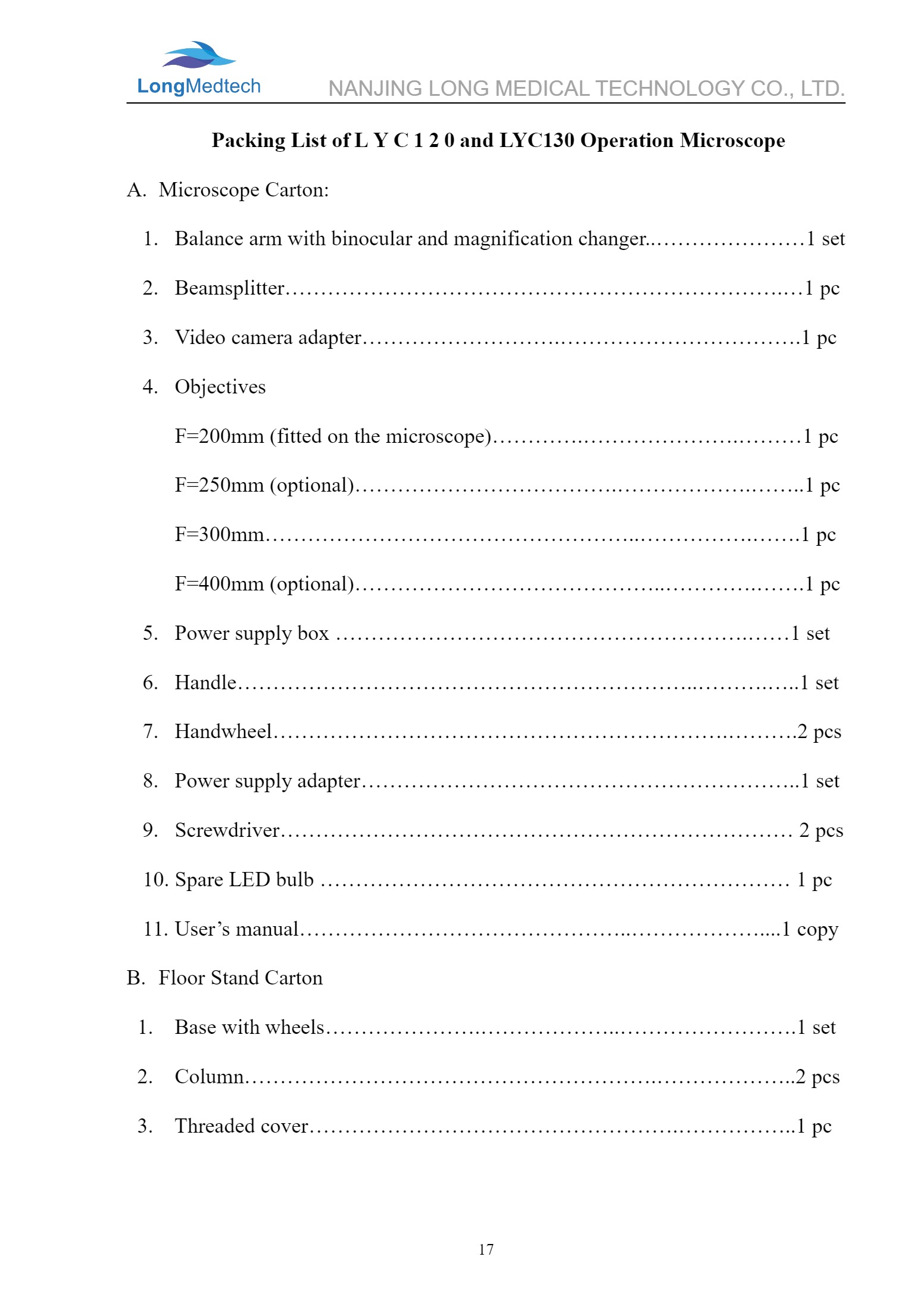

1.1 After unpacking the carton, check the parts against the packing list first. Ifthereis any difference, contact the sales department to protect your benefit.

1.2 When carrying and unpacking the carton, pay attention that the arrowonthecarton shall be at upward position. Handle the instrument with caretopreventit from being damaged.

1.3 The instrument shall be used and kept in a clean and dry place withconstanttemperature in order to ensure the lifetime of the component in theinstrument.Before using the instrument, make sure to step down the brakeonthefootwheel to prevent the instrument from sliding to avoid accident. Whenmoving the instrument in the room, it is recommended to push it at thelowerpart to prevent the instrument from being upset and damaged.

1.4 Do not touch the surface of the lens and prism with hand or hard objects.

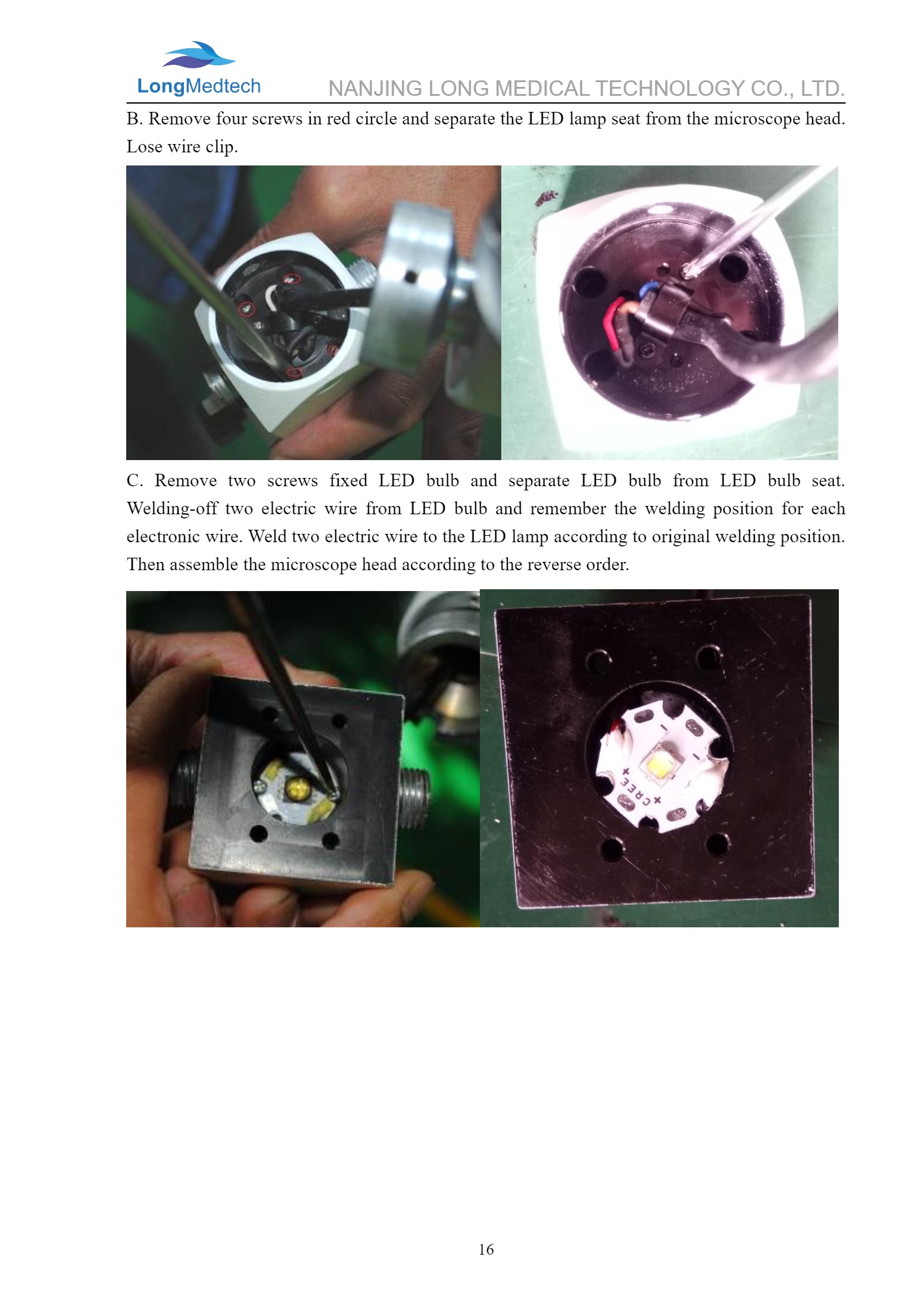

1.5 When the LED bulb is broken and has to be replaced, make sure that thepoweris off and the bulb is fully cool down in order to prevent your fingerfrombeing hurt. Never touch the glass surface of the illumination bulb(LEDbulb)with your finger directly. If the bulb surface is found oily and dirty, it shallbecleaned with flannelette soaked with alcohol before usage.

1.6 The counterweight of the base of the instrument is limited. Whenthearmisstretched, never press the instrument with strong force. Otherwise, theinstrument can go down to get the operator or the instrument itself damaged.

1.7 Before using the instrument, make sure the connecting parts are fastenedoradjusted to right position to avoid accident caused by the failure of theparts.

1.8 Never move any part of the instrument with strong force. Adjustment shallbedone according to the instruction, especially for the operation handle, it shallnot be turned with over force to prevent it from impacting the armtogetthecomponents damaged.

1.9 Power shall be switched off after using the instrument. After use, theinstrumentshall be cleaned and covered with plastic cover to prevent dust.

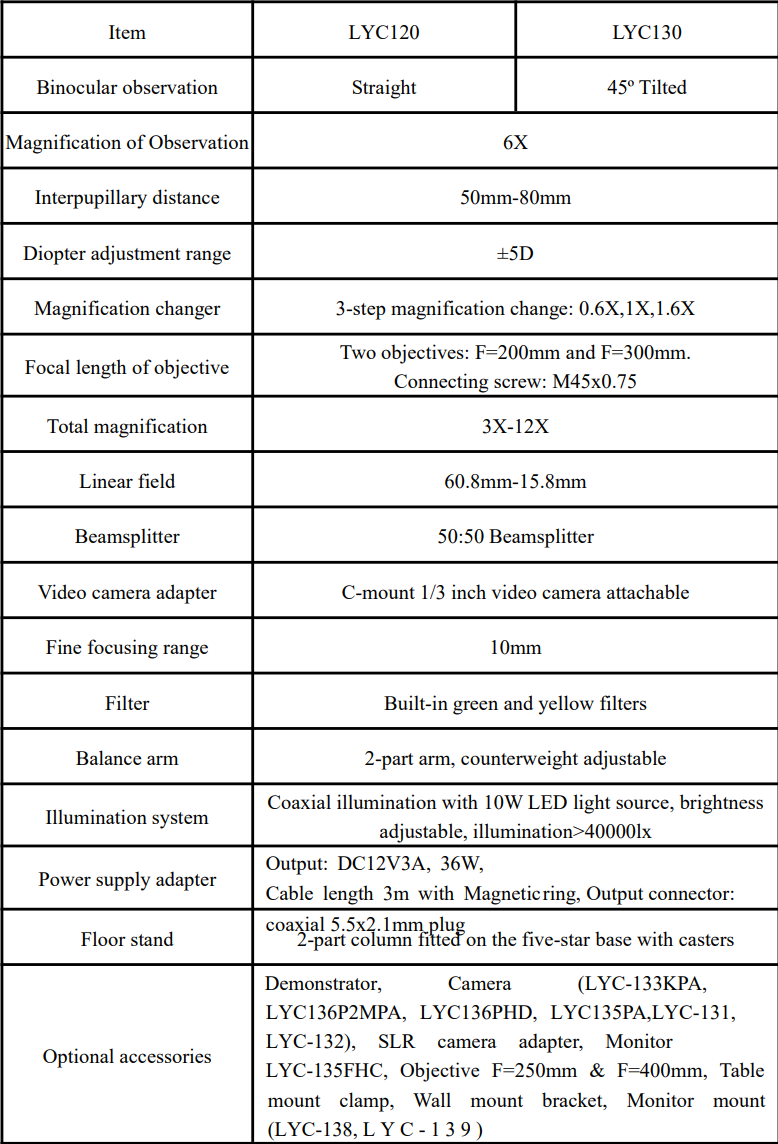

2. Main technical data

2.1 Input voltage: AC100-240V, frequency: 50HZ-60HZ

2.2 Output: DC12V3A, 36W

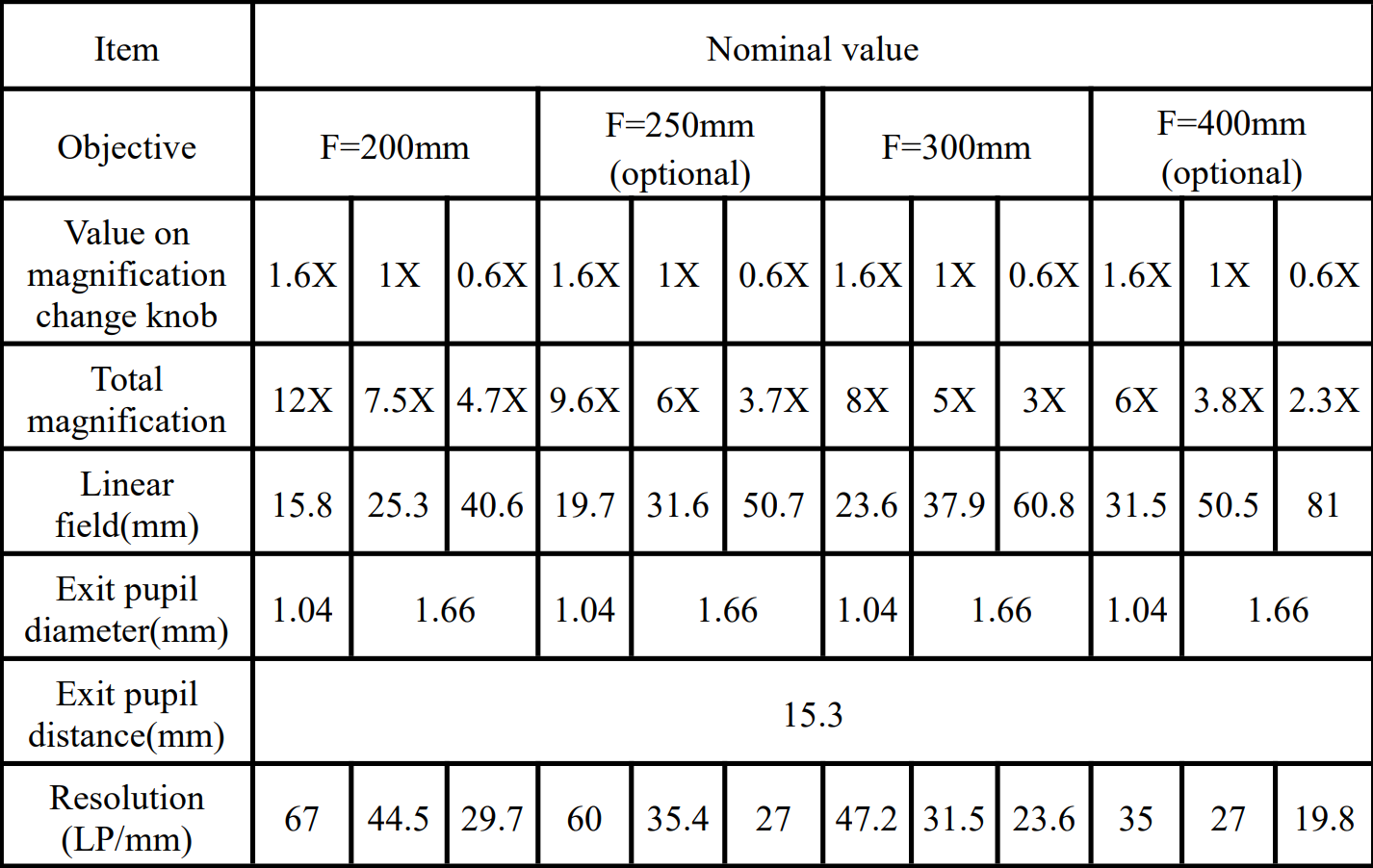

2.3 Optical characteristics for L Y C 1 2 0& LYC130 Operation Microscope：
