Product Category

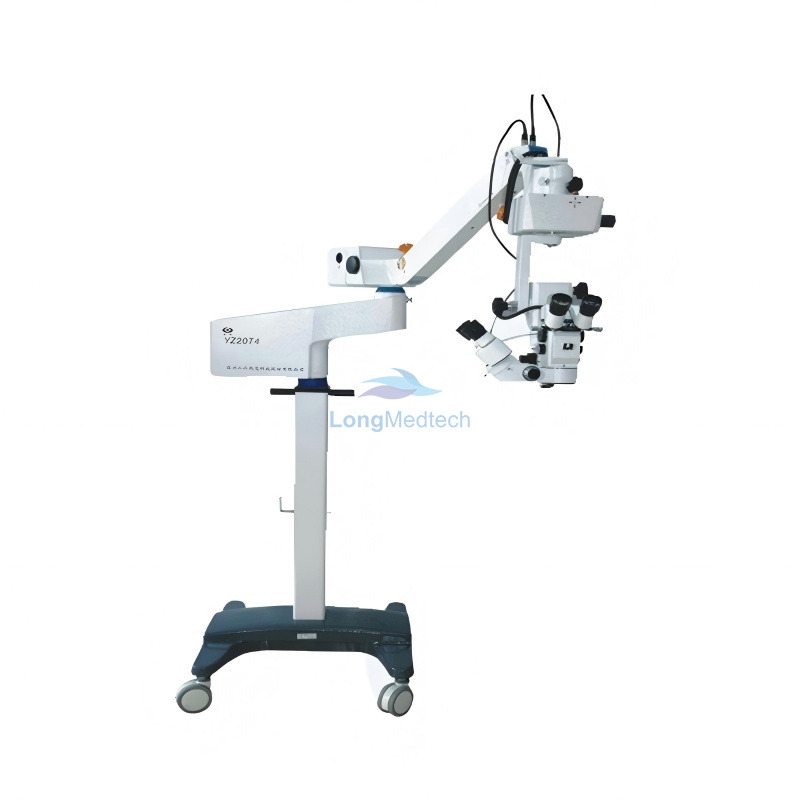

LYQ-10 Operation Microscope

Note:

810*810*340mm500*400*200mm500*400*200mm1200*490*300mm1250*760*330mm710*600*350mm202kg

Operation Microscope main microscope:

f250:3.2x,5x,8x,12.8x,20x;4.2x,6.7x,11x,17x

Magnification for assistant microscope:

10x,16x;f250:5x,8x,12.8x;6.7x,11x

can be rotated Internal beam splitter

Oblique illumination: can also be used as slitillumination and slit width is adjustable

Product Description

Details:

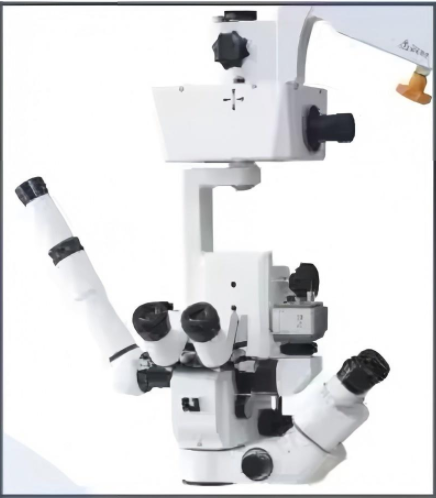

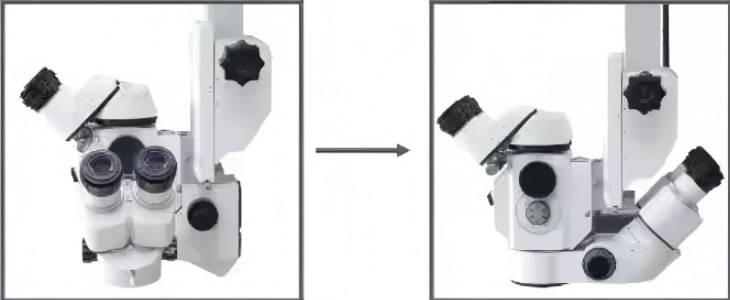

Assistant microscope can berotated to opponent microscope.

Internal beam splitter can beconnected with teaching tube and CCD system.

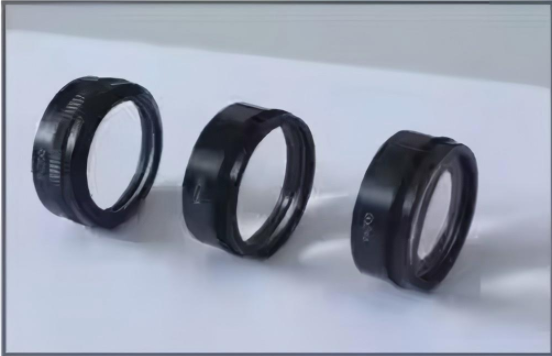

Equipped with three different objective lenses (f200/f250/f300)and applicable in ophthalmic surgery, orthopedic surgeryand hand surgery.

Oblique illumination can also be used as slit illumination and slitwidth is adjustable.

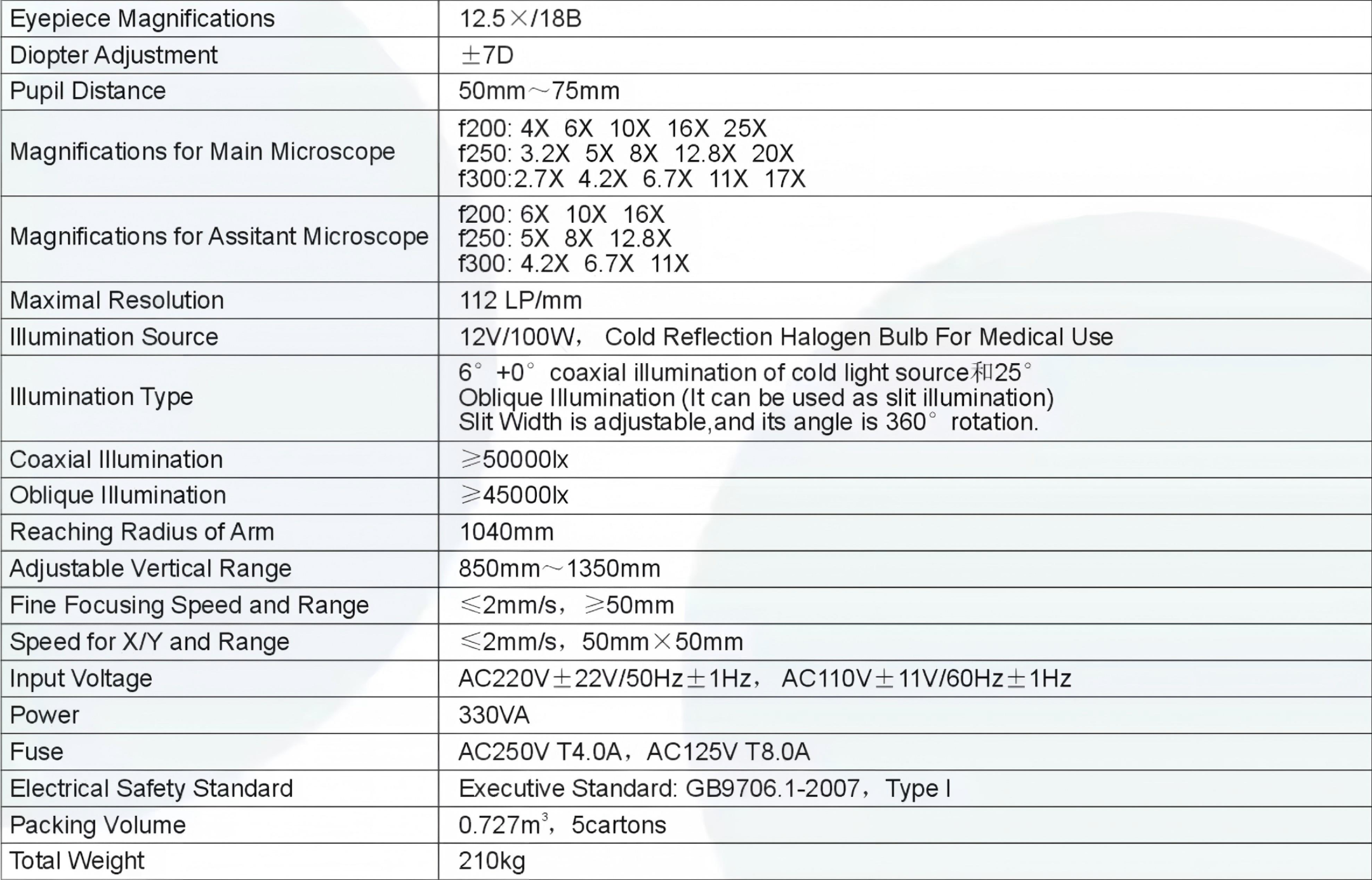

Specifications:
