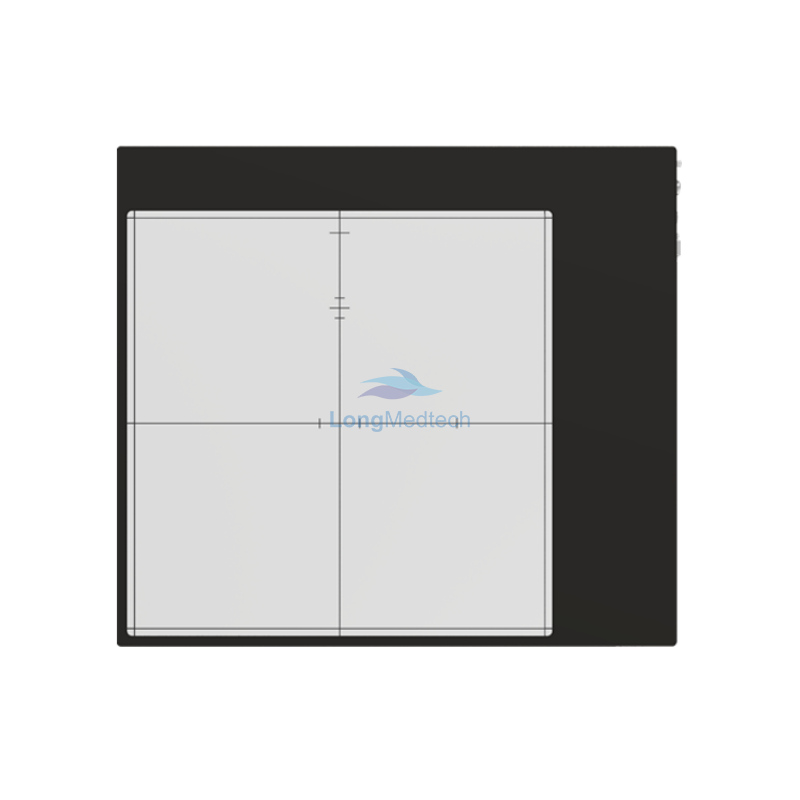

Mercu 1717DE
Mercu 1717DE is one unique high-resolution digital dynamic flat panel detector for the dual-energy CBCT. Utilizing high speed, anti-EMC interference optical fiber communication interface. Adapted to electron linear accelerator.
Features
Proven radiation-hard a-Si sensor design
43cmx43cm effffective imaging area
Technical Parameters
| Mercu 1717DE | |||
| Detector Technology | Amorphous Silicon | Data Interface | Optical Fiber |
| Scintillator | Csl | Operating Temperature (℃) | 10~40 |
| Active Area (inch) | 17 × 17 | Operating Humidity | 30~70 (Non-Condensing) |
| Pixel Matrix | 4260 × 4260 | Storage & Transport Temperature with Package (℃) | -10~55 |
| Pixel Pitch (μm) | 100 | Storage & Transport Humidity with Package (% RH) | 10~95 (Non-Condensing) |
| AD Conversion (bit) | 16 | Dimension (mm) | 477 × 560 × 25 |
| Frame Rate (fps) | 10（1×1） 20（2×2） 30（3×3） 40（4×4） | Weight (kg) | ＜15 |
