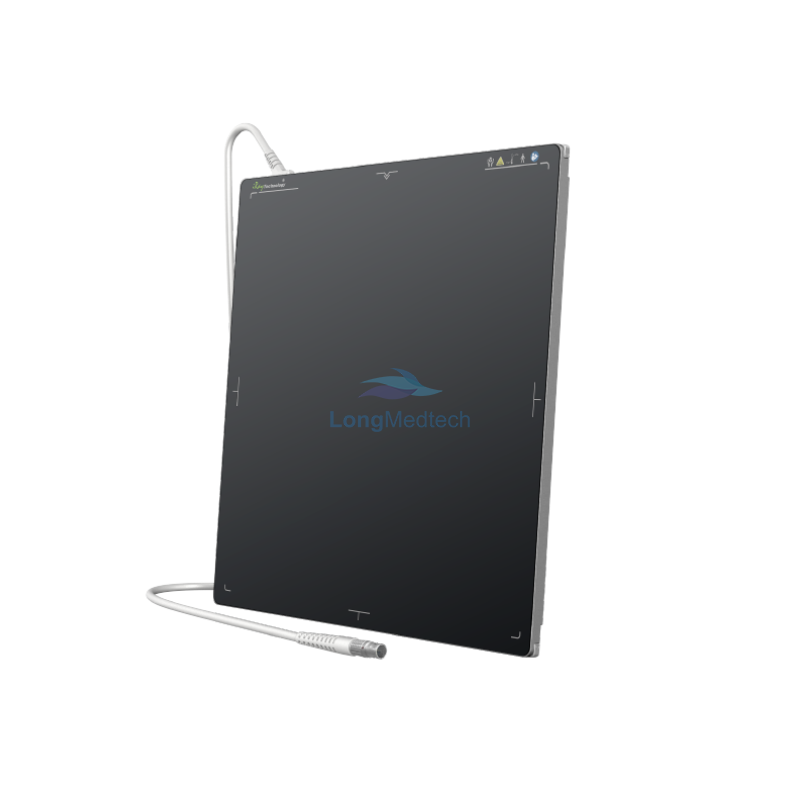

Mercu 1717V3 17×17-inch Dynamic Flat Panel Detector

        Mercu 1717V3 is an a-Si FPD for real-time imaging. The 17×17-inch image sensor has direct deposition Csl, which provides excellent low-dose imaging at frame rates up to 30 fps which provides an excellent resolution for high-end DRF products.

Features

• Extremely low clinical dose at high DQE

• Less than 2.5% first frame lag

• Switchable gain settings for variable

• ROI optional

• High frame rate capable at 5 fps in full resolution,20fps in 2×2, and 30 fps in 3×3

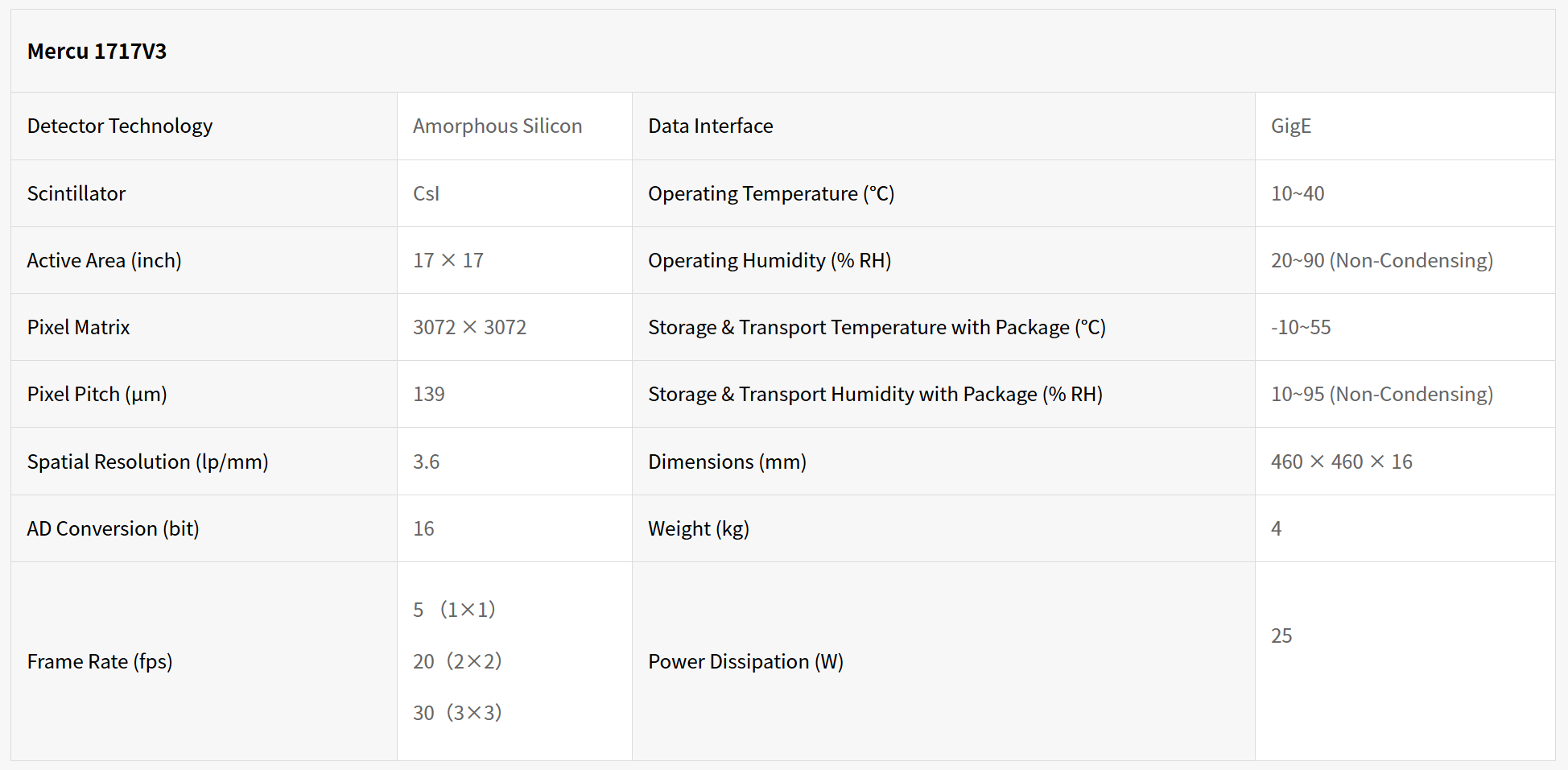

Technical Parameters
