| Model Number | BC-10 |
| Instrument classification | Class II |
| Warranty | 1 Year |
| After-sale Service | Online technical support |

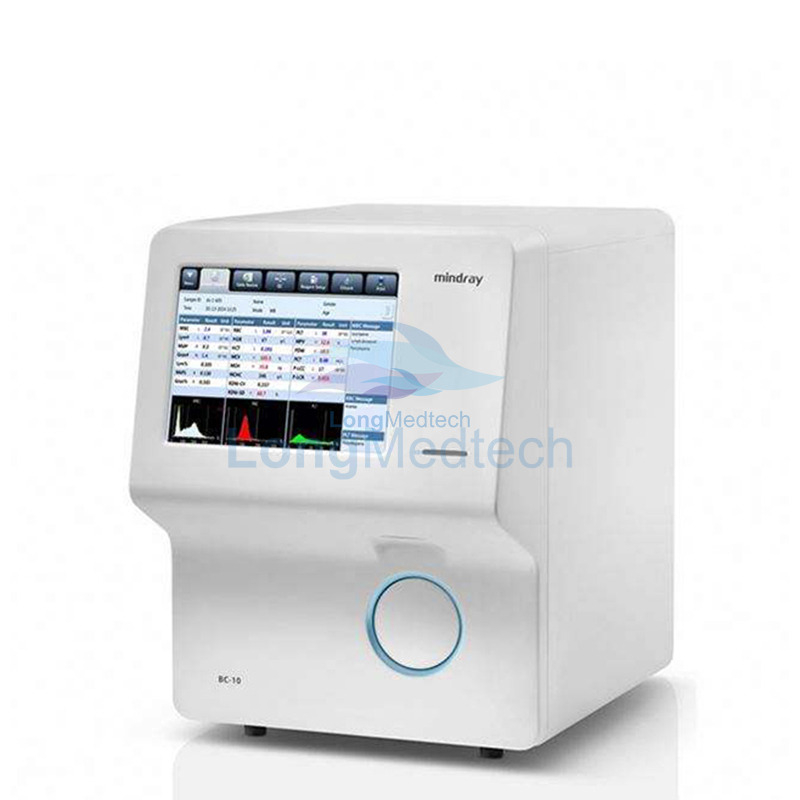

| Product name | Auto Hematology Analyzer |
| Model | Mindray BC-10 |
| Feature | CBC+3-DIFF, 20 parameters+3Histograms |
| test speet | 30 test/hr |
| keyboard | Only 3 reagents needed |
| Reagents | 4 USB ports |
| Interface | 410*300*400mm |
| Dimension | 4 USB ports |
| keyboard | 8.4inch TFT touch screen |
| Weight | 24 kg |
Gives you confdence in results
Advanced detailed flag information provides warning in case of abnormal cell results. HJ gh quality original reagent calibrator and quality controls maintain your work at a high level. We integrate technologies into our products to fulfll
your clinical needs, therefore, today, Mindray products and services are used by healthcare facilities in over 190 countries and regions. More and more customers choose Mindray products and trust Mindray's quality.
Gives you more time to work
Smart and intuitive software bring your productivity to a new level. The 10.4 inch TFT touch screen makes operations easy and fexible, maximizing your productivity. The incredible 400,000 storage capacity gives you a worry-free solution to managing previous patients' data. The smart software can detect and remove operational errors, as well as run automatic maintenance with a single click.
Gives you less downtime
Quality and user experience are top priorities for Mindray. We design and manage our manufacturing processes in compliance with, ISO and CE. Complete quality control systems in Mindray's manufacturing centers ensure we exceed the most stringent criteria and traceability throughout the entire process. Our professional and responsive support team makes sure your systems are kept at full capability.
Technical Specifcations: Impedance method for WBC, RBC and PLT counting Cyanide free reagent for hemoglobin test 20 parameters:WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR 3 histograms for WBC, RBC and PLT Sample Volume Prediluted mode ≤20μL Whole blood mode ≤9 μL Parameters Principles Performance
Parameter Linearity Range Precision (CV %) Carryover WBC(10 9 /L) 0-100 ≤3.5% (4.0-6.9) ≤0.5% ≤2.0% (7.0-15.0) RBC(10 12 /L) 0-8.00 ≤2.0% (3.50-6.5) ≤0.5% HGB(g/L) 0-280 ≤2.0% (100-180) ≤0.5% MCV(fL) ≤1.0% (70.0-110.0) ≤0.5% PLT(10 9 /L) 0-1000 ≤5.0%(100-500) ≤1.0% Throughput 30 samples per hour Display 8.4 inch TFT Touch Screen Multi-language Chinese, English, Spanish,Portuguese, Russian, French, Bahasa Indonesia Data Storage Capacity Up to 50,000 results including numeric and graphicalinformation Communication LAN Port supports HL7 protocol Support bi-directional LIS
Interface 4 USB ports (for external printer, software upgrade, barcode reader, external WIFI, keyboard and mouse), LAN port (1)Printout Thermal recorder, 50 mm wide paper, various printouts formats Power Requirement Temperature: 15°C~30°C Humidity: 10%~90%Air pressure: 70kPa~106kPa Power Requirement (100V-240V)±10% ≤180VA (50Hz/60Hz) ±1Hz Dimension and Weight Dimension: Depth (410mm) x width (300 mm) x height (400 mm) Weight: ≤20Kg
