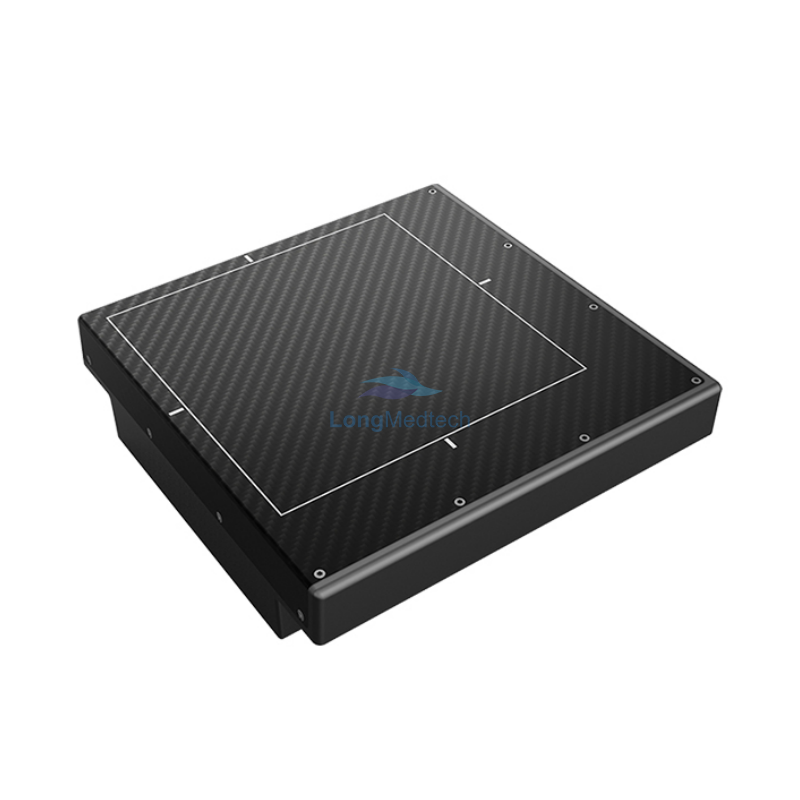

NDT 0505J
NDT 0505J is new generation, high-performance FPD developed with innovative a-Si sensor technology for real-time imaging. The 5×5-inch low noise image sensor has an 85 µm pixel pitch. It is coupled with 16 bit read-out electronics and provides excellent imaging at frame rates up to 40 fps. The NDT 0505J is suitable for industrial NDT applications such as welding and casting inspection.
Features
Innovative a-Si TFT sensor provides low noise, high CNR with an extended dynamic range
13×13 cm² imaging area
High resolution 85 μm pixel pitch with 16-bit ADC
Gigabit Ethernet interface, without image loss
High throughput
Technical Parameters
| NDT 0505J | |||
| Detector Technology | a-Si TFT | Radiation Hardness (Gy) | 10000 |
| Scintillator | Csl / DRZ-Fine | Ingress Protection | IP65 |
| Pixel Pitch (μm) | 85 | Dimensions (mm) | 176 × 176 × 47 |
| Pixel Matrix | 1536 × 1536 | Car Charger | No |
| Active Area (mm²) | 130 × 130 | Weight (kg) | 2.1 / 3.5 |
| Spatial Resolution (lp/mm) | 5.8 | Power Dissipation (W) | 9 |
| AD Conversion (bit) | 16 | Operating Temperature (℃) | 10 ~ 40 |
| Frame Rate (fps) | 20 (1×1) 40 (2×2) | Storage & Transport Temperature with Package (℃) | -10 ~ 55 |
| Data Interface | GigE | Operating Humidity (% RH) (Non-Condensing) | 20 ~ 90 |
| Trigger Mode | Continuous and Pulsed | Storage & Transport Humidity with Package (% RH) (Non-Condensing) | 10 ~ 90 |
| X-ray Energy Range | 40 kV ~ 160 / 320 kV | ||
