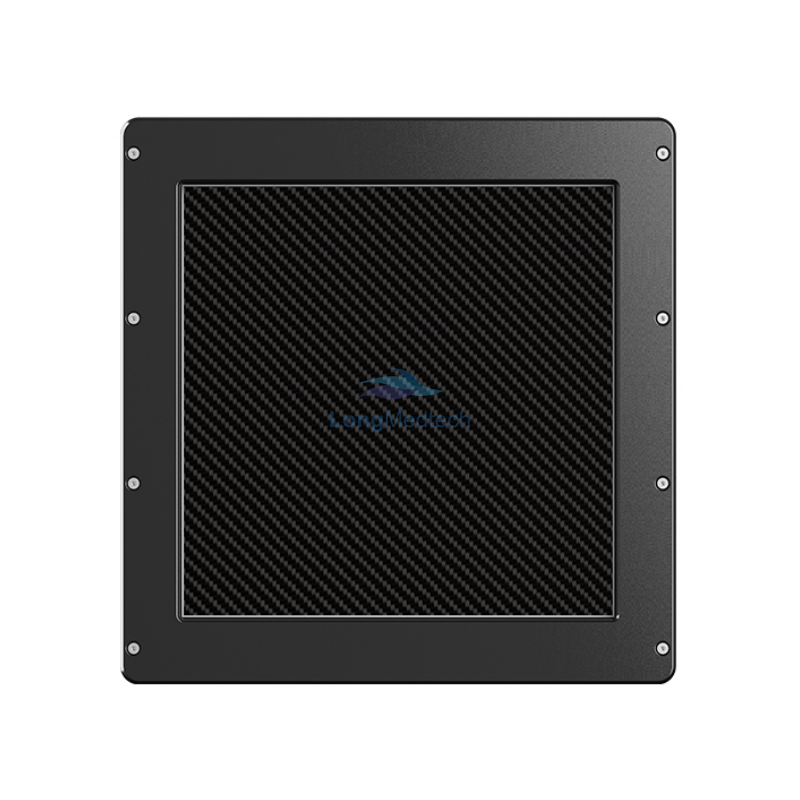

NDT 0909M
NDT 0909M is a radiation hard a-Si FPD for real-time imaging. The detector supports frame rates up to 60 fps, and the 16 bit ADC provides high dynamic range and excellent contrast-to-noise ratio. The detector has an industrially rugged design, which provides high radiation resistance, wide environmental capabilities, and overall high reliability. The NDT 0909M is suitable for industrial NDT applications such as casting inspections.
Features
Proven radiation hard a-Si TFT sensor technology
21×21 cm² imaging area
205 µm pixel pitch
16-bit ADC for high dynamic range
Gigabit Ethernet interface, without image loss
Energy range from 40 kV ~ 320 / 450 kV
Fast speed, High throughput
Easy software and system integration
Technical Parameters
| NDT 0909M | |||
| Detector Technology | a-Si TFT | Radiation Hardness (Gy) | 10000 |
| Scintillator | CsI / DRZ-Plus | Ingress Protection | IP30 |
| Pixel Pitch (μm) | 205 | Dimensions (mm) | 275 × 270 × 62 / 65.5 |
| Pixel Matrix | 1024 × 1024 | Car Charger | No |
| Active Area (mm²) | 210 × 210 | Weight (kg) | 7.9 / 8.9 |
| Spatial Resolution (lp/mm) | 2.4 | Power Dissipation (W) | 15 |
| AD Conversion (bit) | 16 | Operating Temperature (℃) | 10 ~ 40 |
| Frame Rate (fps) | 30 (1×1) 60 (2×2) | Storage & Transport Temperature with Package (℃) | -10 ~ 55 |
| Data Interface | GigE | Operating Humidity (% RH) (Non-Condensing) | 20 ~ 90 |
| Trigger Mode | Continuous and Pulsed | Storage & Transport Humidity with Package (% RH) (Non-Condensing) | 10 ~ 90 |
| X-ray Energy Range | 40kV ~ 320 / 450 kV | ||
