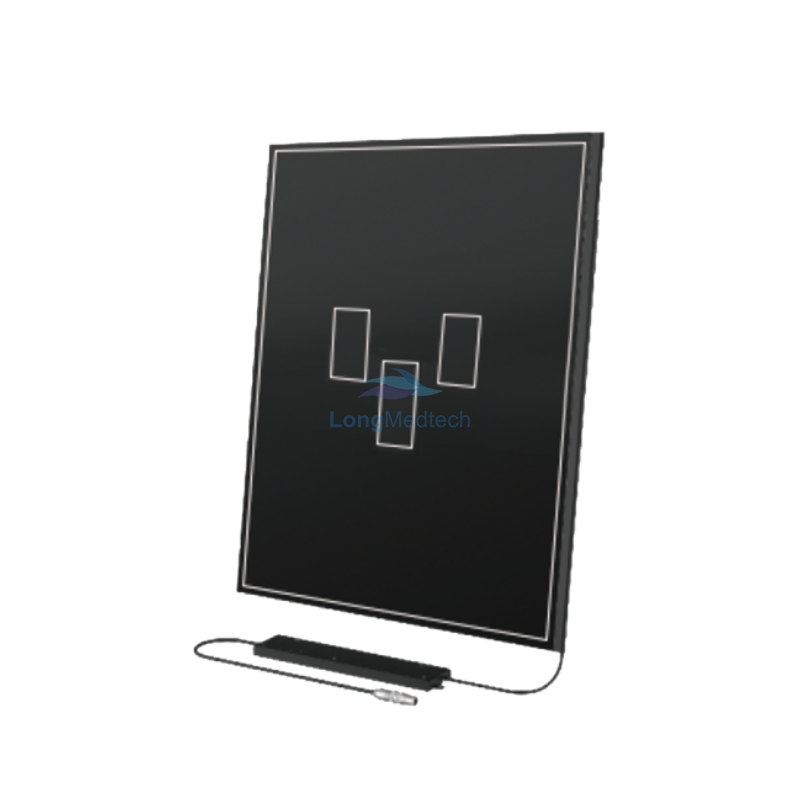

Norma 301i-1719
Norma series automatic exposure control sensors can be used in the x-ray energy from 40kV to 150kV. The x-ray dose is accumulated through the ionization chambers and turn to the electrical signals. Then the signals are amplified by the pre-amplifier, and export to the x-ray system. Norma series have high sensitivity, low attenuation and good stability. The dimensions can be customized.
Features
Technical Parameters
| Norma 301i-1719 | |||
| Chamber | Ionization Chamber | Input Voltage | ±12 V or ± 15 V ± 5% (DC) |
| Number of Measuring Fields | 3 | Input Current (mA) | ≤ 200 @+12V, ≤100 @-12V |
| Energy Range (kV) | 40 ~ 150 | Dimensions (mm) | 486 × 521 × 3.3 |
| Exposure Time Range | 1ms ~ 10s | Weight (kg) | 2.3 |
| Sensitivity Typ. at 80 kV, 21 mm Al | 0.6 V/μGy; Adjustable | Operating Temperature (℃) | 10 ~ 40 |
| Dose Range (µGy) | 1 ~ 50 | Storage & Transport Temperature with Package (℃) | -40 ~ 70 |
| Sensitivity Tolerance | ≤ 3% @ Default Sensitivity | Operating Humidity (% RH) | 10 ~ 90 (Non-Condensing) |
| Sensitivity Tolerance Between Measure Fields | ≤ 5% @ Default Sensitivity | Storage & Transport Humidity with Package (% RH) | 10 ~ 90 (Non-Condensing) |
| X-ray Transmittance | 85% @ 40 kV 92% @ 80 kV | Operating Atmospheric Pressure (mbar) | 700 ~ 1060 |
| Interfield Voltage in Ionization Chamber (V) | 102 ± 10 | ||
