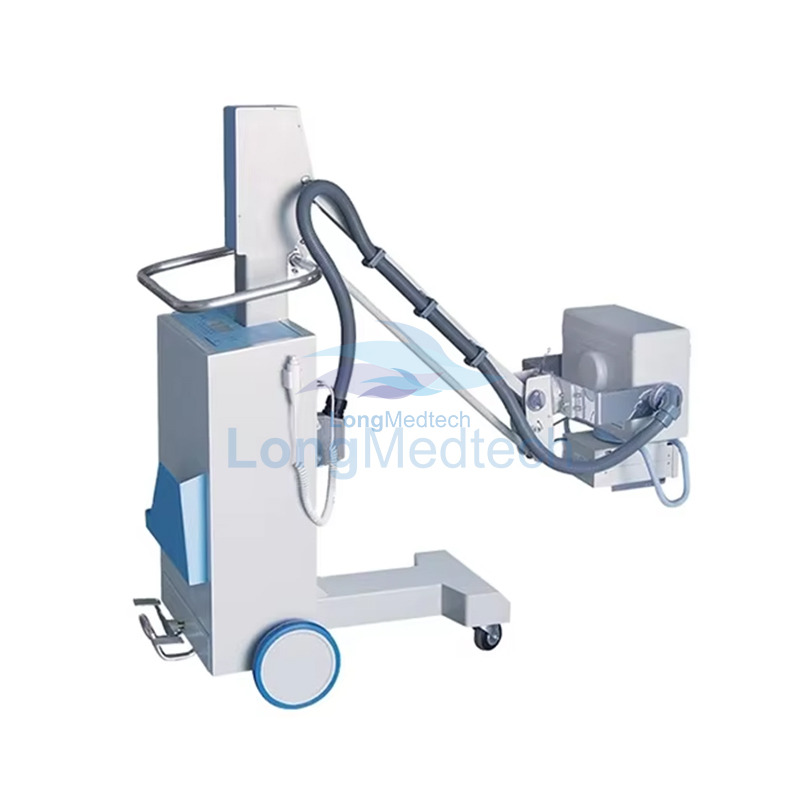

PLX101C
General-purpose, mobileX-ray system, dedicated for radiography of standing, seated or recumbent patients
as well as for patients in bed or on the operating table and as a standby emergency unit. High-frequeney X-ray
generator with the following output:
1. Generator output:5.0kW
2.kV range:40kV-120 kV in 1kv steps
3.mA range:
25--100 mA
4. Exposure time: 4 films per min, less than 20 ms per film
5. X-ray tube:
Stationary anode tube with a focal spot of 1.5*1.5 mm
6.Collimator:
bright ficld light beam collimator with 120 Whalogen lamp and auto shut-off facility.
7.Power requirements :Single phase220V +/- 10% Voltage toleranee; 50 Hz power supply
8.Mobile stand: 1.ight-weight, low height mobile and easily mancuverable stand.
9.The mobile radiographic unit also include a handheld control and a microwave wircless remote control for
the 20-meter microwave remote Without the restriction of Barricrs and directional ,different from the
infrared remote control . Grids reduce the fog line Filters and raise the degree of scattering contrast.
10.The unit is provided with a line (powery cord of acceptable aurability, quality, length and is secured with
adequate strain reliefs
The unit include, power plugs that are suficient for the maximum voltage and current of the unit.
11. The maximum distance from the ground: ≥ 17500mm, and minimum distance from the ground :≤500mm,
rotating around the horizontal axis 180 ", rotation around the vertical: + 90 ", The collimator can rotate 180 °,
