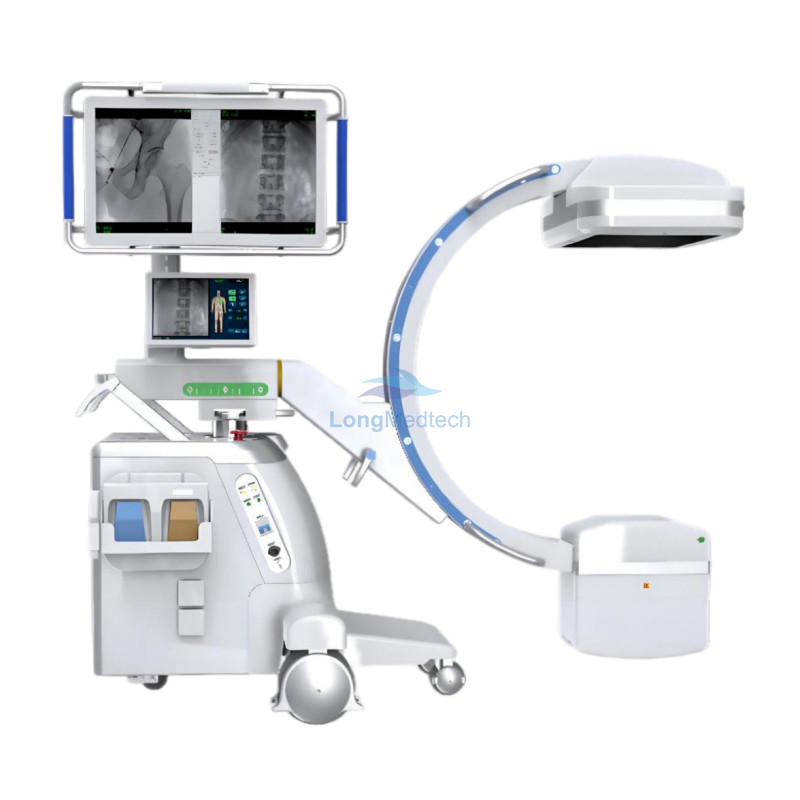

PLX119 Mobile Digital FPD C-arm System

Configuration

1. C-arm frame     1set

2. High frequency mono-block     1set

3. Motorized Adjustable Collimator     1set

4. High Density Grid     1set

5. 12”flat panel detector     1set

6. 27”LCD monitor     1set

7. Touchscreen panel 1set

8. Digital Acquisition and Process Workstation     1set

9. Medical workstation software     1set

10. DAP     1set

11. Cross Laser positioning     2sets

12. Cable exposure foot switch     1set

13. Cable movement control handler     1set

Generator

• Output power：5kW

• Inverter Frequency：110kHz

• Continuous Fluoroscopy

Tube voltage (By manual)：40kV～120kV

Tube voltage (By automatic): 40KV～112KV

Tube current：0.3mA～4.0mA

• Pulsed Fluoroscopy

Tube voltage(By manual)：40kV～120kV

Tube voltage(By automatic): 40KV--112KV

Tube current(By manual)：0.3mA～30mA

Tube current(By automatic): 5mA/10mA

• Photography

Tube voltage：40kV～120kV

Tube current：25~100mA

mAs：1mAs～280mAs

• Spotfilm

Tube Current: Max. 15mA

• IBS：Available

X-ray tube

• Anode Type

Stationary

Focus：0.6mm/1.2mm

Target angle：10°

Anode thermal capacity：53kJ(74kHU)

Anode thermal dissipation：600W

• Tube

Tube thermal capacity：650kJ (867kHU)

Tube thermal dissipation：60W

Image Component

• Flat Panel Detector

Model：Domestic

Size：30cm*30cm

Pixels: 2048*2048

Pixel Size: 150μm

Spatial Resolution：3.1lp/mm

DQE：72%

Gray Scale: 16 bits

• Removable Gird

Distance between focus and grid: 100cm
Size: 394mmx343mm

Ratio: 8:1

Density: 80L/cm

C-arm Frame

• SID：1000mm

• C-arm sliding along the track：135°

• C-arm panning：±180°
  C-arm Swing: ±15°

• Forward and backward movement：200mm

• Vertical movement：400mm

• C-arm opening space：800mm

• C-arm depth：660mm

• Wheels rotation: -90°~0°~+90°

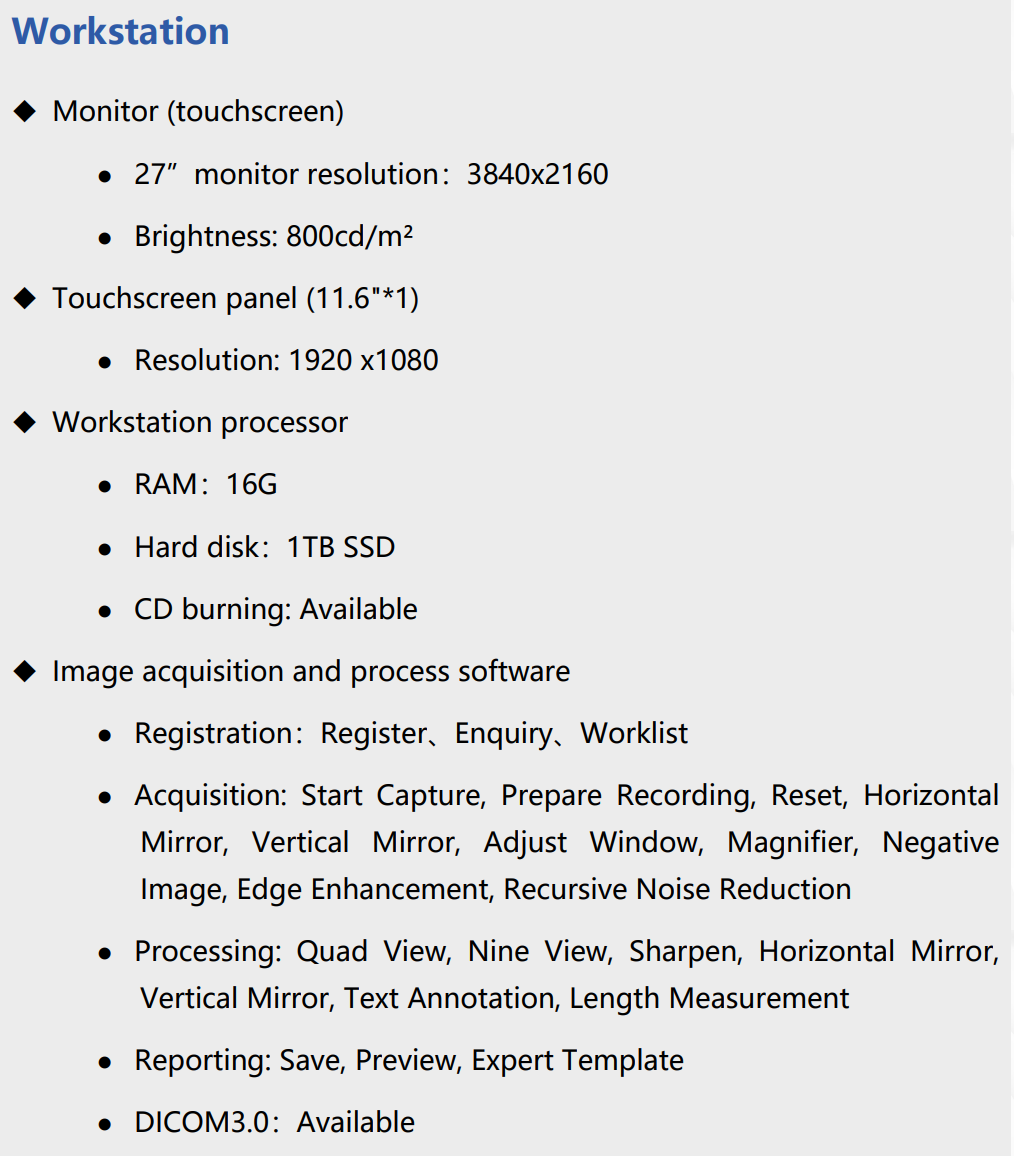

Electricity Condition

Voltage：220V

Frequency：50Hz

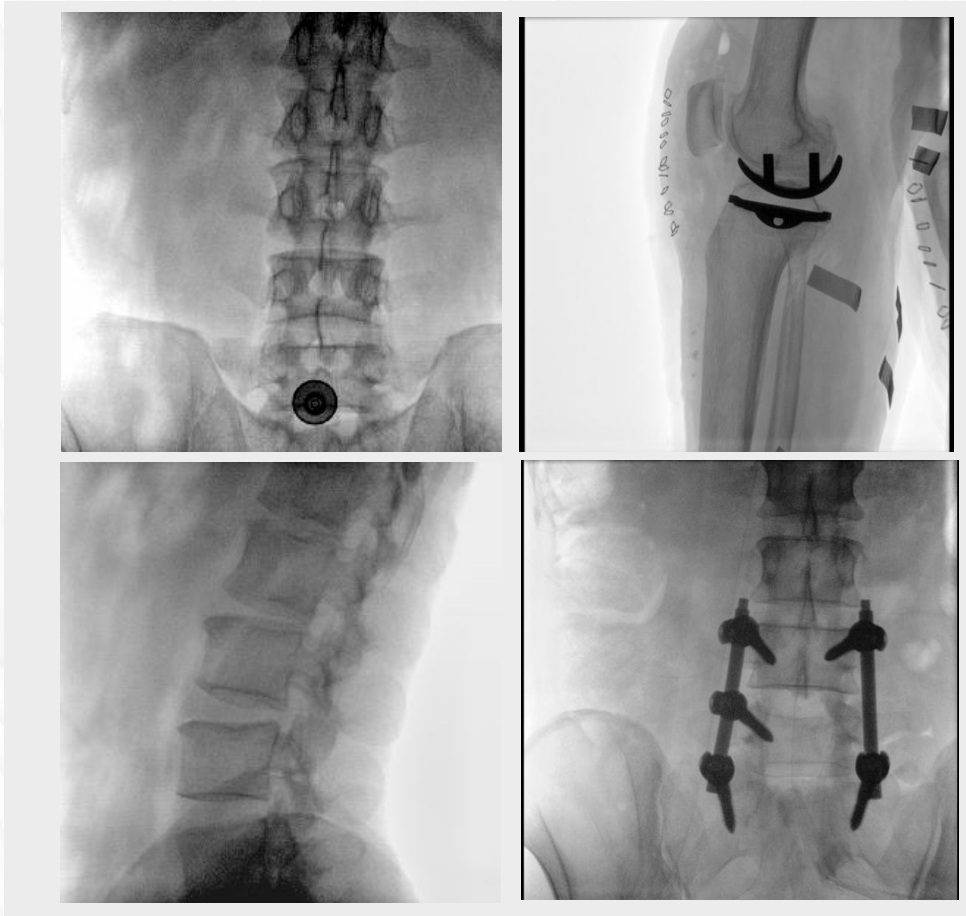

Image Reference
