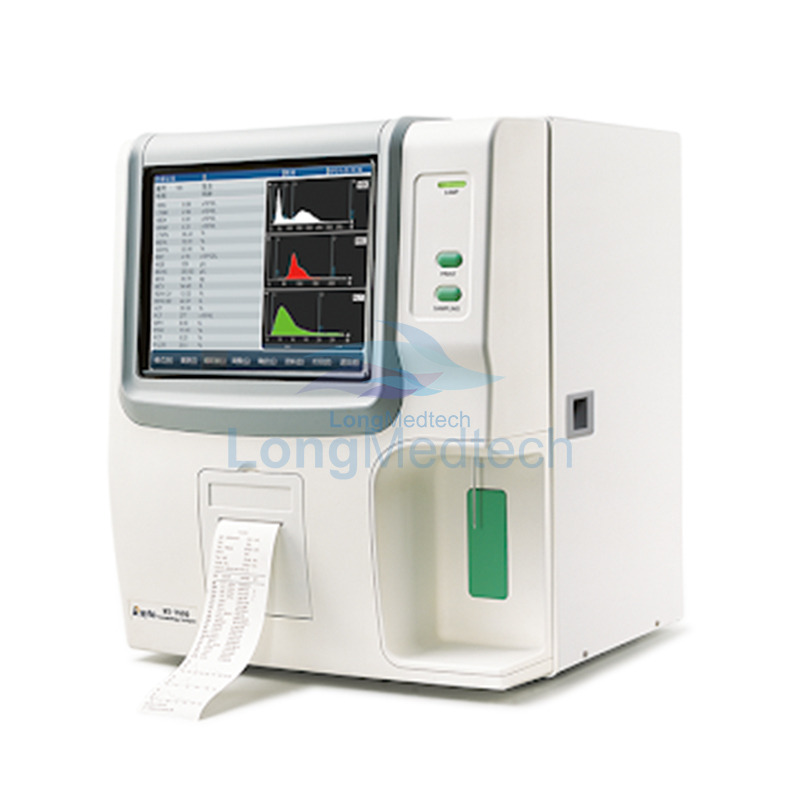

Rayto RT-7600 for Veterinary Auto Hematology Analyzer

Product Description

Technical Parameters

Features

7 pre-determined animal settings plus 4 user-defined animal settings

3-part differentiation of WBC, 20 parameters+3 histograms

High throughput, 60 samples per hour

10.4" TFT colorful LCD with touch screen

External AC adapter avoids electronic nosies, enhancing accuracy

Up to 50000 sample results (including histograms) can be stored

User-friendly software, Multi-language available on request

Original factory's blood control and calibrator

Low sample & reagent consumption

Test Items

White Blood Cell	WBC	Red Blood Cell Specific Volume	HCT
Neutrophil#	NEU#	Mean Cell Volume	MCV
Lymphocyte#	LYM#	Mean Corpuscular Hemoglobin	MCH
Monocyte#	MON#	Mean Corpuscular Hemoglobin Concentration	MCHC
Eosinophil#	EOS#	Red Cell Volume Distribution Width-Coefficient of Variation	RDW-CV
Basophil#	BAS#	Red Cell Volume Distribution Width-Standard Deviation	RDW-SD
Neutrophil%	NEU%	Platelet	PLT
Lymphocyte%	LYM%	Mean Platelet Volume	MPV
Monocyte%	MON%	Platelet Distribution Width	PDW
Eosinophil%	EOS%	Plateletcrit	PCT
Basophil%	BAS%	Platelet-Large Cell Ratio	P-LCR
Red Blood Cell	RBC	Platelet-Large Cell Count	P-LCC
Hemoglobin(Concentration)	HGB

Technical Specifications

Parameters	5-part WBC Differential
	25 Reportable Parameters
	2 Histograms
	2 Scatter Grams
	Abnormal Sample Alarm
Sample Mode	Whole Blood (Venous/Capillary),Pre-dilution
QC Methods	L-J QC,X-B QC
Power Supply	100-240 V~ 50/60 Hz
Weight	21 kg
Dimension	328 mm x 471 mm x 446 mm (L x W x H)
Data Storage	10000
Screen Type	10.4 inch Resistive Screen
Operating Conditions	18~30℃,≤80％ Relative Humidity,75 kPa~106 kPa
