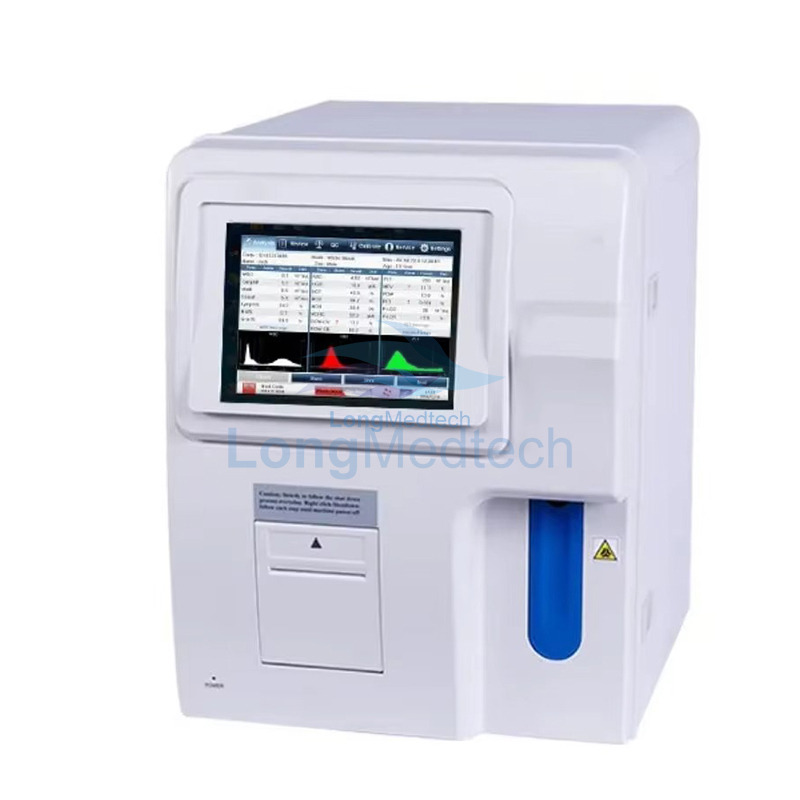

SK8800 CBC Analyzer Fully Auto 5 Part Hematology Analyzer

SK8800 CBC Analyzer Fully Auto 5 Part Hematology Analyzer

Quantity:
Availability:





Inquire Add to Basket

Model:
SK8800

X-ray Machine Lab device Ophthalmology Hospital Furniture Vet medical

Product Description

Technical Parameters

Methodology	Electrical resistance for counting,hemiglobincyanide method and SFT method for hemoglobin
Parameter	3-part differentiation of WBC;20 parameters and 3 color histograms(WBC,RBC,PLT)
Work mode	double Channel+unique Hemoglobin test system
Sample volume	9.8ul for Venous and capillary mode,20ul for prediluted mode
Throughput	more than 60 sample results including histograns can be stored,convenient for inquiry and management of history data
Storage	up to 100000 sample results including histograms can be stored,convenient for inquiry and management of history data
Operation langue	English
Refrence value setting	Male,Female,Children,Neonate
Input/output	RS232,parallel printer and keyboard
Print	Graphic thermal printer with various printing format,optional external printer
Temperature	18℃-30℃,wet≤10-90%
Power supply	220V±22VAC,50±1Hz
Dimension	33CM(L)38CM(W)43CM(H)
Weight	20kg

NO,	Model	net weight	gross weight	machine dimension(cm)	packing dimension(cm)	shippment volume
1	LBI120	19KG	24.5KG	343843(H)	544762	35KG
2	LKH-220	19KG	24.5KG	343843(H)	544762	35KG
4	LKH-230	19KG	24.5KG	343843(H)	544762	35KG
5	SK8800 VET	19KG	24.5KG	343843(H)	544762	35KG

Parameters	linear range	CV%
WBC(10 9/L)	0.0-99.9	≤2%
RBC(10 12/L)	0.0-9.99	≤1.5%
MCV(fL)	40-150	≤0.5%
PLT(10 9/L)	0-999	≤4.0%
HGB(g/L)	0.0-300.0	≤1.5%

*3-part differentiation of WBC,23 parameters,up to 30 samples test per hour
*Electrical resistance for counting and SFT method of Hemaglobin
*Low sample comsumption:venous 9.8ul,prediluted 20ul for twice testing one time
*8.4''color TFT,windows interface all testing parameter displayed simultaneously
*Windows operation system graphical buttons mouse and keyboard operation
*Automatic diluting,Mixing,rinsing and clog clearing
*Automatically sample probe cleanning(inside and outside)
*Large storage capacity :up to 100,000 samples+3 histograms
*Internal thermal-sensitive printer or external printer
*RS232 interface,PC connecting

Test Items

White Blood Cell	WBC	Red Blood Cell Specific Volume	HCT
Neutrophil#	NEU#	Mean Cell Volume	MCV
Lymphocyte#	LYM#	Mean Corpuscular Hemoglobin	MCH
Monocyte#	MON#	Mean Corpuscular Hemoglobin Concentration	MCHC
Eosinophil#	EOS#	Red Cell Volume Distribution Width-Coefficient of Variation	RDW-CV
Basophil#	BAS#	Red Cell Volume Distribution Width-Standard Deviation	RDW-SD
Neutrophil%	NEU%	Platelet	PLT
Lymphocyte%	LYM%	Mean Platelet Volume	MPV
Monocyte%	MON%	Platelet Distribution Width	PDW
Eosinophil%	EOS%	Plateletcrit	PCT
Basophil%	BAS%	Platelet-Large Cell Ratio	P-LCR
Red Blood Cell	RBC	Platelet-Large Cell Count	P-LCC
Hemoglobin(Concentration)	HGB

Technical Specifications

Parameters	5-part WBC Differential
	25 Reportable Parameters
	2 Histograms
	2 Scatter Grams
	Abnormal Sample Alarm
Sample Mode	Whole Blood (Venous/Capillary),Pre-dilution
QC Methods	L-J QC,X-B QC
Power Supply	100-240 V~ 50/60 Hz
Weight	21 kg
Dimension	328 mm x 471 mm x 446 mm (L x W x H)
Data Storage	10000
Screen Type	10.4 inch Resistive Screen
Operating Conditions	18~30℃,≤80％ Relative Humidity,75 kPa~106 kPa
