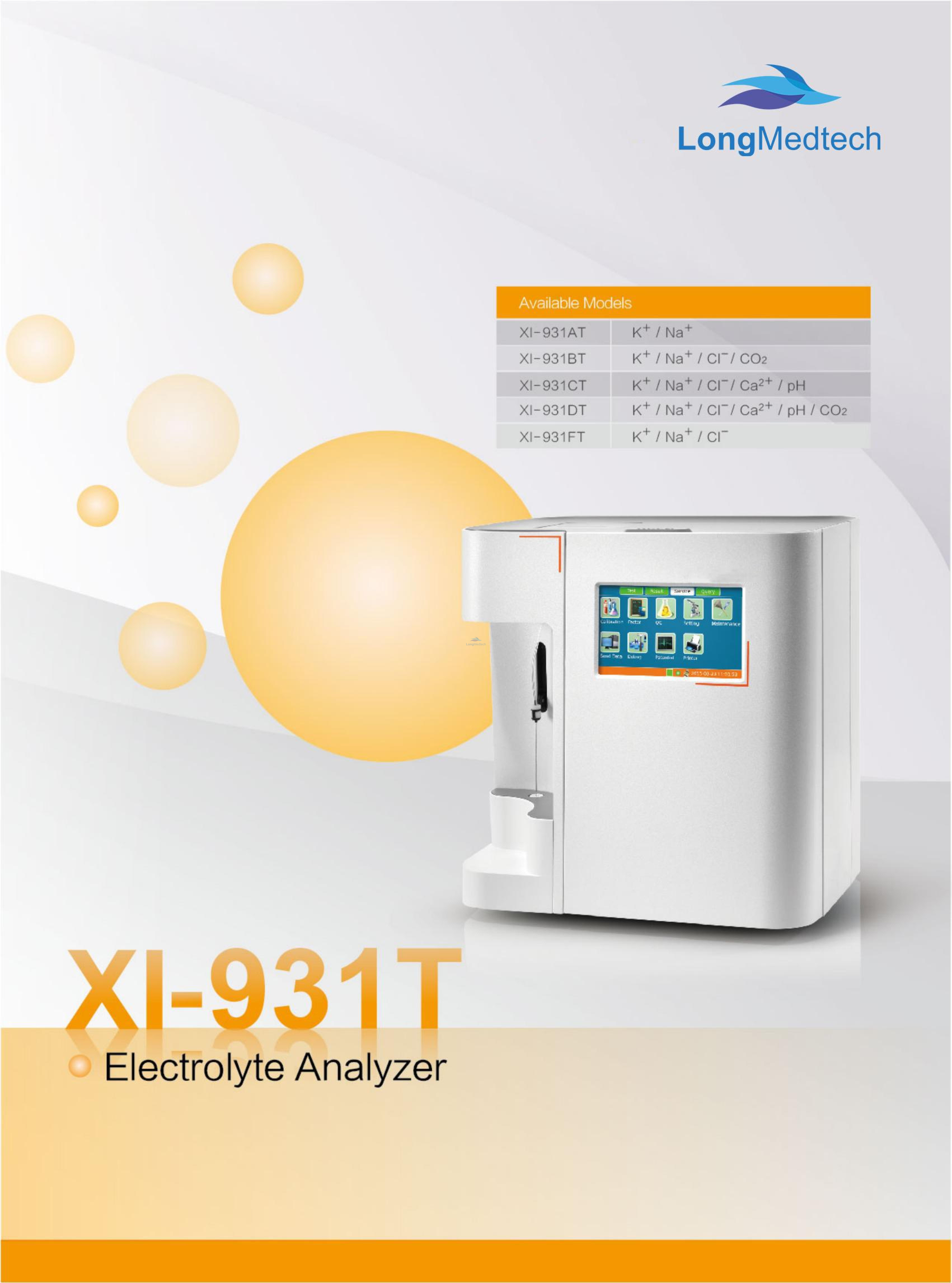

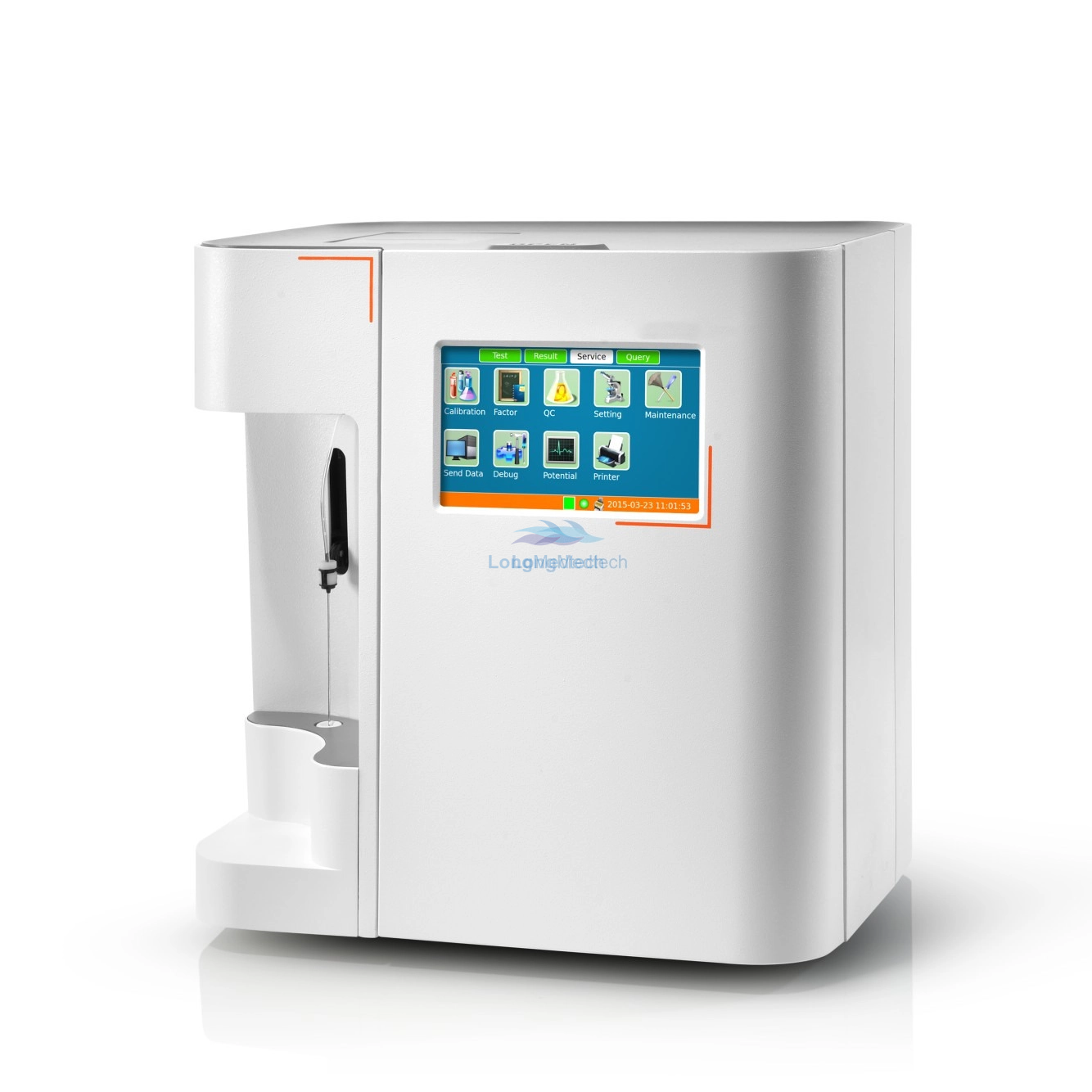

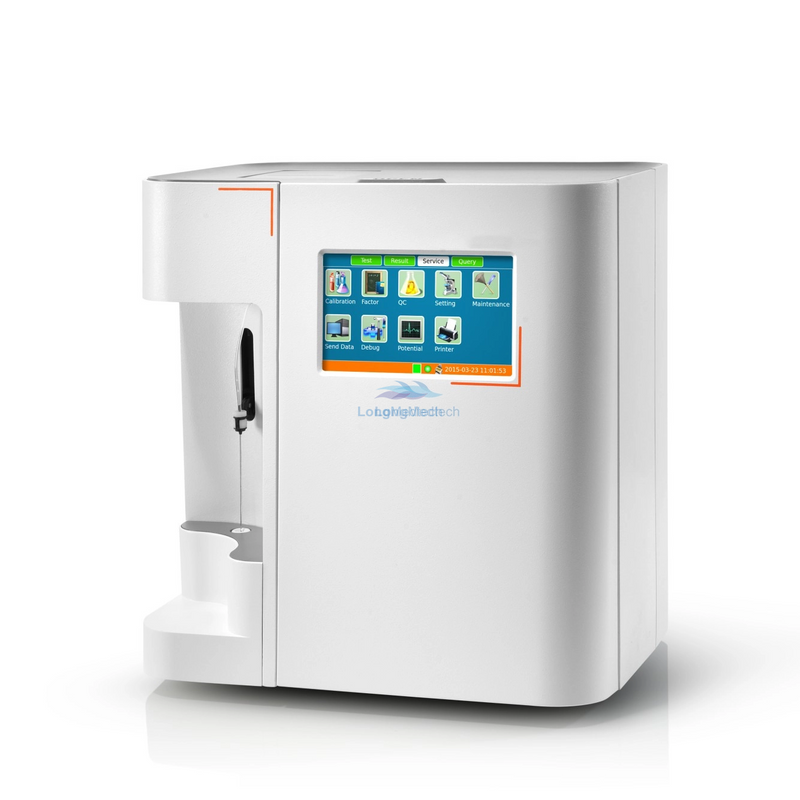

XI-931T

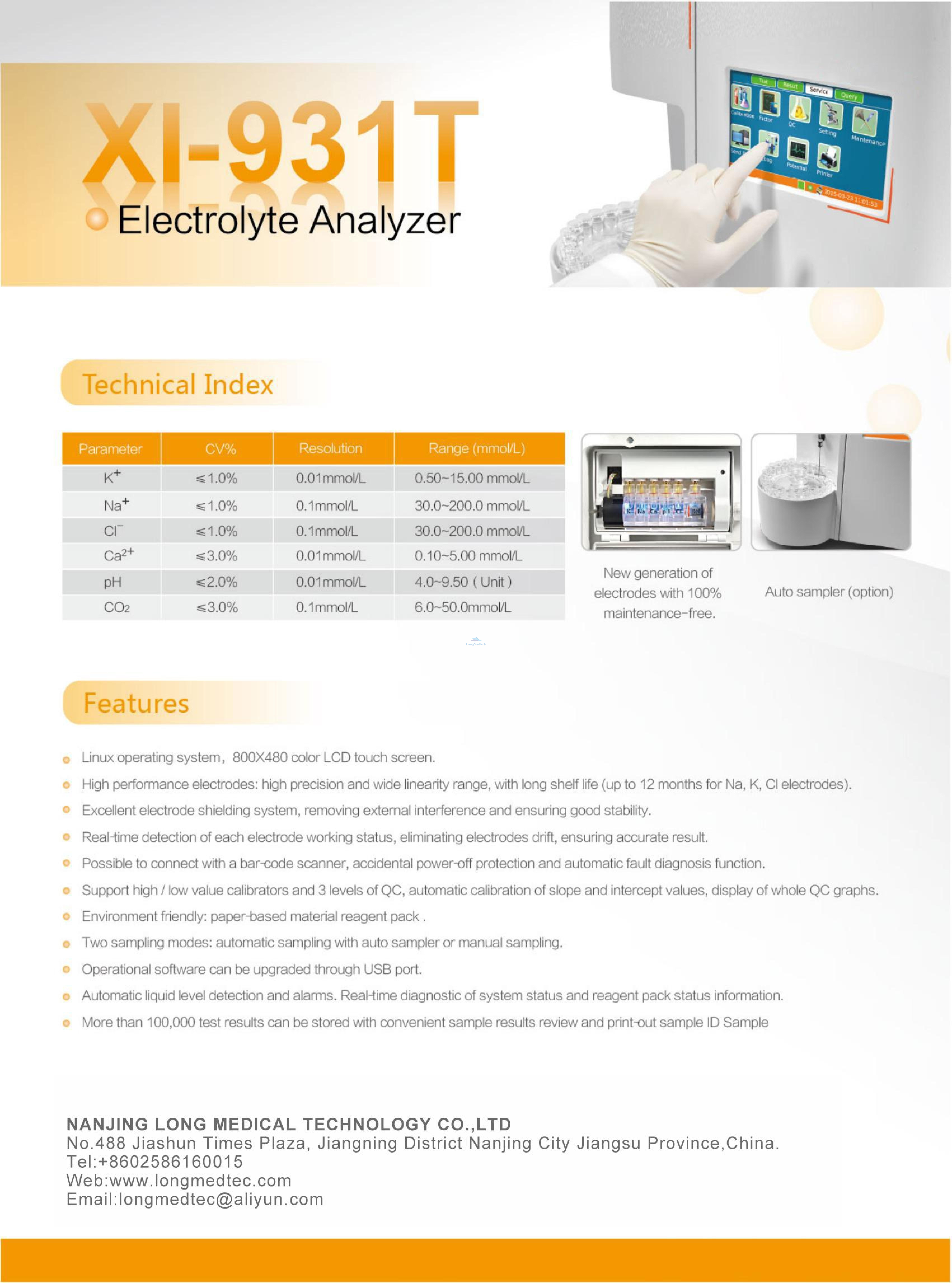

Features
Linux operating system, 800X480 color LCD touch screen.
Hgh pefomance dlecrodeshghpredslon and wide ineariy range, wthlong shef lfe (upto 12 months for Na,K dlecrdes).
Excelent electrode shielding system, removing extemal interference and ensuring good stability.
ReaHtime detection of each electrode working status, eiminating electrodes drift, ensuring accurate resul.
Possible to comnec wiha barcode scanner, accidenlal power off proledtion and automatic faull dagnosis fundtion.
Support high/low value calbrators and 3 levels of QC, automatic calbration of slope and intercept values, display of whcle QC graphs.
Environment friendly: paper-based material reagent pack.
Two samplng modes: automatic sampling with auto sampler or manual samplng.
Operational software can be upgraded through USB port.
Automatic liquid level detection and alarms. Real tme dagnostic of system status and reagent pack status nformation.
More than 100,000 test results can be stored with convenient sample results review and print -out sample D Sample
Test Items
White Blood Cell | WBC | Red Blood Cell Specific Volume | HCT |
Neutrophil# | NEU# | Mean Cell Volume | MCV |
Lymphocyte# | LYM# | Mean Corpuscular Hemoglobin | MCH |
Monocyte# | MON# | Mean Corpuscular Hemoglobin Concentration | MCHC |
Eosinophil# | EOS# | Red Cell Volume Distribution Width-Coefficient of Variation | RDW-CV |
Basophil# | BAS# | Red Cell Volume Distribution Width-Standard Deviation | RDW-SD |
Neutrophil% | NEU% | Platelet | PLT |
Lymphocyte% | LYM% | Mean Platelet Volume | MPV |
Monocyte% | MON% | Platelet Distribution Width | PDW |
Eosinophil% | EOS% | Plateletcrit | PCT |
Basophil% | BAS% | Platelet-Large Cell Ratio | P-LCR |
Red Blood Cell | RBC | Platelet-Large Cell Count | P-LCC |
Hemoglobin(Concentration) | HGB | ||
Technical Specifications
Parameters | 5-part WBC Differential |
25 Reportable Parameters | |
2 Histograms | |
2 Scatter Grams | |
Abnormal Sample Alarm | |
Sample Mode | Whole Blood (Venous/Capillary),Pre-dilution |
QC Methods | L-J QC,X-B QC |
Power Supply | 100-240 V~ 50/60 Hz |
Weight | 21 kg |
Dimension | 328 mm x 471 mm x 446 mm (L x W x H) |
Data Storage | 10000 |
Screen Type | 10.4 inch Resistive Screen |
Operating Conditions | 18~30℃,≤80％ Relative Humidity,75 kPa~106 kPa |
