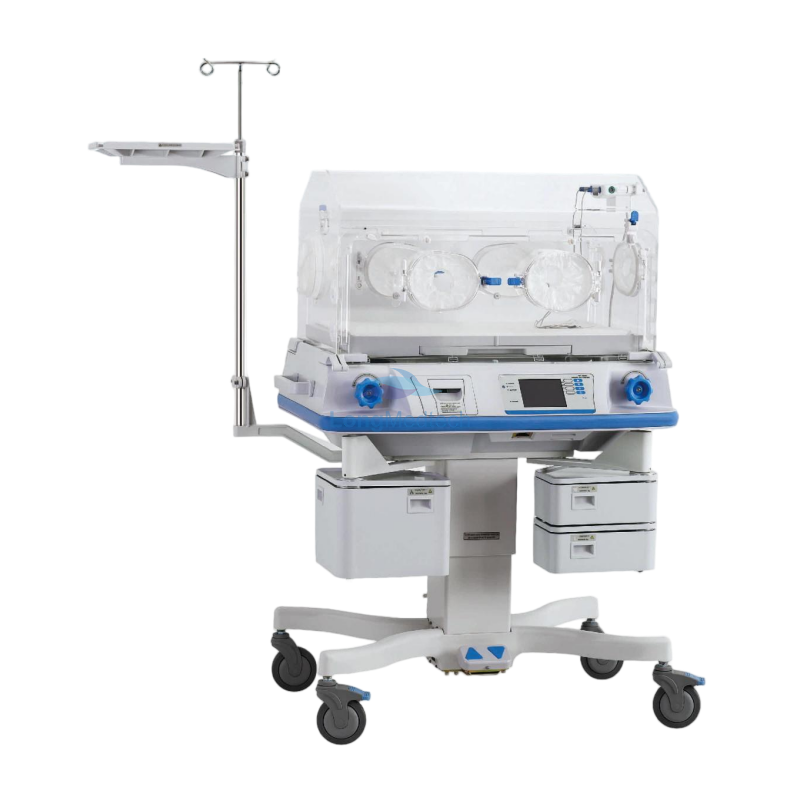

YP-2000 Infant Incubator

Brief Introduction

• Two control modes: Air mode and Baby mode controlledby micro-computer;

• The information can be stored, checked and indicated bythe LCD display screen;

• Humidity and Oxygen concentration level display and servocontrol system;

• ">37°C" temperature set function;

• The air circulation system with outlet in both front and back;

• X-ray cassette under the bassinet;

• Embedded integrated sensor module, integrated waterreservoir in the shape of drawer;

• Inclination of bassinet is adjustable;

• The height of whole unit can be adjusted;

• Multiple failure alarm indications;

• RS-232 connector for data output;

• Low noise DC motor.

Standard Configuration

Hood, Main body, Vertical height adjustment stand(VHA stand), Controller, I.V. Pole and Shelf.

Optional Configuration

Weighing system, Monitor shelf and Disposable skintemperature sensor.

Environmental temperature

Operating range: 20 °C~30°C (Set temperature shouldbe 3°C higher than the environment temperature)Ambient air velocity: <0.3m/s

Product Packaging

Package: Main body and Cabinet are packed into two cartons

Dimension (Main body): 1110mm x 710mm x 888mm

                       (Cabinet): 1029mm x 697mm x 826mm

Gross Weight (Main body): 70Kg

                             (Cabinet): 80Kg
