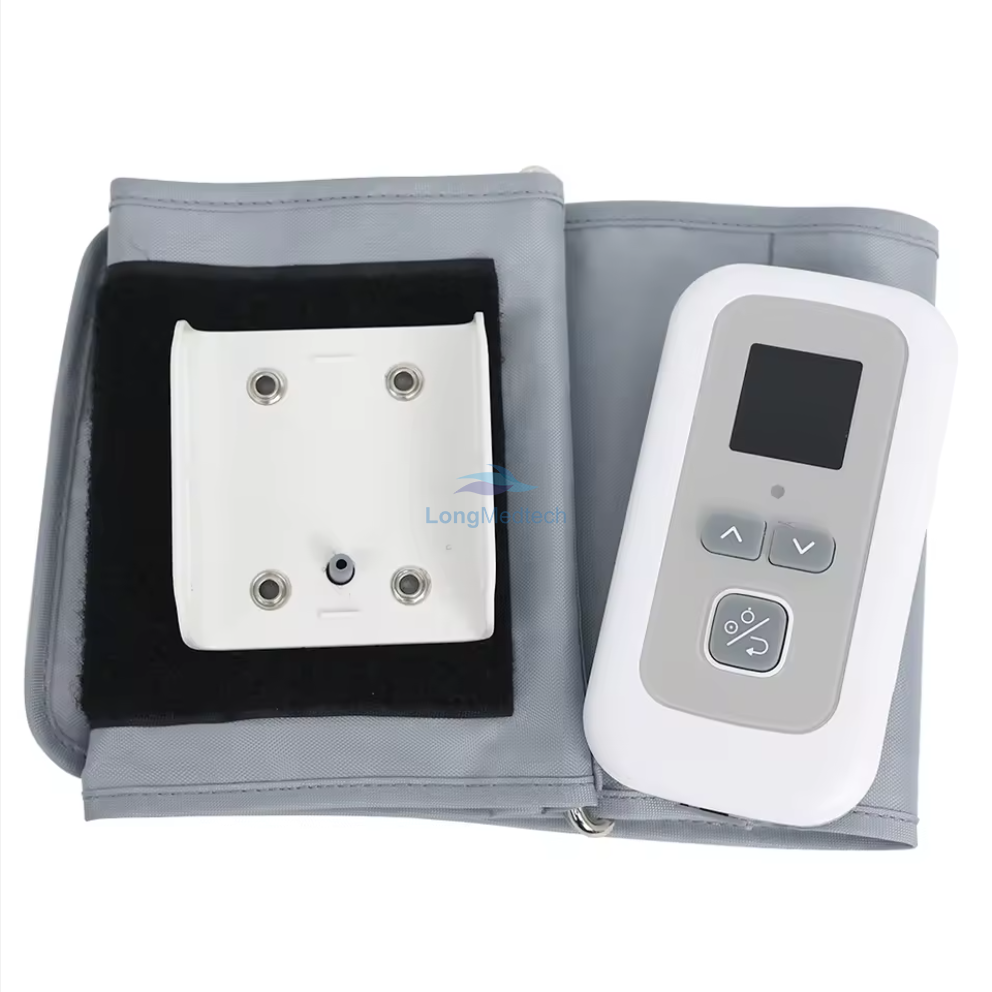

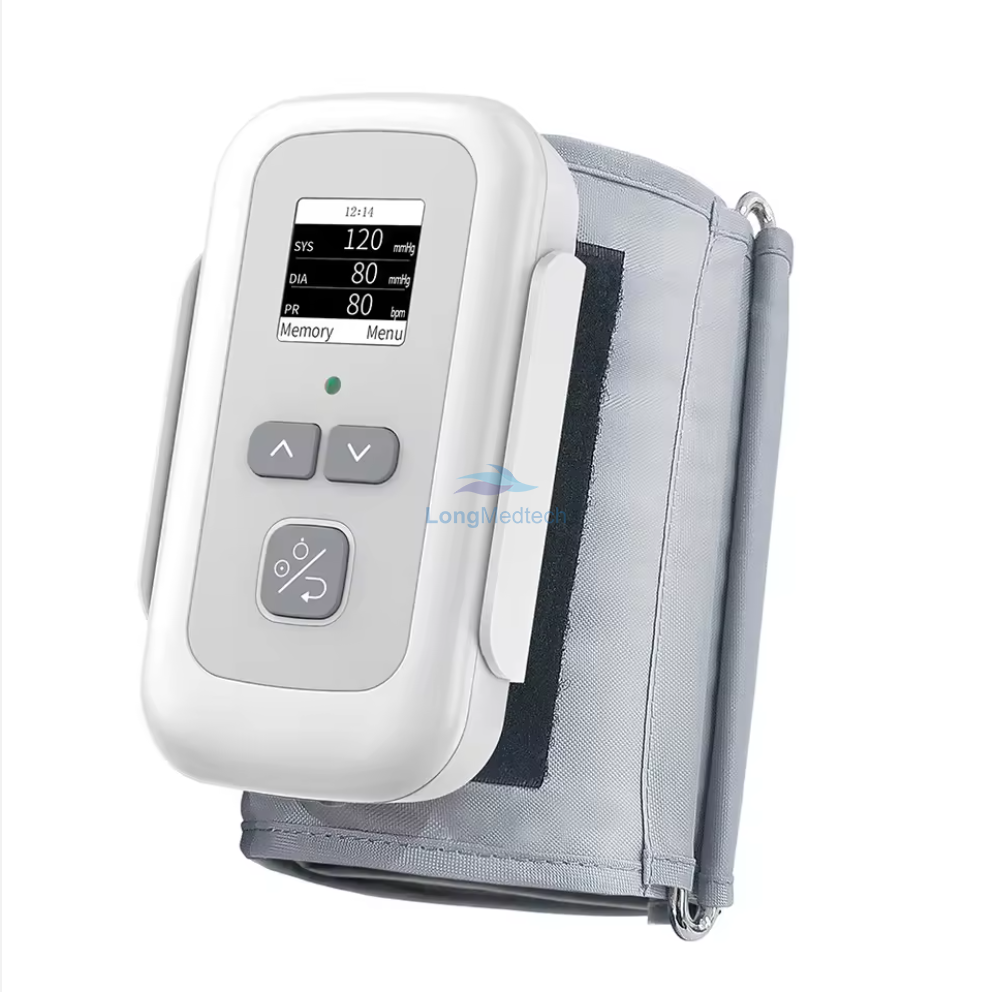

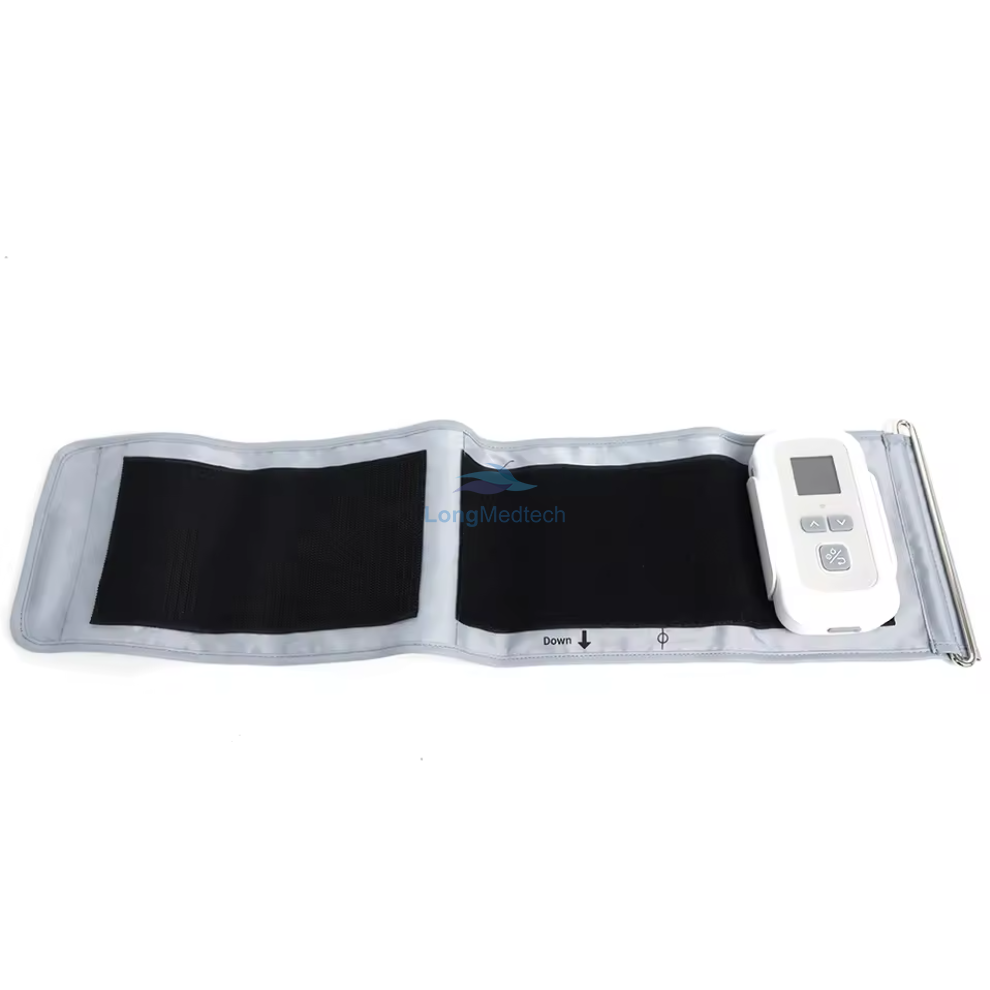

ABPM70 Blood Pressure Monitor

• Compact and portable design, friendly and beautiful interface,easyto use.

• Be applicable for adults.

• 24-hour ambulatory blood pressure monitoring, manual and au-tomatic modes are available, up to 500 groups of data can be re-corded.

• 1.3" HD color LCD screen, strong in visibility.With data review function, the measurement time, SYS and DIAcan be recorded in detail, convenient to observe.Display of multiple information, including countdown time,low-battery, error information and time.Unit:mmHg/kPa

• Interface language: Chinese/ English.Arechargeable and detachable lithium battery is adopted.Over-limit prompt function for parameters, and the prompt tonecan be turned on/off.

• Bluetooth transmission.

• Communicate with PC, achieving multiple functions, such asdata review, result analysis, trend chart observation and reportprinting.

PC software:

• It can be connected to this device by the USB interface. The measurement results can be downloaded from this device.

• Display of dipper blood pressure curve, color-filling chart, histo-gram, pie chart, fitted curve and other charts.

• Each NIBP data can be edited, and annotation can be added.

• Some information (such as basic information, doctor's advice,NIBP status description and current medicine-taken information)can be edited.

• Support report printing and print preview functions.

Performance

NIBP:Measurement method: OscillometryMeasurement mode: upper armMeasurement interval in AUTO mode: 5,10, 15, 20,30, 40, 60, 90,120, 180, 240 minutesMeasurement range: 0 kPa (0 mmHg) ~ 40 kPa (300 mmHg)Resolution: 1 mmHgAccuracy:+3 mmHgOver-limit prompt parameters: SYS, DIAInflation: automatic inflation by a force pumpDeflation: automatic multistep deflation

PR:

Measurement range: 40 bpm~ 240 bpm

Resolution: 1 bpm

Safety:

Power supply: DC 3.7V (a lithium battery)Safety class: internally powered equipment, defibrillation-prooftype BF applied partWaterproof degree: IP22

Accessories

An adult cuff

AUSBcable

APCsoftware

AUser Manual

Lithium battery

Adapter (optional)

Physical characteristic

Dimension: 118 (L) X 63 (W) X 27 (H) mm

Weight: 160g (including battery)
