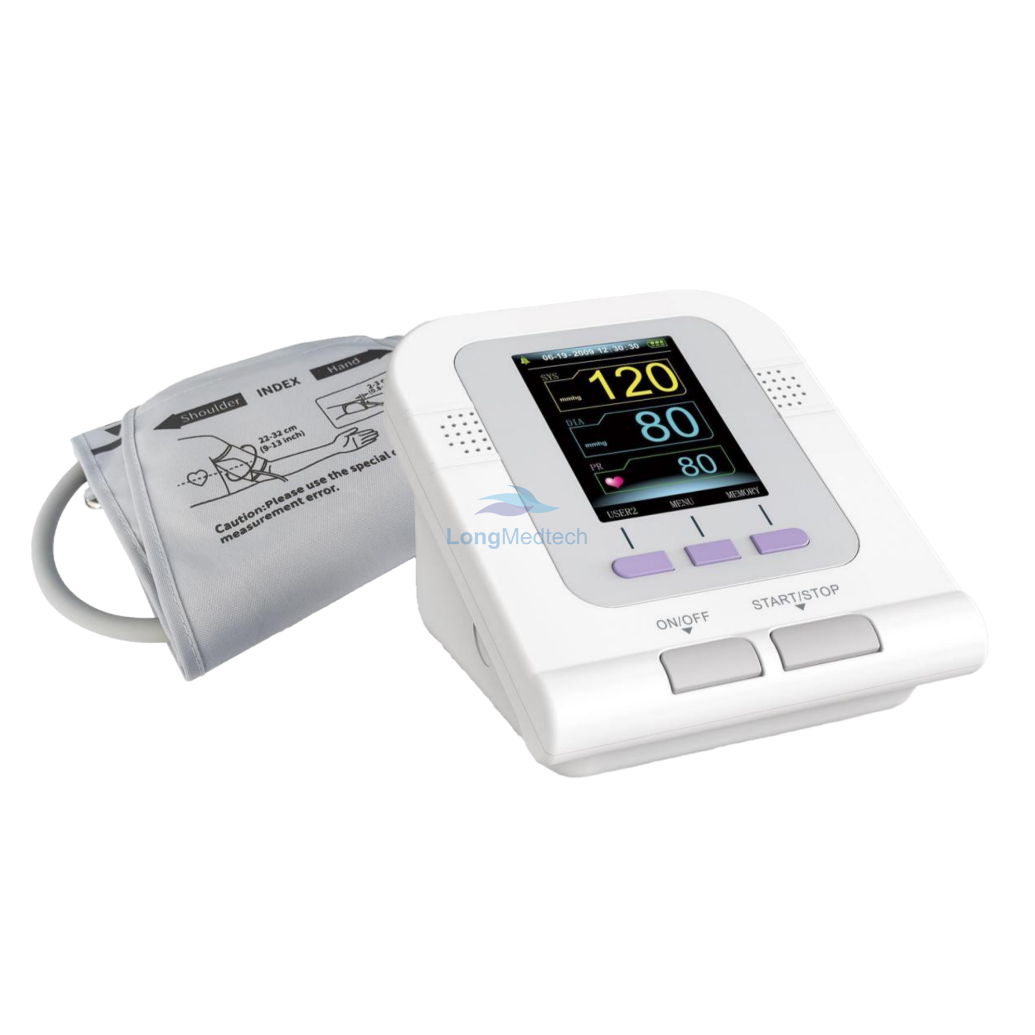

LKT-A8 Electronic Sphygmomanometer

Features

• Full-automatic NIBP measurement.

• Three-user data storage function, and up to 100 records for eachuser can be stored, convenient to use.

• Optional measurement mode: adult, neonatal and pediatric.NIBP data can be clearly checked by the data review interface,such as "data list","trend graph","big font" interface, etc.With SpO, measurement function(SpO, probe is necessary).Prompt for over-limit, and the upper and lower limit can be set.

• Low-battery indication.

• The device will display corresponding error information whenmeasurementerror appears.

• With short-time power storage function, when replacing the bat-tery, the clock time will not be influenced.

• Optional measurement units: mmHg and kPa.Storage of NIBP measurement results, measurement date and time.With high-resolution color LCD, optional interface languages(Simplified Chinese, Traditional Chinese ,English and Italian),strong in visuality.

• Communicate with PC, to achieve the functions of data review,result analysis, trend chart observation and report print, etc.Automatic power-off function.

Software function

Connect with the device by the USB interface.

NIBP measurement result of the terminal device can be uploaded.Display trend chart, histogram, pie chart, etc.Each NIBP data can be edited, and annotation can be added to the data.Basic information, doctor advice, NIBP condition, current medicine-takeninformation, etc. can be edited.

With print preview function, report can be printed.

Accessories

• Cuff for adult

• User manual

• USB data line

• SpO2probe (optional)

• Power adapter(optional)

• Cuffs for other size(optional)

Performance

• NIBP

• Measurement method: OscillometryMeasurement mode: upper-arm typeMeasurement range: OkPa(0mmHg)- 38.67kPa(290mmHg)OTC device Measurement range: OkPa(0mmHg)~ 39.6kPa(297mmHg)

• Resolution: 0.1kPa(1mmHg)Accuracy: +0.4kPa(+3mmHg)

• Pulse rate measurement range: 40bpm~240bpmAccuracy: +5 bpm or +5 %, select larger.Inflation: automatic inflation by force pumpDeflation: automatic multistep deflation

• SpO2(optional)

• Measurement range: 0%~100%

• Accuracy: 70%~100%,±2%

• Pulse rate: Measurement range: 30bpm~250bpmResolution:1bpm

• Accuracy: +2 bpm or +2%, select larger.Display: 2.8" color LCD

• Power: four "AA" batteries/5V or 6V power adapterSafety character: class Il, type BF applied part
