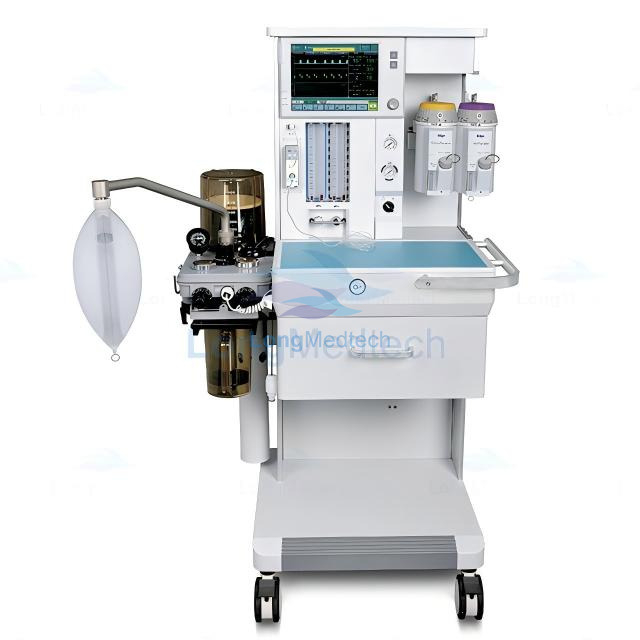

AX-400
Clear and Intuitive User Interface
Large touch control screen design2000 event records of settings, technical and physiologic alarmIntelligent alarm management.
The setting and measured value of ventlation displayed on the same screen helps make the management of gas delivery more safe and effective.
Comprehensive monitoring, multi-selectable displays, e.g. 4 waveforms, anesthesia gas monitoring and big font display.

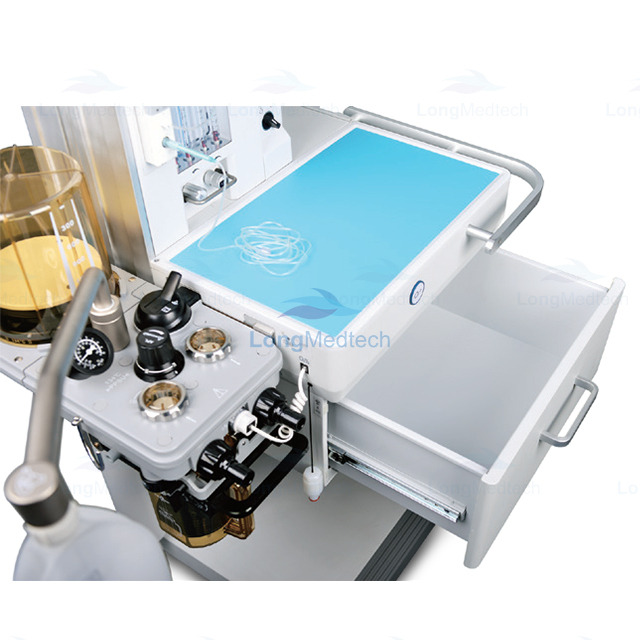

Large workbench
Meet your requirment for space
Roomy Drawer
Make your paperwork and medical articles more systematical
Precise and Reliable Ventilator
Minimum tidal volume down to 5ml
Digital flow valve and precise dual flow sensing technology, more accurate control, faster response.
SIMV/ SIMV + PS help simplify the work of caring for spontaneous breathing patients when weaning.
Advanced PSV Ventilation (with apnea backup) make patients with spontaneous breathing more comfortable
PRVC mode, gives you the best of both worlds: the benefits of pressure controlled ventilation anda consistent tidal volume. More suitable for laparoscopic, thoracoscopic and patients with lung compliance changes.
Automatic compensation maintain accurate tidal volumes, and ensure that what you set is what you get Comprehensive respiratory mechanical parameters monitor, real-time waveforms display, optimizing dinical decision
Electronic PEEP function.
Excellent Breathing Circuit
High integration, small and compact design,greatly reduces the potential for leaks and misconnects.
Material: PPSU, fully autoclavable at 134°C and nature latex free.
By-pass function, available for canister exchange during surgeries.
Easy removal-no tools required,convenient for clean and maintenance.
One hand installation to CO2 canister, fast and healthy.
Faster response-ideal for low flow anesthesia.
Modular Design
BIS / AG/ CO2 module optional.
Automatically identify CO2, N2O and 5 Anesthetic Gases.
Support CO2, N2O, anesthesia gas waveform display, support MAC value display.
Monitoring modules can be shared with our modular monitor, cost effective.
Support real-time O2 concentration monitoring.
BIS value display and EEG waveform display once plug in the BIS module.
Sample gas conncet with AGSS port design.
Mechanical Flowmeter
Individual flow controls with dual flow tubes providesimple, precise control, facilitate easy and accurateminimal / low flow anesthesia.
3 gas with 6 tubes flowmeter optional.

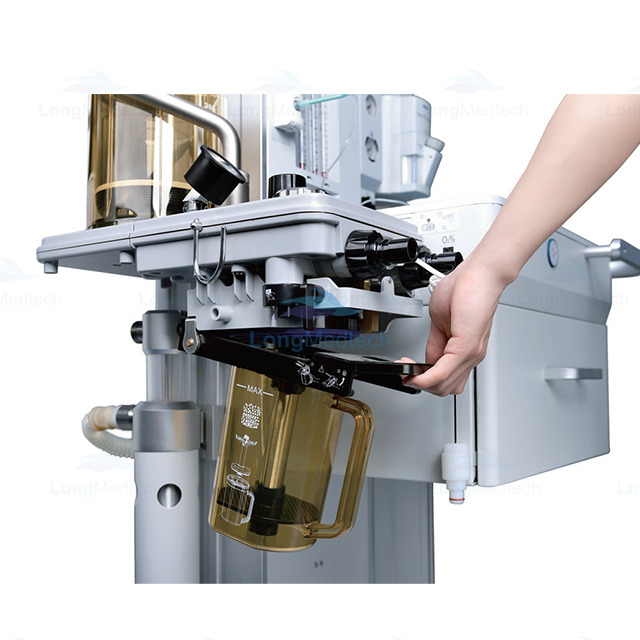

One-hand Installation CO2 Absorber Canister
Support replacing the CO2 absorber during operation
AGSS, Effective Removal of Anesthesia Gas from the Working Area (Optional)
We know anesthetic gas is harmful to us, e.g. causing nausea,dizziness, headaches, fatigue, and irritability, as well as sterility,miscarriages, birth defects, cancer, liver and kidney disease.
Anesthesia waste gas in the operating room is always plaguingthe construction of laminar flow operating room.
In order to better protect the health of workers and solve thepollution in the laminar flow operating room, Comen adopts theleading technology in this field and has developed a closed-type active scavenging system, and solve your worries.
