Dimension:340mm(L)×320mm(W)×85mm(H) Net weight:3.2Kg

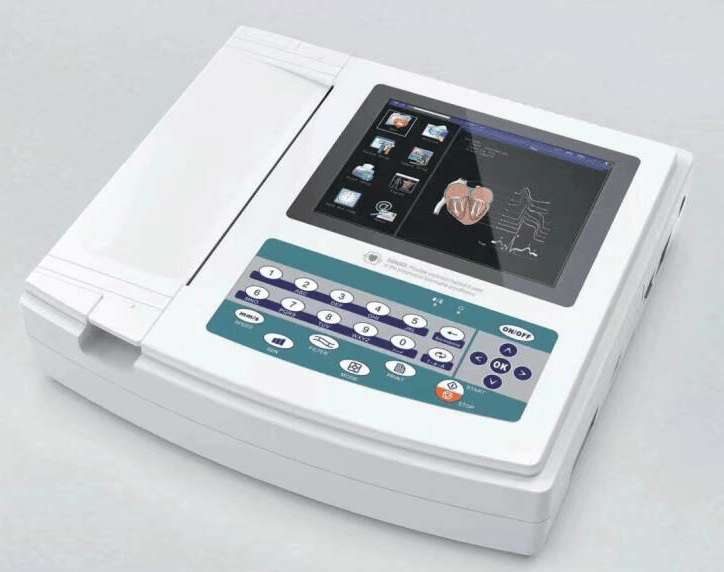

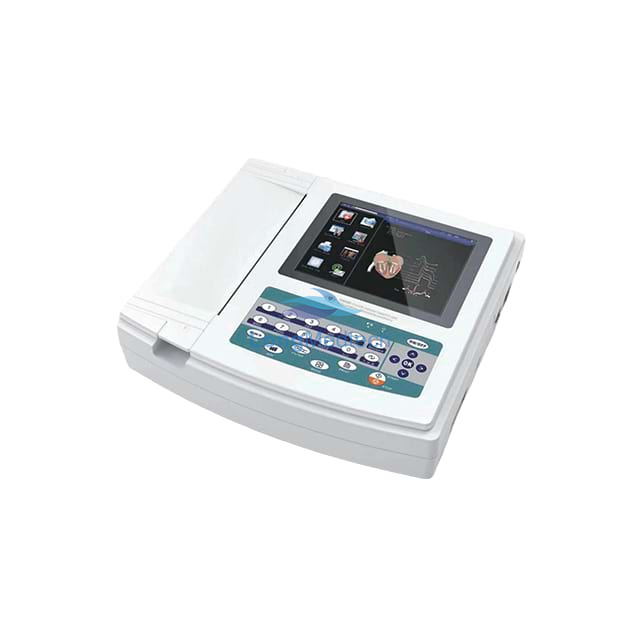

ECG1200G Electocardiograph
ECG1200G is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in,recording and displaying ECG waveform in AUTO/Manual mode,measuring and diagnosing ECG waveform parameters automatically,prompting for"Lead off"and "Lack of paper",multi-language interface,AC/DC,selecting rhythm lead,printing the trend chart and histogram of RR interval that convenient to observe abnormal heart rhythm,case database management,button operation and touch screen function,etc.
Function
Sync collection for 12-lead ECG,adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter,baseline filter and EMG filter of ECG signal.
3/6/12-lead ECG waveform and other information such as print mode,sensitivity,paper speed,filter can be displayed in one screen,convenient for contrastive diagnosis.
Multiply printing modes and formats,including auto 12x1,auto 6x2+1(rhythm lead),auto 6x2,auto 3x4+2(rhythm lead),rhythm 12,rhythm 10,rhythm 8,rhythm 6,manual,etc. Trend chart and histogram of RR interval can be printed,waveform length printed can be adjusted,and with time print function,which meets different requirements.
Paper speed:5mm/s,6.25mm/s,10mm/s,12.5mm/s,25mm/s,50mm/s.
With the functions of auto-analysis and auto-diagnosis for routine ECG parameters,provide measurement results and auto-diagnosis conclusion for HR,P-R interval,P Duration,QRS Duration,Q-T interval,Q-Tc,P Axis,QRS Axis,T Axis,R(V5),S(V1),R(V5)+S(V1),etc. ,which reduces the doctor's burden.
Built-in large capacity memory,convenient for case review and statistic.
Multi-language(Chinese,English,Turkish,Portuguese,German,Russian,Kazakh and other languages)interface and report.
In optimal DC state,up to 10-hour standby time,continuous print more than 3-hour,which meets the requirements of visiting a patient at home and body examination.
