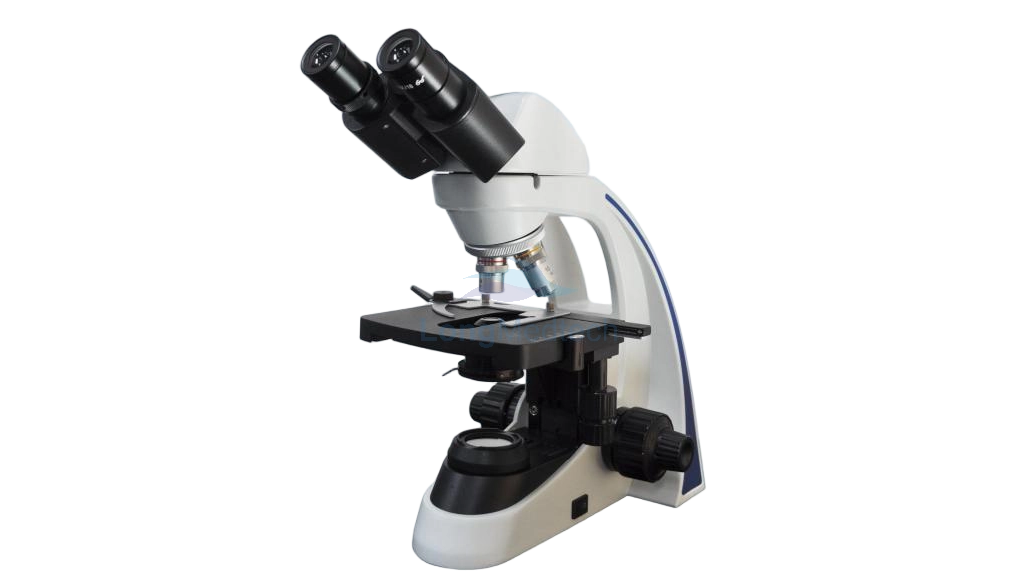

When it comes to routine clinical lab work such as examining blood smears, urine sediments, microbiological smears and tissue preparations, choosing a cost- effective yet dependable biological microscope matters a lot. Today we are taking a closer look at the ML11 binocular / trinocular biological microscope from Micro- Shot Optical Technology, a practical entry- level model built for day- to- day diagnostic microscopy tasks.
The ML11 delivers bright, crisp images with its well- thought- out optical system. It adopts an ergonomic inclined trinocular head tilted at 30 degrees, with an interpupillary distance adjustable from 50 mm to 75 mm. Single- eye diopter adjustment is provided to compensate for differences in users’ eyesight. A fixed 80:20 light- splitting ratio (optional) makes it convenient for direct camera connection when documentation of microscopic slides is required.
This unit comes with standard achromatic objectives: 4X /0.10, 10X /0.25 and 100X oil- immersion 1.25. Infinity plan achromatic objectives are available as an upgrade option for users demanding flatter, higher- quality fields of view. A quadruple inward- tilt nosepiece holds objectives securely for smooth objective switching during sample observation.
For illumination, a high- performance 3 W LED light source is pre- centred, with continuously adjustable brightness. It produces stable transmitted light ideal for haematology, bacteriology and wet- mount specimen review. An Abbe condenser with N.A.1.25 is fitted, complete with an adjustable aperture diaphragm plus blue, yellow and green filter sets to optimise contrast for different stained clinical slides.
The ML11 is equipped with a double- layer mechanical stage. Coaxial low- position coarse- fine focusing knobs include a limit stopper and locking device to prevent objective- to- slide collision, a critical feature for busy clinical laboratories. Coarse focusing stroke reaches 25 mm for fast sample positioning, while fine focusing delivers precise incremental movement for sharp image focusing.
Power flexibility is one of its highlights. An external wide- voltage AC adapter supports 100- 240 V, 50/60 Hz global power input, perfectly matching power environments across many countries. A solar power bank is offered as an optional add- on, which is extremely valuable for field diagnostic work or locations with unstable mains power.
This entry- level microscope fits multiple usage scenarios:
· Hospital clinical laboratories: blood film review, urine sediment analysis, Ziehl- Neelsen sputum smear reading and general microbiology specimen screening.
· Educational laboratories: teaching practical microscopy skills for biomedical students.
· Field diagnostic projects: paired with the optional solar power bank for mobile sample examination in resource- limited regions.
You do not always need premium high- end microscopes to complete standard diagnostic microscopy work. The Micro- Shot ML11 biological microscope balances solid optical performance, user- friendly mechanical operation and flexible power options at an entry- level price point. Whether you are upgrading lab equipment for a hospital diagnostic project or sourcing teaching- grade biological microscopes, the ML11 is definitely a product worth evaluating.
