An incentive spirometer (or respiratory trainer) is a medical and rehabilitative device designed to strengthen respiratory muscles, improve vital capacity, and prevent pulmonary complications.
Main Types
• Inspiratory Muscle Trainer (IMT): Uses adjustable resistance to enhance the strength and endurance of inspiratory muscles, such as the diaphragm and intercostal muscles.
• Expiratory Trainer / Oscillatory PEP (Positive Expiratory Pressure) Device: Utilizes positive pressure or physical vibration during exhalation to help open airways, loosen mucus, and facilitate its clearance.

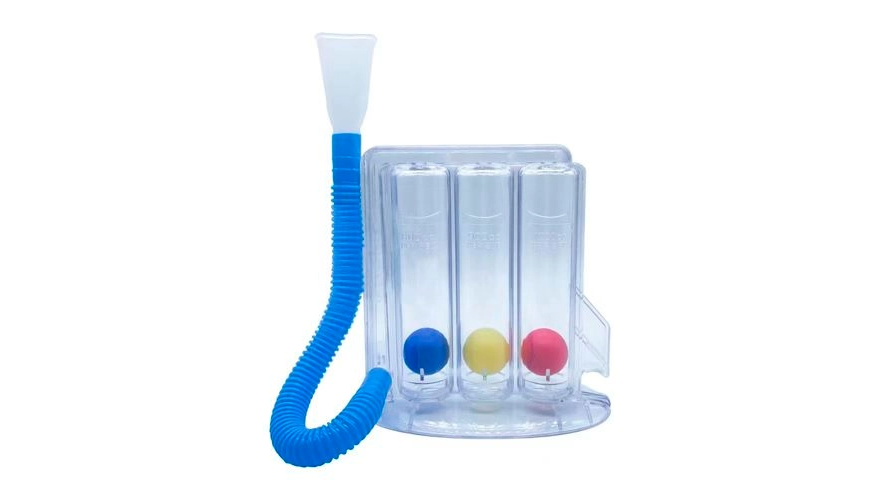

• Three-Ball (Flow-Based) Incentive Spirometer: The most common type, featuring three chambers with different volume/flow thresholds (typically marked as 600, 900, and 1200 ml/s). Patients inhale forcefully to lift the balls, providing visual feedback that encourages lung expansion.
Target Users
• Postoperative Rehabilitation: Patients recovering from thoracic or upper abdominal surgery; used to counteract shallow breathing caused by postoperative pain and to prevent atelectasis (lung collapse) and pulmonary infections.
• Respiratory Conditions: Individuals with conditions such as Chronic Obstructive Pulmonary Disease (COPD) or asthma who need to improve their ventilatory function.
• Long-term Bedridden or Frail Individuals: People with weakened respiratory muscles who need to increase their vital capacity and endurance.
Basic Instructions for Using a Three-Ball Incentive Spirometer
1. Posture: Sit upright or in a semi-reclined position.
2. Preparation: Breathe calmly, place the mouthpiece firmly between your lips, and exhale completely.
3. Inhalation: Inhale slowly and deeply through your mouth to lift the balls, attempting to keep them suspended in the air for a period of time.
4. Frequency: Perform 3–5 inhalations per session; repeat several times throughout the day (e.g., in the morning, at midday, in the evening, and before bedtime).
5. Completion: Remove the mouthpiece, exhale slowly, and take a few normal breaths to avoid dizziness caused by hyperventilation.
