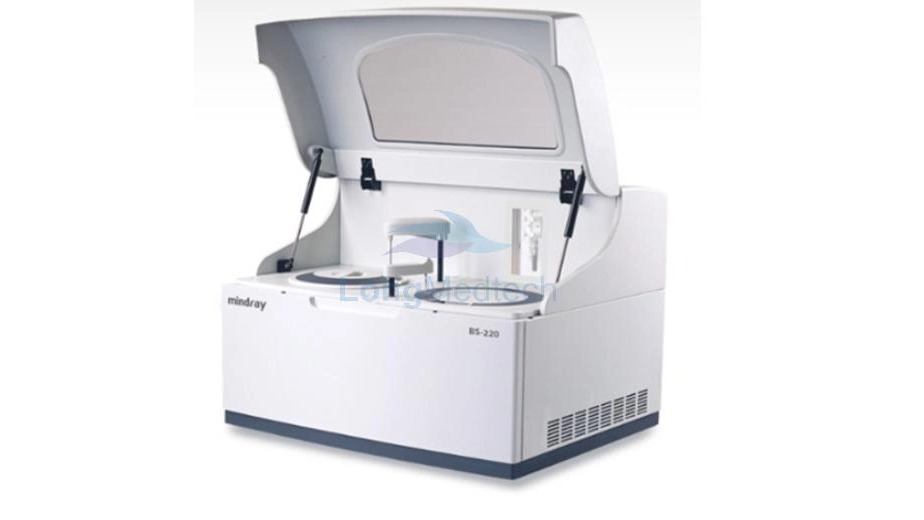

Fully Automated Chemical Analyzer

The fully automated chemical analyzer (also known as a fully automated clinical chemistry analyzer) is a core piece of equipment in modern medical laboratories, capable of fully automating the analysis of body fluid components from sample loading to result generation.

I. Working Principle

Fully automated chemical analyzers primarily utilize spectrophotometry (the principle of photoelectric colorimetry). They calculate the concentration of a target substance by measuring changes in absorbance as light of a specific wavelength passes through the reaction solution. The core process involves:

1. Sample Loading and Mixing: Automatically aspirating a precise volume of sample (serum, plasma, urine, etc.) and matching reagents, then dispensing them into a reaction cuvette for non-contact or mechanical mixing.

2. Constant-Temperature Reaction: Facilitating a chemical reaction between the sample and reagents within a constant-temperature bath to produce substances with specific light-absorbing characteristics.

3. Colorimetric Detection: An optical system (comprising a light source, monochromator, and detector) directs light of a specific wavelength at the reaction solution to measure absorbance.

4. Data Processing: An internal computer automatically calculates concentration or enzyme activity results based on the Beer-Lambert Law and prints the report.

II. Role in Medicine

• Error Reduction: The entire process is automated by the machine, eliminating subjective errors and systematic biases associated with manual operation, thereby ensuring accurate results.

• High Efficiency and Speed: Capable of high-throughput testing, processing hundreds of samples in a short time, which significantly boosts efficiency for both emergency and routine testing.

• Quality Control: Features automatic calibration, anomaly alerts, and quality control management functions to ensure the stability and reliability of testing quality.

III. Key Applications

• Disease Diagnosis: Measuring indicators such as liver function (ALT, AST), renal function (creatinine, blood urea nitrogen), blood glucose, blood lipids, and myocardial enzyme profiles to diagnose conditions like liver disease, kidney disease, diabetes, and myocardial infarction.

• Treatment Monitoring: Evaluating the effectiveness of clinical treatment regimens and dynamically monitoring the progression of a patient's condition.

• Prognosis and Health Assessment: Providing reliable biochemical data to support prognostic assessments and routine health check-ups.
