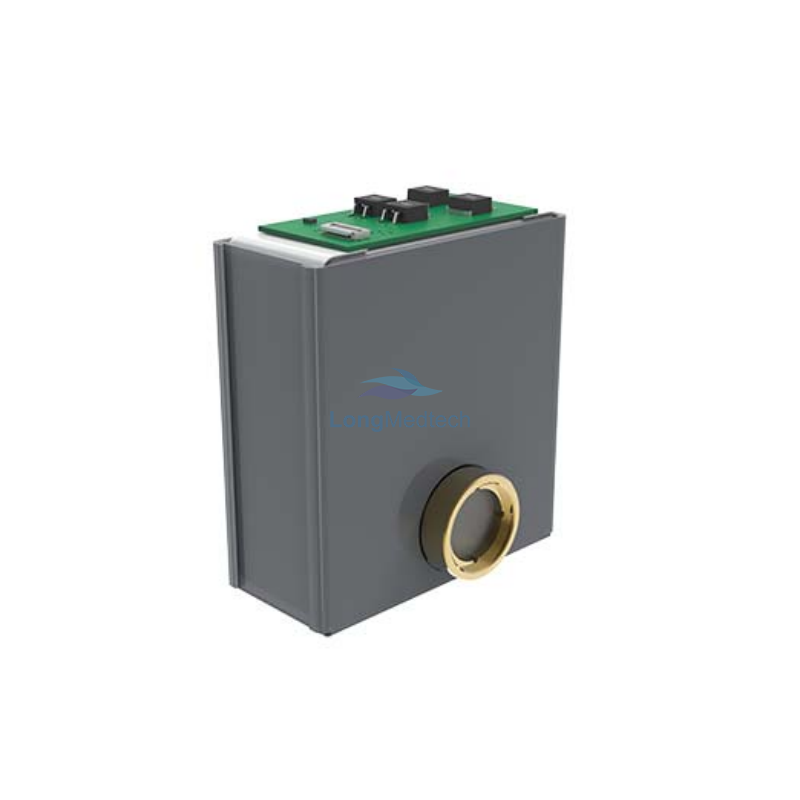

Gemini 08
Gemini 08 is an x-ray source subsystem that consists of a 770W tube head, high frequency inverter and a single phase power supply system. Featured with compact size, wide beam angle and dedicated dual energy exposure mode, it is ideally suited for Bone age and Bone densitometry applications.
Features
Compact solution with a fixed anode tube
Large target angle, wide beam coverage under small SID
High frequency inverter and small size
Support Dual Energy function
RS232 serial communication interface
Ideally suited for integration with flat panel X-ray detectors
Technical Parameters
| Gemini 08 | |||
| Basic | |||
| Nominal power | 770W | ||
| kV | 40-70 | ||
| mA | 0.2-11 | ||
| Dual energy exposure mode | |||
| Mechanical | |||
| Tank Dimension(mm) | 122 x 108 x 59 | ||
| Tank Weight(kg) | 1.3 | ||
| Inverter Dimension(mm) | 150 × 100 × 30 | ||
| AC/DC Module Dimension(mm) | 190 × 127 × 40 | ||
| Electrical | |||
| Tube Voltage Ripple | ＜5% (RMS) | ||
| Tube Voltage Accuracy | ± 10% | ||
| Tube Voltage Rising Time (ms) | 5 | ||
| Tube Current Accuracy | ± 10% | ||
| Power supply | |||
| Mains Input | 1Φ, 90~264VAC, 47-63 Hz | ||
| X-ray tube | |||
| Focal spot size | 0.8 | ||
| Anode target angle | 20° | ||
| Total equivalent filter | 1.0mm Al | ||
| Communication | |||
| Interface | RS232 | ||
| Software | GUI service tool | ||
| Thermal | |||
| Max. Tank Heat Storage | 6 kHU/4.5kJ | ||
| Tank Heat Dissipation(W) | 15 | ||
| Environmental | |||
| Operating Temperature (℃) | 0 ~ 40 | ||
| Storage & Transportation(℃) | -20 ~ 70 | ||
| Operating Humidity | 5% ~ 95% RH (Non-condensing) | ||
| Storage & Transportation | 5% ~ 95% RH (Non-condensing) | ||
