Gemini 5

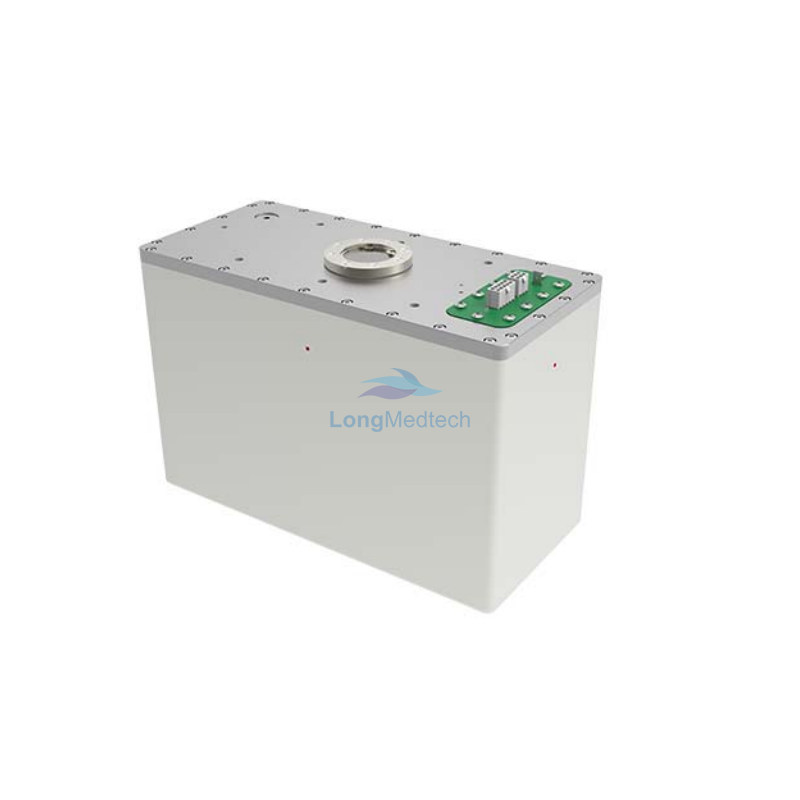

Gemini 5 is 5 kW X-ray solution with a rotating anode X-Ray tube, designed for mobile C-arm applications. In addition to providing continuous X-ray for fluoroscopy and fixed pulse-width exposures for radiography, it supports up to 30 fps X-ray pulses for easy integration with dynamic flat panel detectors.
Features
Compact solution with integrated rotating anode tube
Oil tank integrating X-ray tube and high voltage components
Multiple tube insert configuration
High frequency inverter
30fps pulsed and continuous mode
RS232/CAN serial communication interface
Window based service GUI tool
| Gemini 5 | |||
| Basic | |||
| Nominal power | 5kW | ||
| kV | 40-125 | ||
| mA | 0.1-100 | ||
| Pulsed exposure(fps) | 30 | ||
| Mechanical | |||
| Tank Dimension(mm) | 330 × 152 × 230 | ||
| Tank Weight(kg) | 20.2 | ||
| Inverter Dimension(mm) | 353 × 315 × 129 | ||
| Inverter Weight(kg) | 9.3 | ||
| Electrical | |||
| Tube Voltage Ripple | ＜1% (RMS) | ||
| Tube Voltage Accuracy | ± 5% | ||
| Tube Voltage Rising Time (ms) | 1 | ||
| Tube Current Accuracy | ± 5% | ||
| Power supply | |||
| Mains Input | 1Φ,190 -264VAC / 50 ~ 60 Hz;16A | ||
| Auxiliary Input | 24 VDC | ||
| X-ray tube | |||
| Focal spot size | 0.3/0.6 | ||
| Anode target angle | 10° | ||
| Total equivalent filter | 2.7mm Al | ||
| Communication | |||
| Interface | RS232/CAN | ||
| Software | GUI service tool | ||
| Thermal | |||
| Max. Tank Heat Storage | 1200 kHU / 900 kJ | ||
| Tank Heat Dissipation(W) | 150 | ||
| Environmental | |||
| Operating Temperature (℃) | 0 ~ 40 | ||
| Storage & Transportation Temperature (℃) | -20 ~ 70 | ||
| Operating Humidity(Non-condensing) | 5-95 | ||
| Storage & Transportation Humidity (Non-condensing) | 5-95 | ||
