Function features
Microprocessor based servo controlled temperature system
The microprocessor-controlled unit allows for three modes:pre-warm,manual and automatic
APGAR timer to record therapy time
Audible and visual Alarm functions：
Power failure,temperature deviation,temperature sensor failure,skin temperature failure,over temperature
LED observation light adjustable,brightness adjustable
Heater head can be adjusted±90°horizontally
Convenient X-ray cassette board under infant bed
Tilt angle of infant bed is adjustable
Four Transparent protector folded with 2 infusion seals
With RS-232 connector,2 trays and 2 drawers
Technical data
Power supply | AC110/220V 60/50Hz | |
Power input | 1000VA | |
Operating conditions | Environment temperature | 18℃ ~ 30℃ |
Environment relative humidity | 30％~75％ | |
Atmospheric Pressure | 700 ~ 1060hpa | |
Environment air velocity of flow | ＜0.3m/s | |
Skin Temperature control range | 23℃ ~ 38℃ | |
Skin temperature control accuracy | ≤0.5℃ | |
Skin temperature sensor accuracy | ±0.3℃ | |
Mattress temperature uniformity | ＜2℃ | |
Infant Bed tilt angle | ±10° | |
LED observation light function | 3W | |
Warm-up time(from 25℃) | ＜30min | |
Heater head horizontal | ±90° | |
Distance from heater to mattress | 80cm | |
Mattress size | 67cmX54cm | |
Timer range | 0 ~ 99h59min | |
Transport and storage
Package | |
Each unit is packed one plywood case | |
Size:118*90*87cm | |
N.W.:75Kg G.W.:100Kg | |
Transport and storage | |
Environment temperature | -40°℃~+550 |
Environment relative humidity | ≤95% |
Atmospheric Pressure | 500~1060hpa |
Standard configuration
Main body (including the Radiant source,Control system,Infant bed,Bracket),X-ray cassette, Observe light,I.V.pole,Skin temperature sensor, Tray,Mattress,Transparent protector,Castors, Drawers.

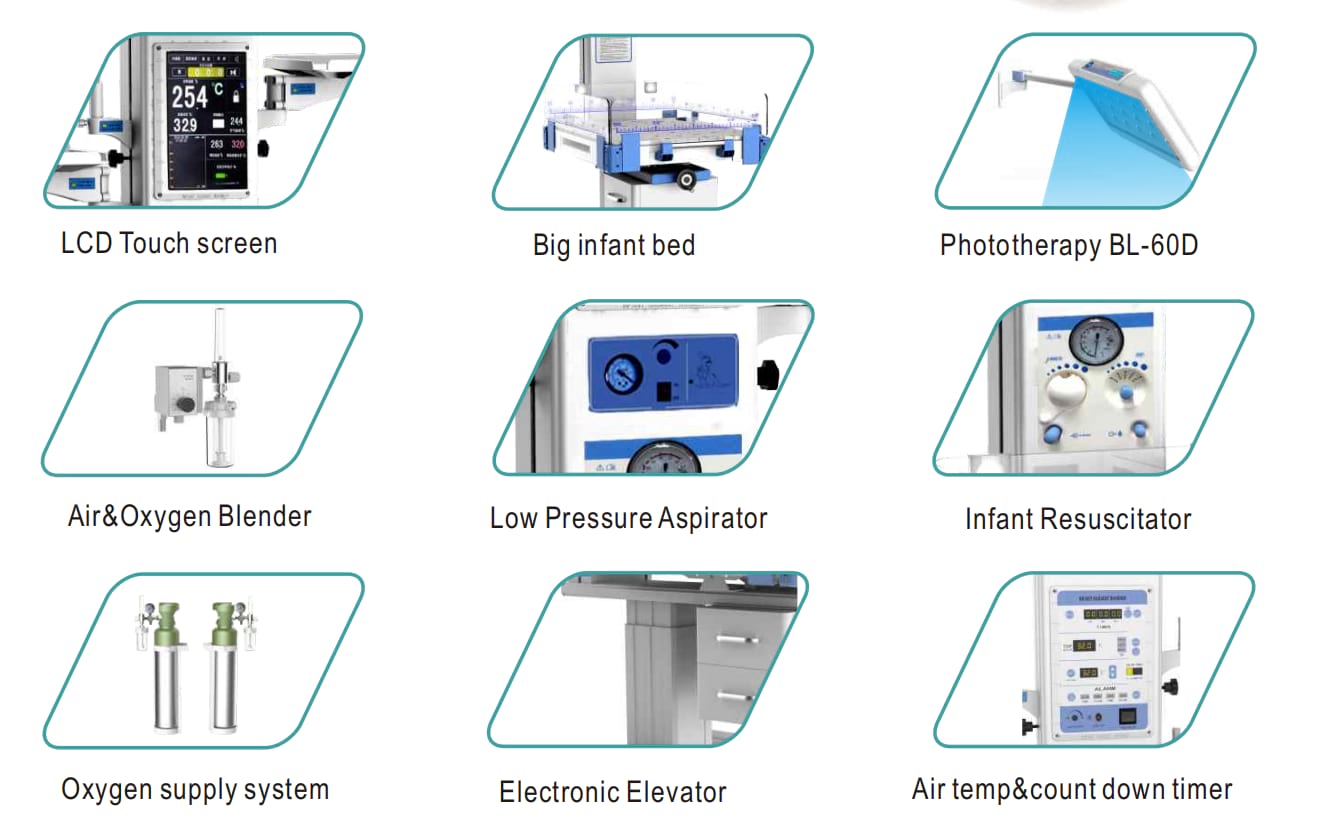

Optional functions
