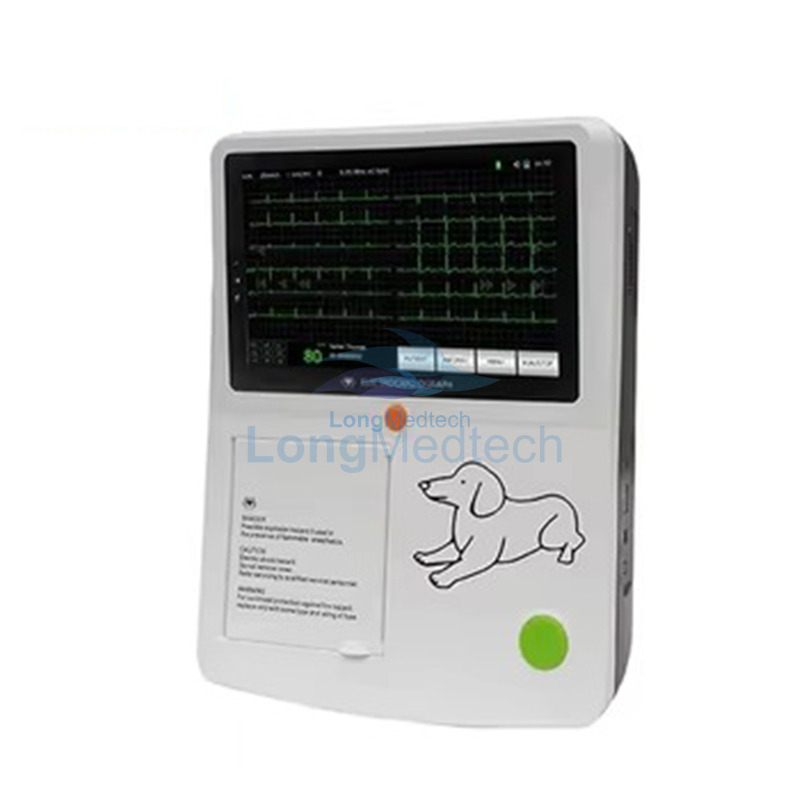

LE-300
1. 3 channel electrocardiograph.
2. 7 lead ECG signal simultaneously and print ECG waveform with thermal printing system.
3. 7 Inch screen, color display with Thermal Printing System.
4. Recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.
5. Widely use in animal hospitals and clinics.
| CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mv+3% |
| Input circuit | Floating | Voltage tolerance | ± 500mV |
| Input circuit current | ≤0.1μA | Time constant | > 3.2s |
| Resolution | 12bit/1000Hz | Frequentresponse | 0.05Hz~150Hz |
| Operation mode | Manual/Auto | Noise level | ≤ 15μ Vp-p |
| Filter | AC. EMG Filter | Threshold | ≤ 20μV |
| Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (±3%) |
| Input Impedance | >50MΩ | Sensitivity | 5, 10, 20mm/mV |
| Patient current leakage | < 10μA | Recorder | High resolution thermal printer |
| Specification of fuse | T1.6A 250V ∅5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
| Recording paper | Thermal recording paper | Product size | 256mm* 204mm *66mm |
