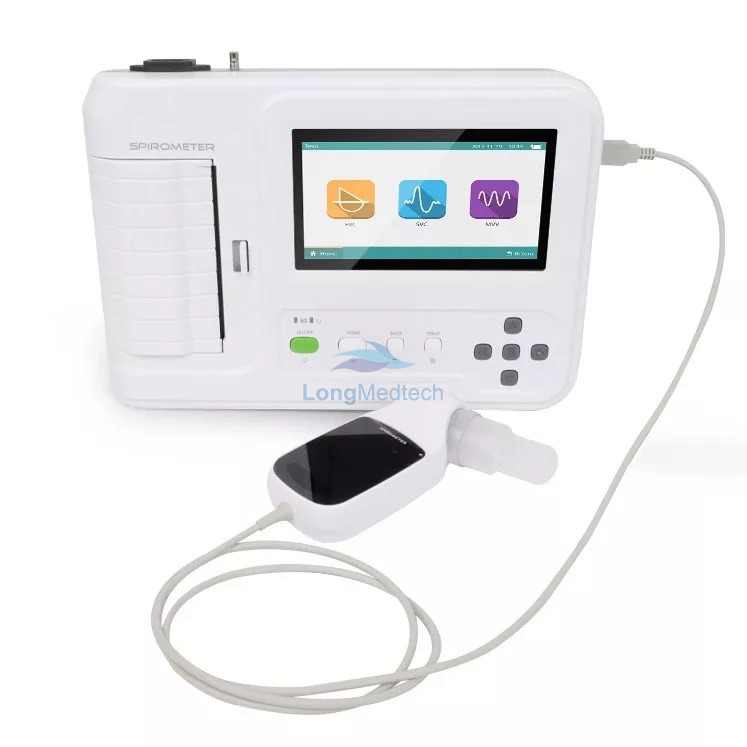

Features:
Measurement of Forced Vital Capacity (FVC), Vital Capacity(VC/SVC), maximum voluntary ventilation (MW) and relevantfunctions, more than 50 parameters can be measured and dis-played; for several times of measurement, the optimal result willbe displayed; the condition of subject can be shown by the ratioof the measured value and the predicted value.Measurement parameters:
Forced Vital Capacity(FVC):FVC,FEV1,PEF,(FEV1/FVC),FEF25,FEF50,FEF75,FEF2575,FEV6,FEV1/FEV6,ELA,FET,EVOL,FIVC,FIV1,FIV1/FIVC,PIF,MW,etc.
Vital Capacity (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE,RR,tl,tE, TV/tl,tl/ttot
Maximum Ventilatory Volume(MW):MW
Real-time display respiration waveform:Flow-Volume loop andVolume-Time curve chart;
7" color LCD touch screen,buttons can be operated along withtouch screen;
Incentive animation operation guide,easy for the use betweenchildren and the old;
Built-in thermal printer, reports can be printed directly;BTPS automatic correction function, compensate for the impactof environmental differences;Test time and environment temperature display;Calibration function,ensure measurement accuracy; Multiple predicted value can be selected, suitable for differentpopulation;
Storage of more than 10,000 groups of data;
Lung age estimation function;
Built-in lithium battery, supports both of AC and DC.
Performance:
Volume range:0~10 L(FVC)
Volume accuracy:3% or 0.05 L(whichever is greater)
Flow Range: 0~16 L/s
Flow accuracy:5% or 0.2 L/s (whichever is greater)Power supply:100 V-240 V~ 50 Hz/60 Hz
Input power:60 VA
Safety type: Class I equipment,type BF applied partLCD screen:7"color TFT touch screen
Printing paper:112 mm(W)x20m(L)high-speed thermal paper
Accessories
Spirometer lpc
nose clip lpc
Mouthpiece 4pcs(disposable accessory)
Recording paper lpc
Power cord 1pcUser Manual lpcbreathing filter (disposable accessory)
Physical characteristic:
Dimension:315mm(L)x215 mm(W)x92mm(H)
Weight:1.8 kg
