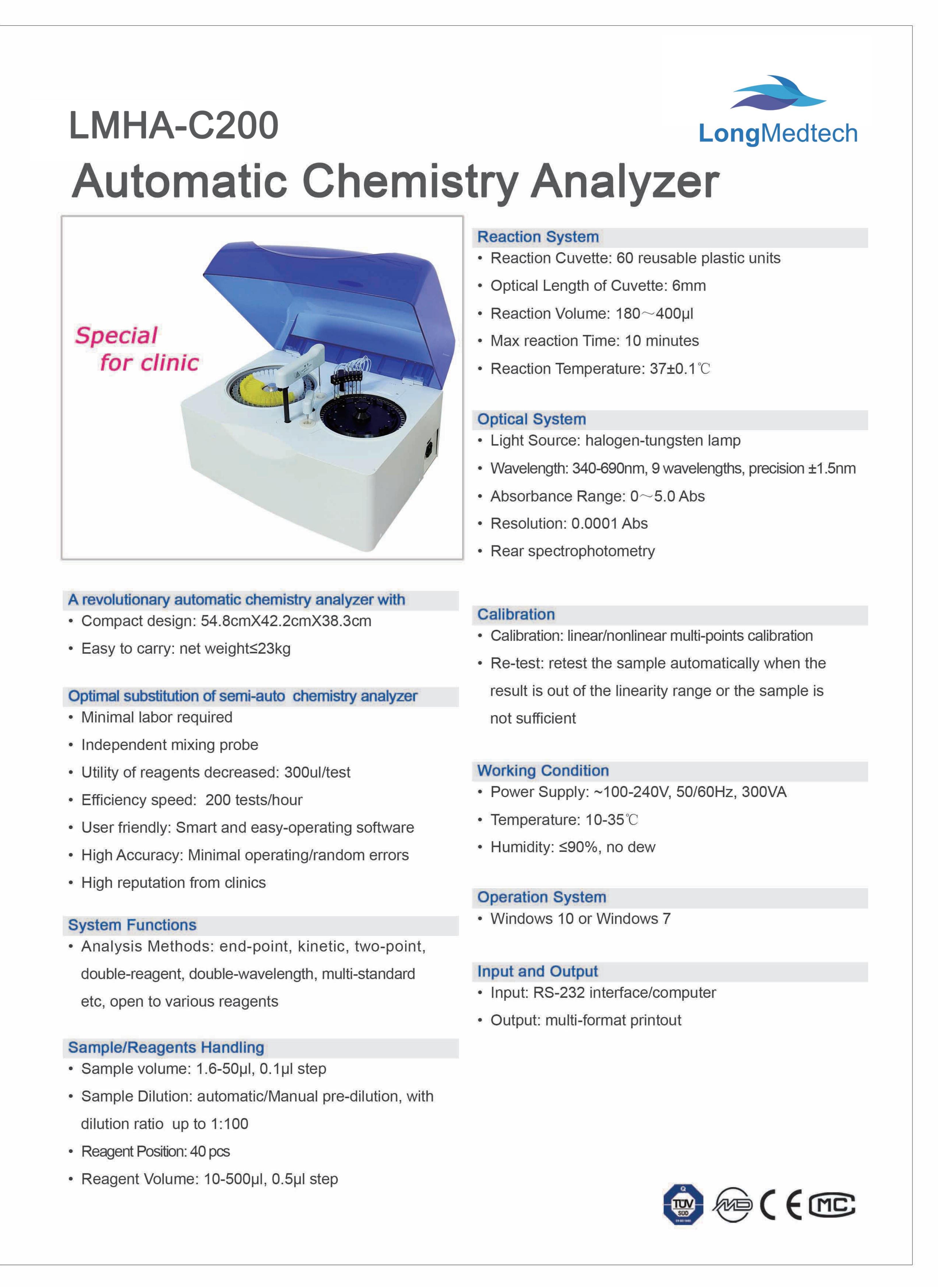

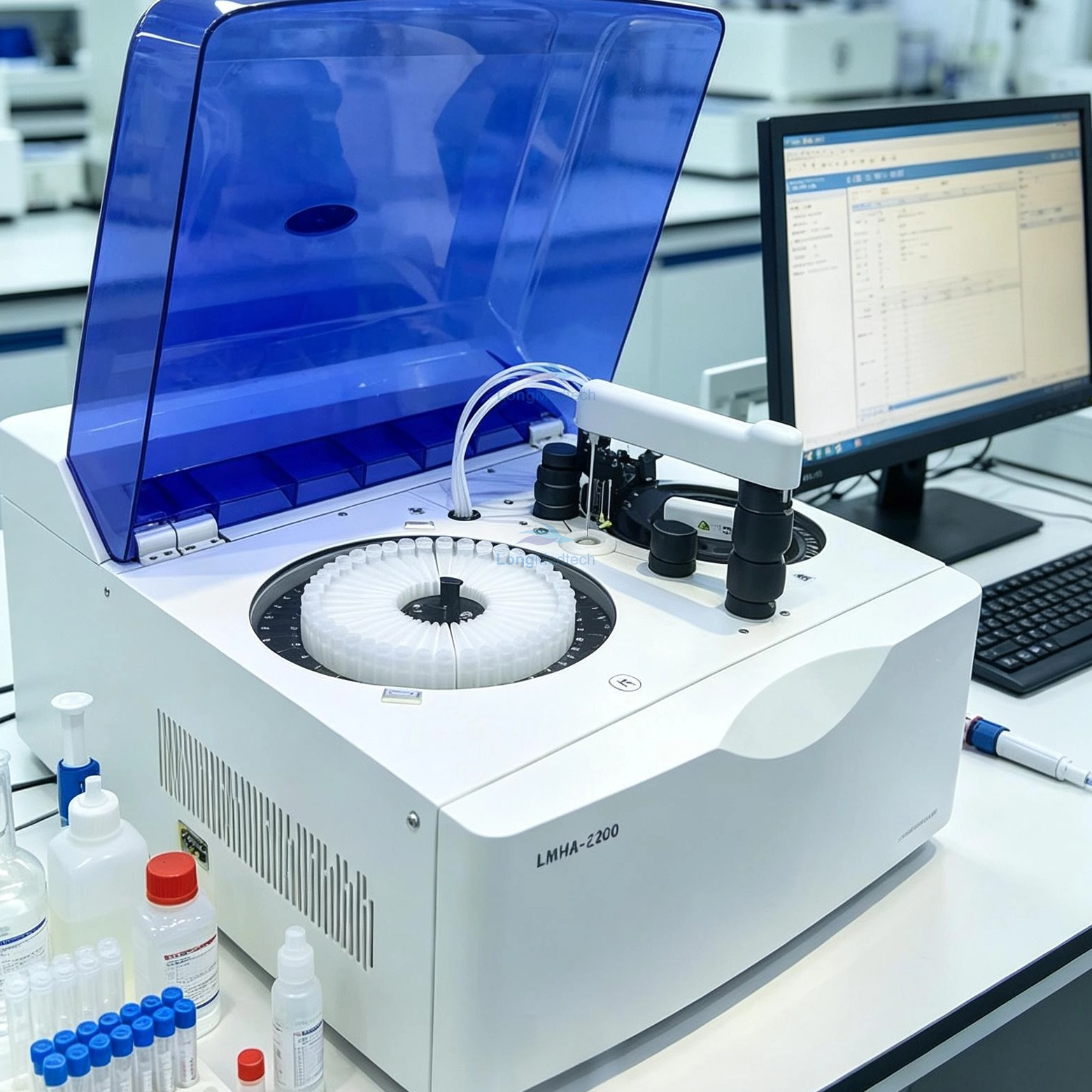

LMHA-C200 Automatic Biochemistry Analyzer

Reaction System
· Reaction Cuvette: 60 reusable plastic units

· Optical Length of Cuvette: 6mm

· Reaction Volume: 180~400ul

· Max reaction Time: 10 minutes

· Reaction Temperature: 37+0.1°C

Optical System

· Light Source: halogen-tungsten lamp

· Wavelength: 340-690nm, 9 wavelengths, precision 1.5nm

· Absorbance Range: 0--5.0 Abs

· Resolution: 0.0001 Abs

· Rear spectrophotometry

Calibration

· Calibration: linearinonlinear multi-points calibration

· Re-test: retest the sample automatically when the result is out of the linearity range or the sample is not sufficient

Optimal substitution of semi-auto chemistry analyzer

· Minimal labor required

· Independent mixing probe

· Utility of reagents decreased: 300ul/test

· Efficiency speed: 200 tests/hour

· User friendly: Smart and easy-operating software

· High Accuracy: Minimal operating/random errors

· High reputation from clinics

A revolutionary automatic chemistry analyzer with

· Compact design:54.8cmX42.2cmX38.3cm

· Easy to carry: net weights23kg
